TT132L-TEMDSW (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
3T
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809- )

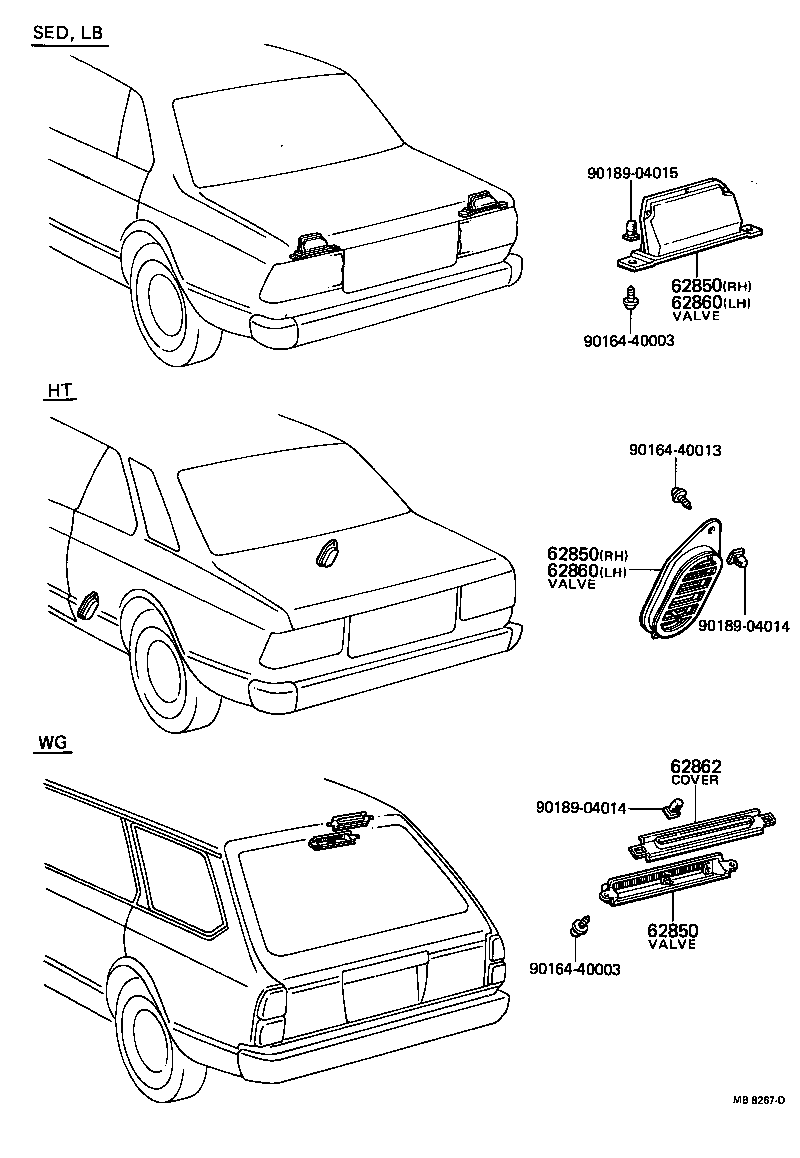

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH | ||||
| 62850-20010 |
RT13#,TT13#,XT130..LB,SED |
1 | ||
| 62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH | ||||
| 62850-20010 |
RT13#,TT13#,XT130..LB,SED |
1 | ||
| 62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH | ||||
| 62850-20010 |
RT13#,TT13#,XT130..LB,SED |
1 | ||
| 62860 - VALVE ASSY, ROOM PRESSURE RELIEF, LH | ||||
| 62850-20010 |
RT13#,TT13#,XT130..LB,SED |
1 | ||
| 62860 - VALVE ASSY, ROOM PRESSURE RELIEF, LH | ||||
| 62850-20010 |
RT13#,TT13#,XT130..LB,SED |
1 | ||
| Common parts | ||||
| 90164-40003 | ||||
| 90164-40013 | ||||
| 90189-04014 | ||||
| 90189-04015 | ||||
