TT132L-TEKRS (1978)
Toyota Corona
(7809- )TT13#,XT130

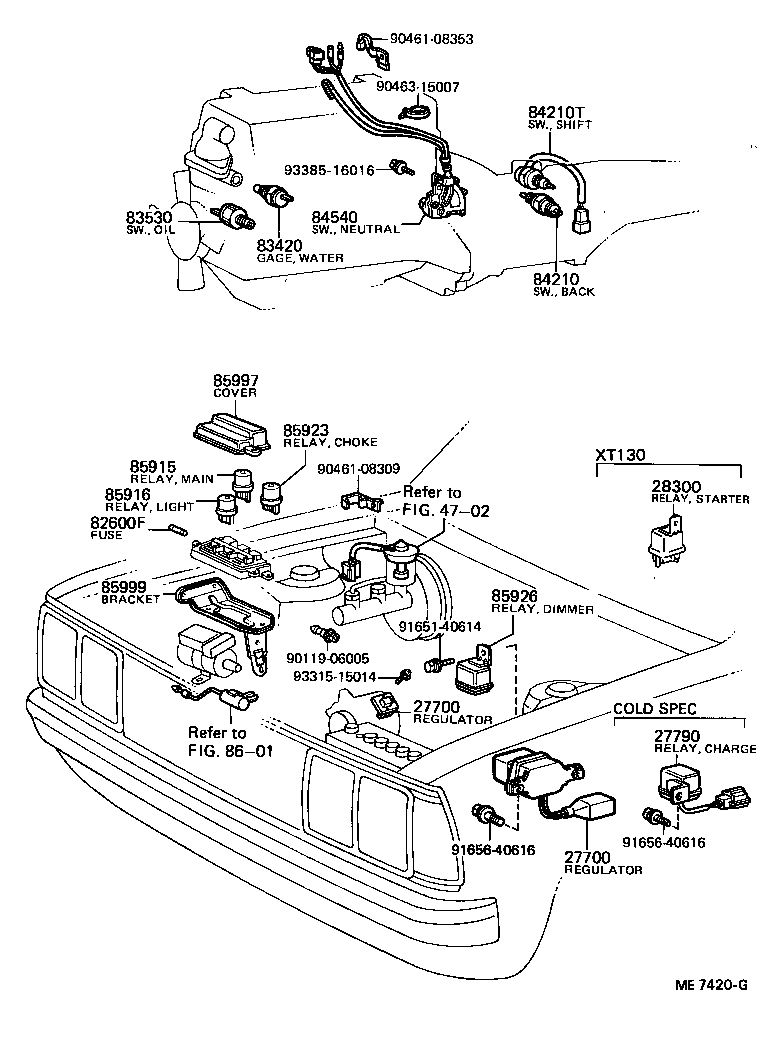

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-27050 |
3T..TT132..LHD..GEN |
1 | ||
| 27700-27040 |
12R#,18R,3T..RT13#,TT132 |
1 | ||
| 27700-27050 |
12RM,18R#,2T,3T..RT13#,TT13# |
1 | ||
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-27050 |
3T..TT132..LHD..GEN |
1 | ||
| 27700-27040 |
12R#,18R,3T..RT13#,TT132 |
1 | ||
| 27700-27050 |
12RM,18R#,2T,3T..RT13#,TT13# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62005 |
RT13#,TT13#,XT130 5A |
6 | ||
| 99118-62915 |
RT13#,TT13#,XT130 15A,15A |
6 | ||
| 99118-62910 |
RT13#,TT13#,XT130 10A |
6 | ||
| 99118-62920 |
RT13#,TT13#,XT130 20A,20A |
3 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
RT13#,TT132 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-10020 |
TT13# |
1 | ||
| 83530-36011 |
RT130,132 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
RT13#,TT13#..MTM |
1 | ||
| 84210-14010 |
RT13#,TT132..MTM..(ARL,GEN,PHL) |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
RT13#,TT13#,XT130 |
2 | ||
| 90987-02001 |
RT13#,TT13#,XT130 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
RT13#,TT13#,XT130 |
2 | ||
| 90987-01001 |
RT13#,TT13#,XT130 |
2 | ||
| 85923 - RELAY, CHOKE CONTROL | ||||
| 90987-02001 |
RT132,TT13# |
1 | ||
| 85997 - COVER, RELAY BRACKET | ||||
| 85997-20010 |
RT13#,TT13#,XT130..ARL,GEN,PHL |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-20070 |
TT13# |
1 | ||
| 85999-20060 |
RT130,132..LHD |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90461-08309 | ||||
| 90461-08353 | ||||
| 90463-15007 | ||||
| 91651-40614 | ||||
| 91656-40616 | ||||
| 93315-15014 | ||||
| 93385-16016 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8601 | ||||

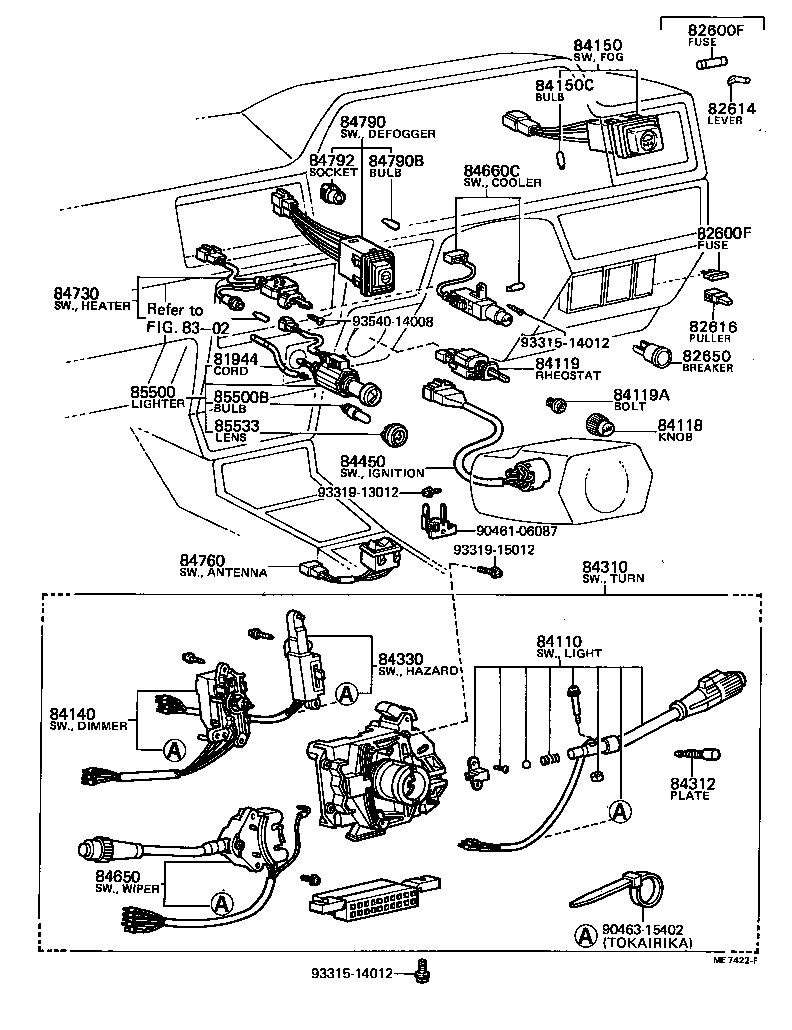

(7809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81944 - CORD, OPTICAL FIBER | ||||
| 81944-20030 |
RT13#,TT13#,XT130..ARL,EUR,GEN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62005 |
RT13#,TT13#,XT130 5A |
6 | ||
| 99118-62915 |
RT13#,TT13#,XT130 15A,15A |
6 | ||
| 99118-62910 |
RT13#,TT13#,XT130 10A |
6 | ||
| 99118-62920 |
RT13#,TT13#,XT130 20A,20A |
3 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62005 |
RT13#,TT13#,XT130 5A |
6 | ||
| 99118-62915 |
RT13#,TT13#,XT130 15A,15A |
6 | ||
| 99118-62910 |
RT13#,TT13#,XT130 10A |
6 | ||
| 99118-62920 |
RT13#,TT13#,XT130 20A,20A |
3 | ||
| 82614 - LEVER, FUSE | ||||
| 82614-30010 |
RT13#,TT132 |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29176 |
RT13#,TT13#..LHD MATSUSHITA |
1 | ||
| 84112-29135 |
RT13#,TT132..LHD TOKAIRIKA |
1 | ||
| 84112-29175 |
RT13#,TT132..LHD MATSUSHITA |
1 | ||
| 84112-29136 |
RT13#,TT13#..LHD TOKAIRIKA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-29035 |
RT13#,TT132..LHD TOKAIRIKA |
1 | ||
| 84140-20090 |
RT13#,TT132..LHD MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-20441 |
RT13#,TT13#..LHD..(GEN,PHL) TOKAIRIKA |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
RT13#,TT13#,XT130 TOKAIRIKA |
1 | ||
| 84312-20020 |
RT13#,TT13#,XT130 MATSUSHITA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20100 |
RT13#,TT132..LHD MATSUSHITA |
1 | ||
| 84332-29035 |
RT13#,TT132..LHD TOKAIRIKA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-30131 |
RT13#,TT13#,XT130 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-20240 |
RT13#,TT132..LHD..(GEN,PHL) MATSUSHITA |
1 | ||
| 84652-20241 |
RT13#,TT13#..LHD..(GEN,PHL) MATSUSHITA |
1 | ||
| 84652-29185 |
RT13#,TT132..LHD..(GEN,PHL) TOKAIRIKA |
1 | ||
| 84652-29186 |
RT13#,TT13#..LHD..(GEN,PHL) TOKAIRIKA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20020 |
RT13#,TT13#..LHD..(EUR,GEN) |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20060 |
RT13#,TT13#..EUR,GEN |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12081 |
RT13#,TT13#,XT130 |
1 | ||
| 84790-20040 |
RT13#,TT13#,XT130..ARL,EUR,GEN |
1 | ||
| 84790-20041 |
RT132,TT13#,XT130 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11024 |
RT13#,TT13#,XT130 12V 1.4W,12V 1.4W |
1 | ||
| 90981-11018 |
RT13#,TT13#,XT130..ARL,EUR,GEN 12V 1.2W W/O SOCKET,12V 1.4W |
1 | ||
| 84792 - SOCKET SUB-ASSY, REAR WINDOW DEFOGGER SWITCH | ||||
| 83101-22010 |
RT13#,TT13#,XT130..ARL,EUR,GEN |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20120 |
RT13#,TT13#,XT130..ARL,GEN,PHL |
1 | ||
| 85500-20121 |
RT13#,TT13#,XT130..ARL,GEN,PHL |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 99132-11034 |
RT13#,TT13#,XT130 12V 3.4W,12V 3.4W |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
RT13#,TT13#,XT130 TOKAIRIKA |
1 | ||
| 85533-20020 |
RT13#,TT13#,XT130 STANLEY |
1 | ||
| Common parts | ||||
| 90461-06087 | ||||
| 90463-15402 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
| 93540-14008 | ||||
| Linked diagrams | ||||
| 8302 | ||||

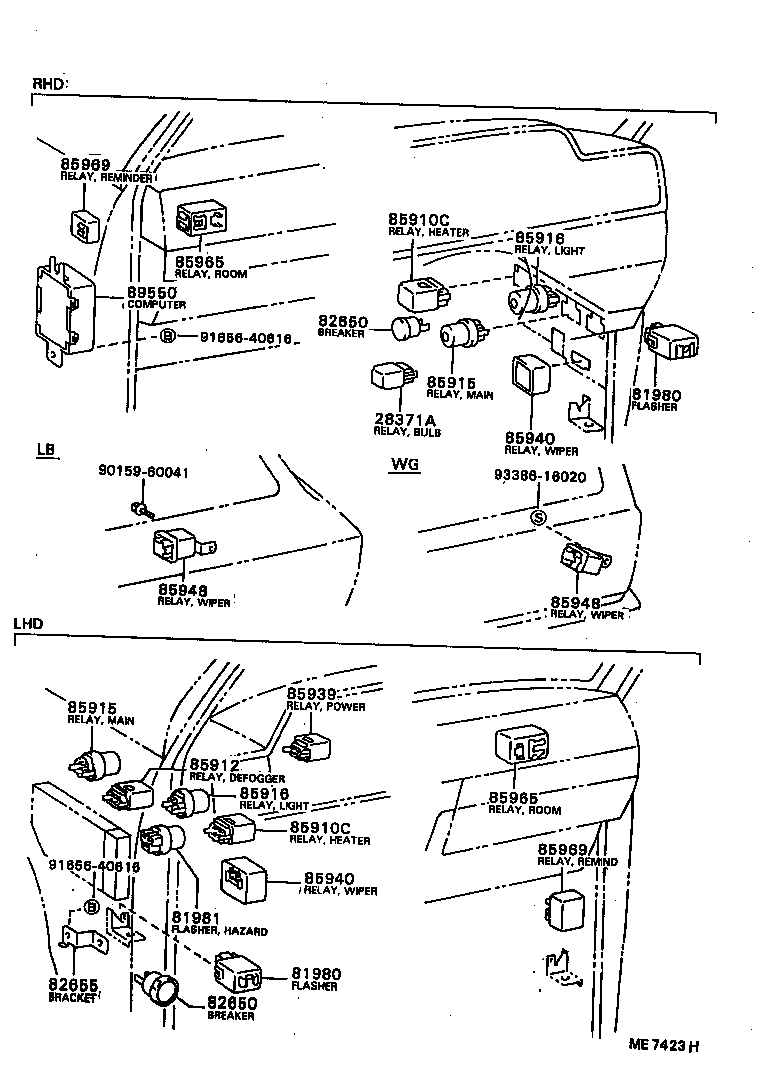

(7809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22060 |
RT130,132,TT13#,XT130 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22060 |
RT130,132,TT13#,XT130 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-22010 |
RT13#,TT13#,XT130..ARL,EUR,GEN |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-22010 |
RT13#,TT13#,XT130..ARL,EUR,GEN |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
XT130;RT13#,TT13#..LHD..(EUR,GEN) |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
RT13#,TT13#,XT130 |
2 | ||
| 90987-02001 |
RT13#,TT13#,XT130 |
2 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
RT13#,TT13#,XT130 |
2 | ||
| 90987-02001 |
RT13#,TT13#,XT130 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
RT13#,TT13#,XT130 |
2 | ||
| 90987-01001 |
RT13#,TT13#,XT130 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
RT13#,TT13#,XT130 |
2 | ||
| 90987-01001 |
RT13#,TT13#,XT130 |
2 | ||
| Common parts | ||||
| 90159-60041 | ||||
| 91656-40616 | ||||
| 93386-16020 | ||||

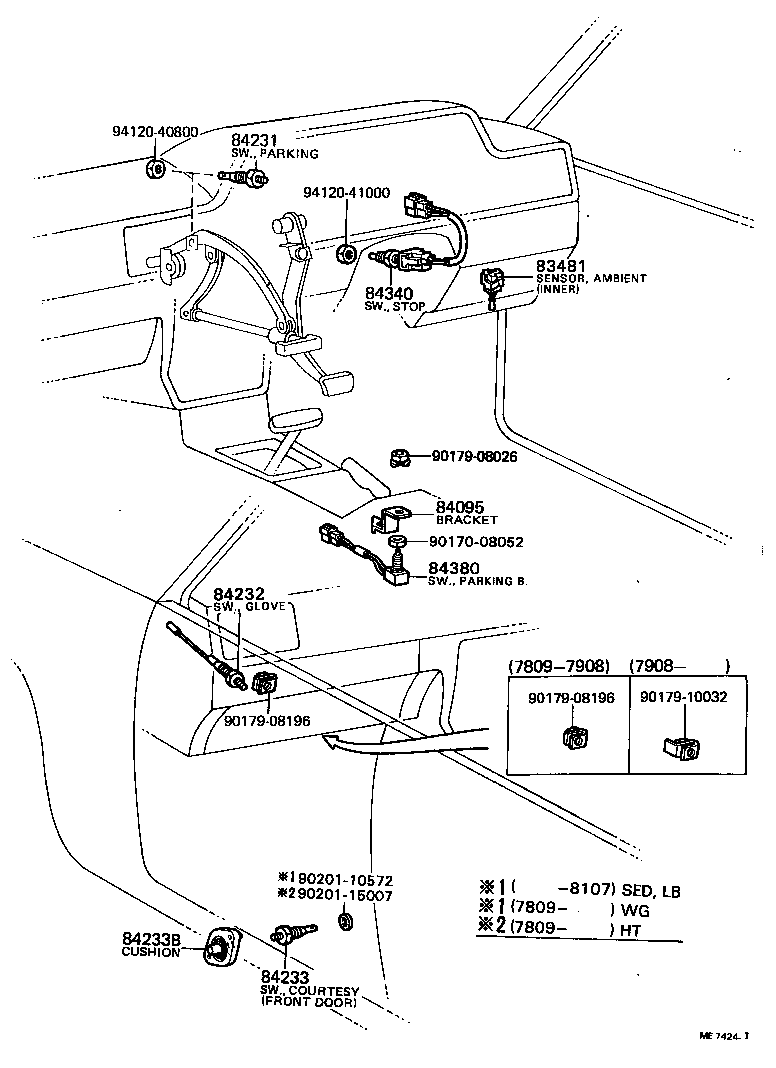

(7809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-20030 |
RT13#,TT13#,XT130 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20040 |
RT13#,TT13#,XT130..LB,SED |
2 | ||
| 84231-20050 |
RT13#,TT13#,XT130..LB,SED |
2 | ||
| 84231-20010 |
RT13#,TT132..LB,SED |
2 | ||
| 84231-20060 |
RT13#,TT13#..LB,SED |
2 | ||
| 84230-20110 |
RT13#,TT13#,XT130..LB,SED |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-20010 |
TT133,XT130;RT13#,TT132..LB,SED |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22060 |
RT13#,TT13#,XT130 MATSUSHITA |
1 | ||
| 84340-22071 |
RT13#,TT13#,XT130 TOKAIRIKA |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-20010 |
RT13#,TT13#,XT130 |
1 | ||
| Common parts | ||||
| 90170-08052 | ||||
| 90179-08026 | ||||
| 90179-08196 | ||||
| 90179-10032 | ||||
| 90201-10572 | ||||
| 90201-15007 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||

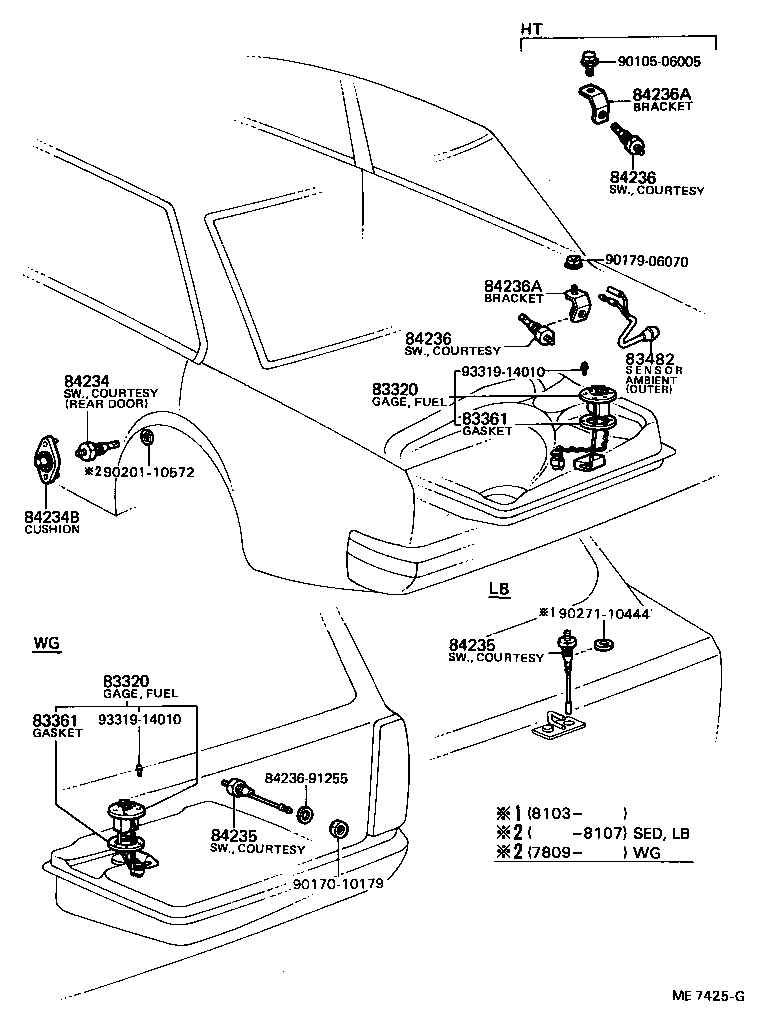

(7809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19306 |
RT13#,TT13#..LNK DENSO |
1 | ||
| 83320-29275 |
RT13#,TT13#..LNK YAZAKI |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19306 |
RT13#,TT13#..LNK DENSO |
1 | ||
| 83320-29275 |
RT13#,TT13#..LNK YAZAKI |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
RT13#,TT13#,XT130 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
RT13#,TT13#,XT130 |
1 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-20100 |
RT13#,TT13#,XT130..LB,SED |
2 | ||
| 84231-20040 |
RT13#,TT13#,XT130..LB,SED |
2 | ||
| 84231-20060 |
RT13#,TT13#..LB,SED |
2 | ||
| 84231-20010 |
RT13#,TT132..LB,SED |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-20010 |
TT133,XT130;RT13#,TT132..LB,SED |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20010 |
RT13#,TT132..SED |
1 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20010 |
RT13#,TT132..SED |
1 | ||
| Common parts | ||||
| 84236-91255 | ||||
| 90105-06005 | ||||
| 90170-10179 | ||||
| 90179-06070 | ||||
| 90201-10572 | ||||
| 90271-10444 | ||||
| 93319-14010 | ||||
