TT132L-TEKRS (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1981
Engine
3T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809-8008)

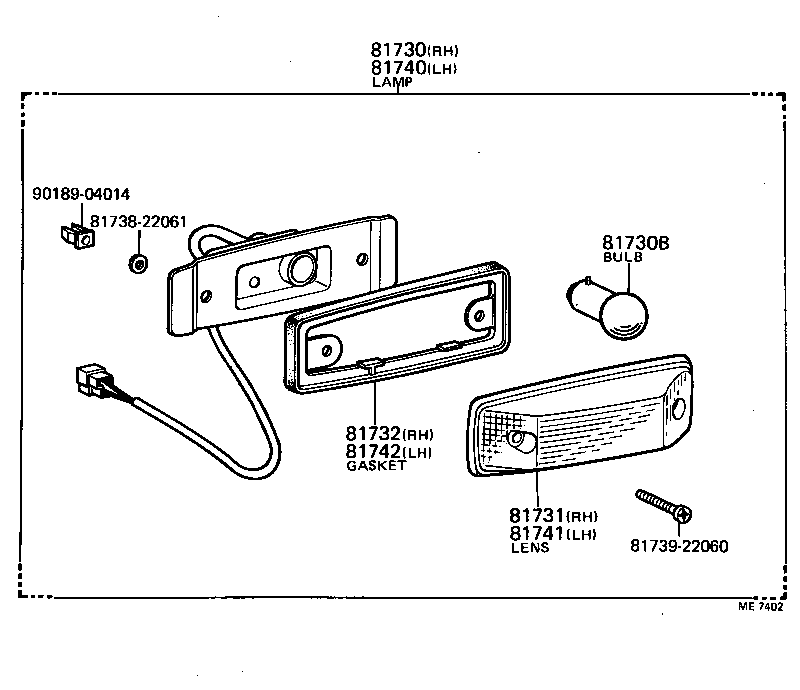

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81730 - LAMP ASSY, SIDE TURN SIGNAL, RH | ||||
| 81730-29205 |
RT13#,TT13#,XT130 |
1 | ||
| 81730B - BULB (FOR SIDE TURN SIGNAL LAMP) | ||||
| 99132-11050 |
RT13#,TT13#,XT130 12V 5W,12V 5W |
2 | ||
| 81731 - LENS, SIDE TURN SIGNAL LAMP, RH | ||||
| 81731-20120 |
RT13#,TT13#,XT130 |
1 | ||
| 81732 - GASKET, SIDE TURN SIGNAL LAMP LENS, RH | ||||
| 81732-14100 |
RT13#,TT13#,XT130 |
1 | ||
| 81740 - LAMP ASSY, SIDE TURN SIGNAL, LH | ||||
| 81740-29195 |
RT13#,TT13#,XT130 |
1 | ||
| 81741 - LENS, SIDE TURN SIGNAL LAMP, LH | ||||
| 81741-20120 |
RT13#,TT13#,XT130 |
1 | ||
| 81742 - GASKET, SIDE TURN SIGNAL LAMP LENS, LH | ||||
| 81742-14100 |
RT13#,TT13#,XT130 |
1 | ||
| Common parts | ||||
| 81738-22061 | ||||
| 81739-22060 | ||||
| 90189-04014 | ||||
