TT132L-TEKRS (1978)

Toyota Corona

Production Sep 1978 - Aug 1981
Engine 3T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

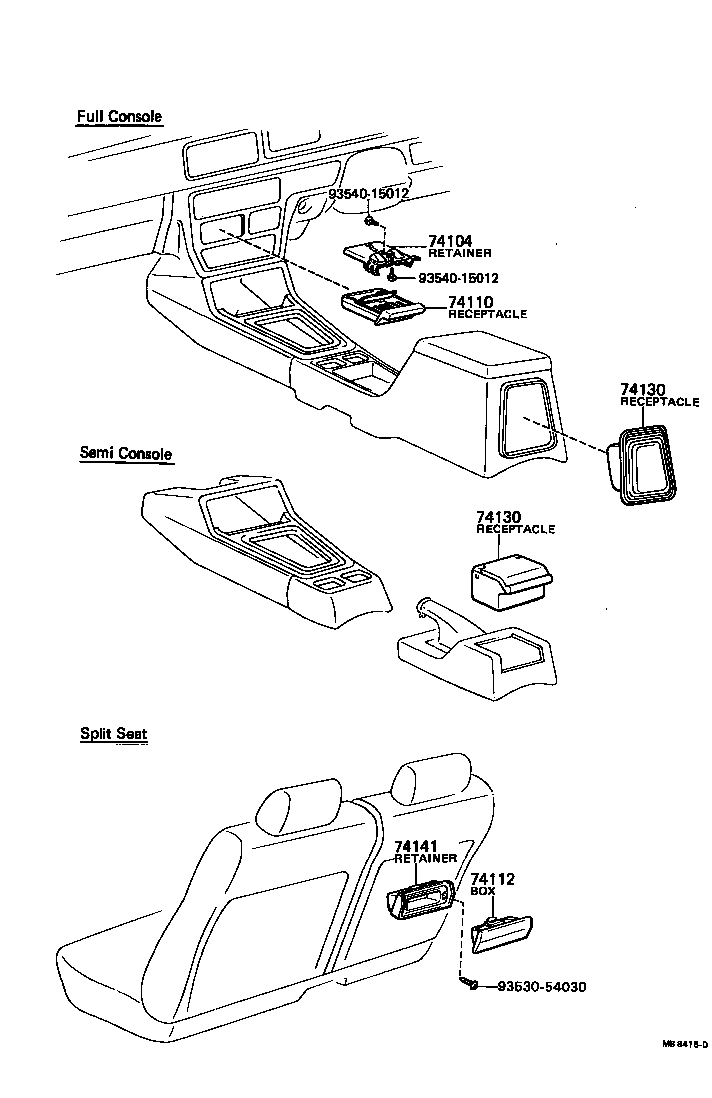

Click highlighted areas on diagram

diagram 74104 74110 74112 74130 74130 74141 9353054030 9354015012 9354015012
Part # Description Qty Price
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-20120

RT13#,TT13#,XT130

W/ASH RECEPTACLE LAMP

 1
74104-20110

TT132..HT;RT130..DLX..LNK;RT13#,TT13#..STD

 1
74110 - RECEPTACLE ASSY, INSTRUMENT PANEL ASH
74102-20040

TT132..LHD..GL;RT13#,TT13#,XT130..DLX,STD

 1
74130 - RECEPTACLE ASSY, REAR ASH
74130-2006005

RT13#,TT13#,XT130

W/SEMI CONSOLE,BEIGE,BEIGE,TRIM4#

 1
74130-2006001

RT13#,TT13#,XT130

W/SEMI CONSOLE,BLACK,BLACK,TRIM2#

 1
74130-2006002

RT13#,TT13#,XT130..HT,LB,SED

W/SEMI CONSOLE,DARK WINE,RED/MAROON,TRIM3#

 1
74130 - RECEPTACLE ASSY, REAR ASH
74130-2006005

RT13#,TT13#,XT130

W/SEMI CONSOLE,BEIGE,BEIGE,TRIM4#

 1
74130-2006001

RT13#,TT13#,XT130

W/SEMI CONSOLE,BLACK,BLACK,TRIM2#

 1
74130-2006002

RT13#,TT13#,XT130..HT,LB,SED

W/SEMI CONSOLE,DARK WINE,RED/MAROON,TRIM3#

 1
Common parts
93530-54030
93540-15012
