TT132L-TEKRS (1978)
Toyota Corona
(7809-8008)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2069001 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT132..SED..LNK PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-2069002 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT132..SED..LNK PF,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71071-2069005 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT132..SED..LNK PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-2069101 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-2069102 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71071-2069105 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2033005 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT132..SED..LNK PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-2033002 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT132..SED..LNK PF,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71072-2033001 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT132..SED..LNK PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-2033105 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-2033101 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-2033102 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2068001 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-2068005 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-2068002 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-2068002 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073-2068001 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-2068005 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2075002 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT132..SED..LNK PF,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71410-2075005 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT132..SED..LNK PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-2075001 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT132..SED..LNK PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-2075101 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-2075105 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-2075102 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2036002 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT132..SED..LNK PF,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71420-2036005 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT132..SED..LNK PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71420-2036001 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT132..SED..LNK PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-2036101 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-2036105 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71420-2036102 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2072005 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-2072001 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-2072002 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2045005 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-2045001 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-2045002 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2021001 |
TT132..STD..LNK NEW ZEALAND SPEC,BLACK,BLACK,TRIM2# |
2 | ||
| 71910-2021005 |
TT132..STD..LNK NEW ZEALAND SPEC,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956 - SUPPORT, HEADREST | ||||
| 71956-3002005 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956-3002002 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT13#..HT,LB,SED W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71956-3002001 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71990-3002002 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT13#..HT,LB,SED W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71990-3002001 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71990-3002005 |
RT13#;TT132..RHD;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956 - SUPPORT, HEADREST | ||||
| 71956-3002005 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956-3002002 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT13#..HT,LB,SED W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71956-3002001 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71990-3002002 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT13#..HT,LB,SED W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71990-3002001 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71990-3002005 |
RT13#;TT132..RHD;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-20060 |
TT132..LNK..GEN;RT130..SED..LEF..GEN;RT13#..(LB,SED)..DLX..LNK GENERAL COUNTRY |
1 | ||
| 72010-20061 |
TT13#..(LB,SED)..GEN;RT130..SED..LEF..GEN;RT13#..(LB,SED)..DLX..LNK GENERAL COUNTRY |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-20060 |
TT132..LNK..GEN;RT130..SED..LEF..GEN;RT13#..(LB,SED)..DLX..LNK GENERAL COUNTRY |
1 | ||
| 72010-20061 |
TT13#..(LB,SED)..GEN;RT130..SED..LEF..GEN;RT13#..(LB,SED)..DLX..LNK GENERAL COUNTRY |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-20060 |
TT132..LNK..GEN;RT130..SED..LEF..GEN;RT13#..(LB,SED)..DLX..LNK GENERAL COUNTRY |
1 | ||
| 72010-20061 |
TT13#..(LB,SED)..GEN;RT130..SED..LEF..GEN;RT13#..(LB,SED)..DLX..LNK GENERAL COUNTRY |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72020-20070 |
RT13#..DLX..LNK;TT132..LNK..GEN;RT130..SED..LEF..GEN GENERAL COUNTRY |
1 | ||
| 72020-20071 |
RT13#..DLX..LNK;RT130..SED..LEF..GEN;TT13#..(HT,LB,SED)..GEN GENERAL COUNTRY |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72020-20070 |
RT13#..DLX..LNK;TT132..LNK..GEN;RT130..SED..LEF..GEN GENERAL COUNTRY |
1 | ||
| 72020-20071 |
RT13#..DLX..LNK;RT130..SED..LEF..GEN;TT13#..(HT,LB,SED)..GEN GENERAL COUNTRY |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401001 |
RT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN GENERAL COUNTRY,RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1401002 |
RT13#..DLX..LNK;RT130..SED..LEF..GEN;TT13#..(HT,LB,SED)..GEN GENERAL COUNTRY,RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72525-1401006 |
RT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN GENERAL COUNTRY,RH,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401001 |
RT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN GENERAL COUNTRY,LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1401002 |
RT13#..DLX..LNK;RT130..SED..LEF..GEN;TT13#..(HT,LB,SED)..GEN GENERAL COUNTRY,LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1401006 |
RT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN GENERAL COUNTRY,LH,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401001 |
RT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN GENERAL COUNTRY,RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1401002 |
RT13#..DLX..LNK;RT130..SED..LEF..GEN;TT13#..(HT,LB,SED)..GEN GENERAL COUNTRY,RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72525-1401006 |
RT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN GENERAL COUNTRY,RH,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401001 |
RT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN GENERAL COUNTRY,LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1401002 |
RT13#..DLX..LNK;RT130..SED..LEF..GEN;TT13#..(HT,LB,SED)..GEN GENERAL COUNTRY,LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1401006 |
RT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN GENERAL COUNTRY,LH,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-10010 | ||||
| 90119-10111 | ||||
| 90151-50001 | ||||
| 90154-80004 | ||||
| 90168-40021 | ||||
| 90386-12018 | ||||
| 93249-54006 | ||||
| 93540-54008 | ||||
| 93540-54014 | ||||
| 93610-55016 | ||||
| 96160-01000 | ||||

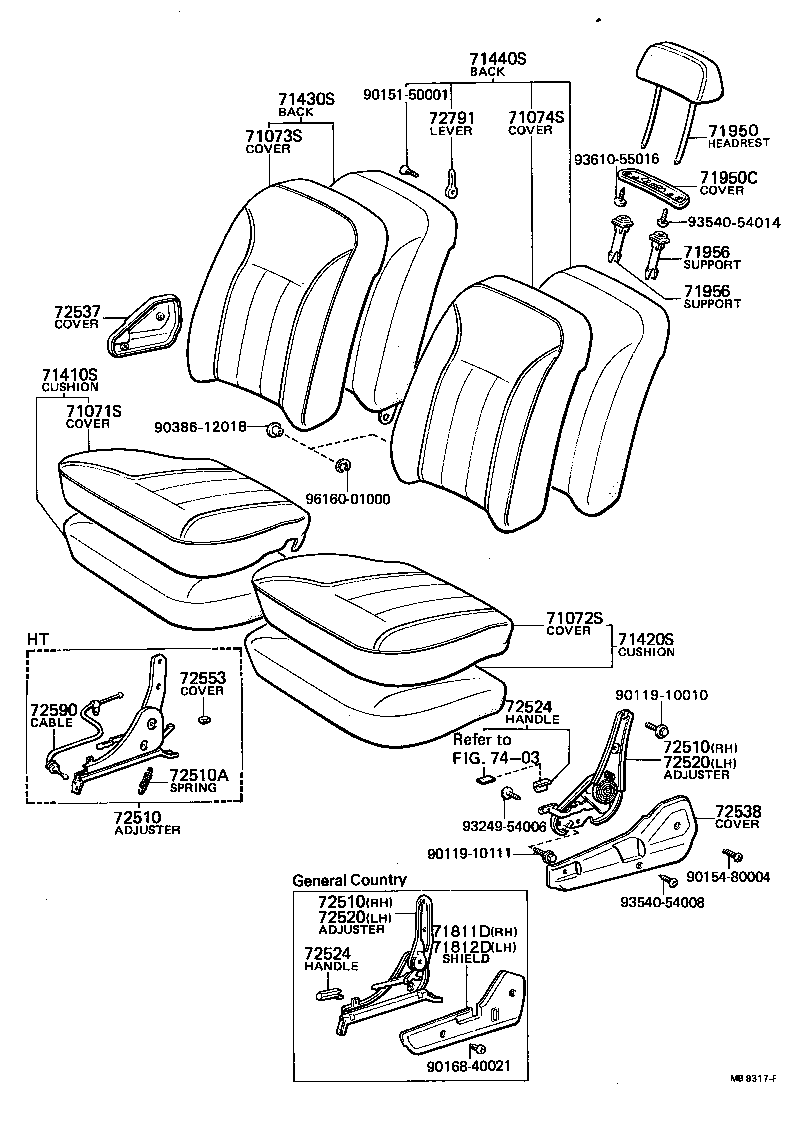

| Linked diagrams | ||||
| 7403 | ||||
