Toyota Corona TT132 HOOD & FRONT FENDER

Manufacturers Home
Toyota
EU
CORONA
TT132L-TEKRS (1978)
5302 - HOOD & FRONT FENDER

TT132L-TEKRS (1978)

Toyota Corona

Production Sep 1978 - Aug 1981

Engine 3T

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(7809-8008) ; (8008-8111)XT130

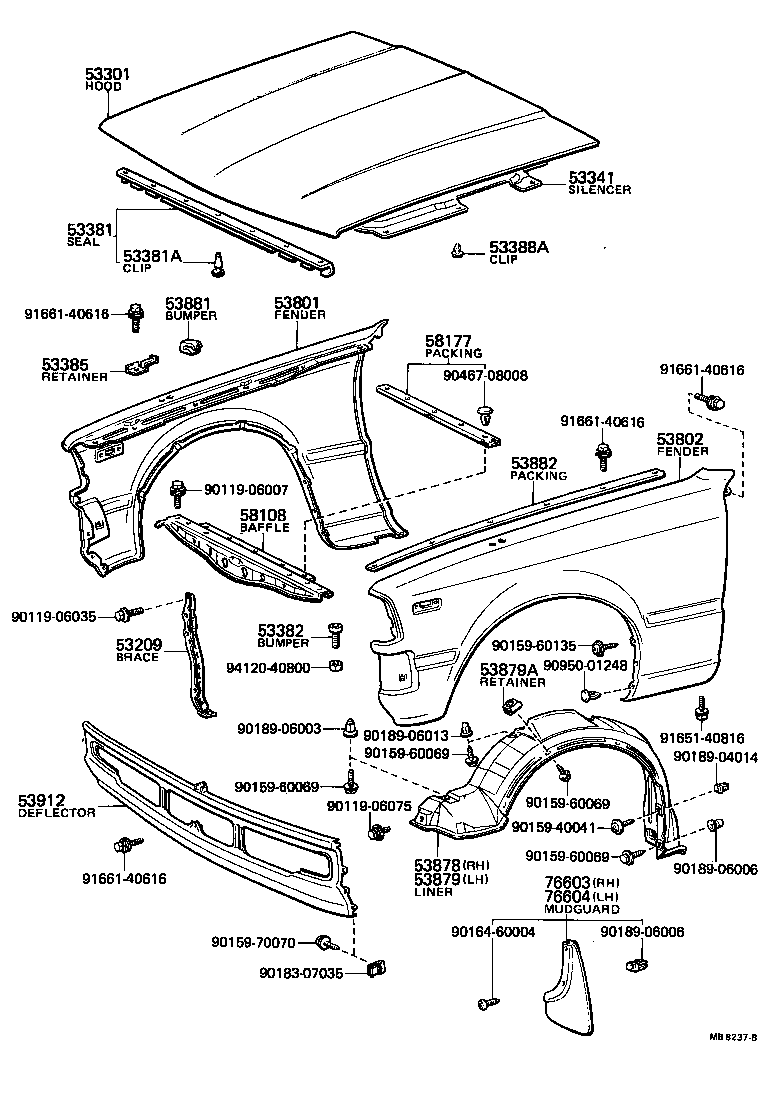

Click highlighted areas on diagram

Part #	Description	Period	Qty
53209 - BRACE SUB-ASSY, HOOD LOCK
53215-20030	RT13#,TT13#,XT130	09/1978 - 08/1980	1
53301 - HOOD SUB-ASSY
53301-20100	RT13#,TT13#,XT130	09/1978 - 08/1980	1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-14050	RT13#,TT13#,XT130	09/1978 - 08/1980	1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08008	RT13#,TT132	09/1978 - 08/1979	7
53382 - BUMPER, HOOD, FRONT
53382-20011	RT13#,TT13#,XT130	09/1978 - 01/1983	2
53385 - RETAINER, HOOD, BUMPER
53386-14010	RT13#,TT13#,XT130 LH	09/1978 - 01/1983	2
53385-14010	RT13#,TT13#,XT130 RH	09/1978 - 01/1983	2
53801 - FENDER SUB-ASSY, FRONT RH
53801-20370	RT13#,TT13#,XT130..ARL,GEN W/O MIRROR HOLE	09/1978 - 12/1979	1
53801-20340	RT13#,TT13#..GEN W/MIRROR HOLE	09/1978 - 08/1980	1
53801-20370	RT13#,TT13#,XT130 W/O MIRROR HOLE	12/1979 - 08/1980	1
53802 - FENDER SUB-ASSY, FRONT LH
53802-20360	RT13#,TT13#..GEN W/MIRROR HOLE	09/1978 - 08/1980	1
53802-20390	RT13#,TT13#,XT130..ARL,GEN W/O MIRROR HOLE	09/1978 - 08/1980	1
53878 - LINER, FRONT FENDER, RH
53875-20020	RT13#,TT13#,XT130	09/1978 - 01/1983	1
53879 - LINER, FRONT FENDER, LH
53876-20030	RT13#,TT13#,XT130	09/1978 - 01/1983	1
53879A - RETAINER, FRONT FENDER LINER
53879-22010	RT13#,TT13#,XT130	09/1978 - 01/1983	8
53881 - BUMPER, FENDER TO HOOD
53384-14030	RT13#,TT13#,XT130	09/1978 - 01/1983	4
53882 - PACKING, FRONT FENDER MAIN
53882-14050	RT13#,TT13#,XT130	09/1978 - 01/1983	2
53912 - DEFLECTOR, FRONT BUMPER STONE
53901-20030	RT13#,TT13#,XT130	09/1978 - 08/1980	1
58108 - BAFFLE SUB-ASSY, RADIATOR UPPER
53216-20010	RT13#,TT13#,XT130	09/1978 - 08/1980	1
58177 - PACKING, RADIATOR BAFFLE
53293-14020	RT13#,TT13#,XT130	09/1978 - 08/1980	1
Common parts
90119-06007
90119-06035
90119-06075
90159-40041
90159-60069
90159-60135
90159-70070
90164-60004
90183-07035
90189-04014
90189-06003
90189-06006
90189-06013
90467-08008
90950-01248
91651-40816
91661-40616
94120-40800

(8008- )RT13#,TT13# ; (8111- )XT130

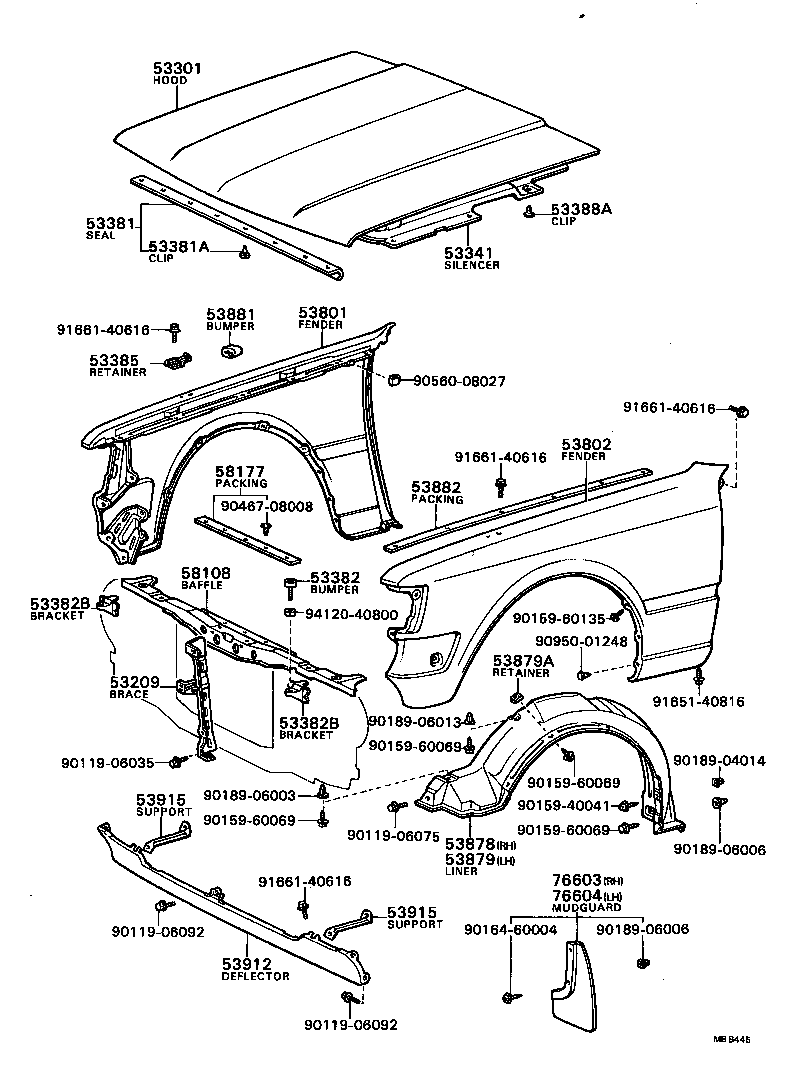

Click highlighted areas on diagram

Part #	Description	Period	Qty
53209 - BRACE SUB-ASSY, HOOD LOCK
53215-20030	RT13#,TT13#,XT130	09/1978 - 08/1980	1
53301 - HOOD SUB-ASSY
53301-20100	RT13#,TT13#,XT130	09/1978 - 08/1980	1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-14050	RT13#,TT13#,XT130	09/1978 - 08/1980	1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08008	RT13#,TT132	09/1978 - 08/1979	7
53382 - BUMPER, HOOD, FRONT
53382-20011	RT13#,TT13#,XT130	09/1978 - 01/1983	2
53385 - RETAINER, HOOD, BUMPER
53386-14010	RT13#,TT13#,XT130 LH	09/1978 - 01/1983	2
53385-14010	RT13#,TT13#,XT130 RH	09/1978 - 01/1983	2
53801 - FENDER SUB-ASSY, FRONT RH
53801-20370	RT13#,TT13#,XT130..ARL,GEN W/O MIRROR HOLE	09/1978 - 12/1979	1
53801-20340	RT13#,TT13#..GEN W/MIRROR HOLE	09/1978 - 08/1980	1
53801-20370	RT13#,TT13#,XT130 W/O MIRROR HOLE	12/1979 - 08/1980	1
53802 - FENDER SUB-ASSY, FRONT LH
53802-20360	RT13#,TT13#..GEN W/MIRROR HOLE	09/1978 - 08/1980	1
53802-20390	RT13#,TT13#,XT130..ARL,GEN W/O MIRROR HOLE	09/1978 - 08/1980	1
53878 - LINER, FRONT FENDER, RH
53875-20020	RT13#,TT13#,XT130	09/1978 - 01/1983	1
53879 - LINER, FRONT FENDER, LH
53876-20030	RT13#,TT13#,XT130	09/1978 - 01/1983	1
53879A - RETAINER, FRONT FENDER LINER
53879-22010	RT13#,TT13#,XT130	09/1978 - 01/1983	8
53881 - BUMPER, FENDER TO HOOD
53384-14030	RT13#,TT13#,XT130	09/1978 - 01/1983	4
53882 - PACKING, FRONT FENDER MAIN
53882-14050	RT13#,TT13#,XT130	09/1978 - 01/1983	2
53912 - DEFLECTOR, FRONT BUMPER STONE
53901-20030	RT13#,TT13#,XT130	09/1978 - 08/1980	1
58108 - BAFFLE SUB-ASSY, RADIATOR UPPER
53216-20010	RT13#,TT13#,XT130	09/1978 - 08/1980	1
58177 - PACKING, RADIATOR BAFFLE
53293-14020	RT13#,TT13#,XT130	09/1978 - 08/1980	1
Common parts
90119-06035
90119-06075
90119-06092
90159-40041
90159-60069
90159-60135
90164-60004
90189-04014
90189-06003
90189-06006
90189-06013
90467-08008
90560-08027
90950-01248
91651-40816
91661-40616
94120-40800

TT132L-TEKRS (1978)

(7809-8008) ; (8008-8111)XT130

(8008- )RT13#,TT13# ; (8111- )XT130
