TT132L-TEHRS (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 3T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8008) ; (8010-8111)XT130

Click highlighted areas on diagram

diagram 45102 45105 45125 45129 45131 45155 45184 45192 45201P 45207 9331514012 9351013010
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45100-2020005

RT13#,TT13#..DLX,STD

BEIGE,BEIGE,TRIM4#

 1
45100-2020002

RT130,132,TT13#..DLX,STD

2-SPOKE,DARK WINE,RED/MAROON,TRIM3#

 1
45100-2020001

RT130,132,TT13#..DLX,STD

2-SPOKE,BLACK,BLACK,TRIM2#

 1
45125 - MARK, STEERING WHEEL PAD
45125-2011005

RT13#,TT13#..DLX,STD

BEIGE,BEIGE,TRIM4#

 1
45125-2011002

RT130,132,TT13#..DLX,STD

2-SPOKE,DARK WINE,RED/MAROON,TRIM3#

 1
45125-2011001

RT130,132,TT13#..DLX,STD

2-SPOKE,BLACK,BLACK,TRIM2#

 1
45129 - BUTTON, HORN, NO.2
45131-2012005

RT13#,TT13#..DLX,STD

BEIGE,BEIGE,TRIM4#

 1
45131-2012001

RT130,132,TT13#..DLX,STD

BLACK,BLACK,TRIM2#

 1
45131-2012006

RT130,132,TT13#..DLX,STD

LIGHT BROWN,BROWN,TRIM4#

 1
45131-2012002

RT130,132,TT13#..DLX,STD

DARK WINE,RED/MAROON,TRIM3#

 1
45131 - BUTTON, HORN, NO.1
45129-2004005

RT13#,TT13#..DLX,STD

BEIGE,BEIGE,TRIM4#

 1
45129-2004006

RT130,132,TT13#..DLX,STD

LIGHT BROWN,BROWN,TRIM4#

 1
45129-2004002

RT130,132,TT13#..DLX,STD

DARK WINE,RED/MAROON,TRIM3#

 1
45129-2004001

RT130,132,TT13#..DLX,STD

BLACK,BLACK,TRIM2#

 1
45155 - SPACER, HORN BUTTON CONTACT PLATE
45155-20010

RT130,132,TT13#..DLX,STD

2-SPOKE

 2
45201P - NUT, STEERING WHEEL SET
90179-12086

RT13#,TT13#,XT130

 1
45207 - RING, HORN CONTACT
45176-30050

RT130,132,TT13#..DLX,STD

2-SPOKE

 1
Common parts
93315-14012
93510-13010

(7809-8205)RT13#,TT13#..DLX,STD

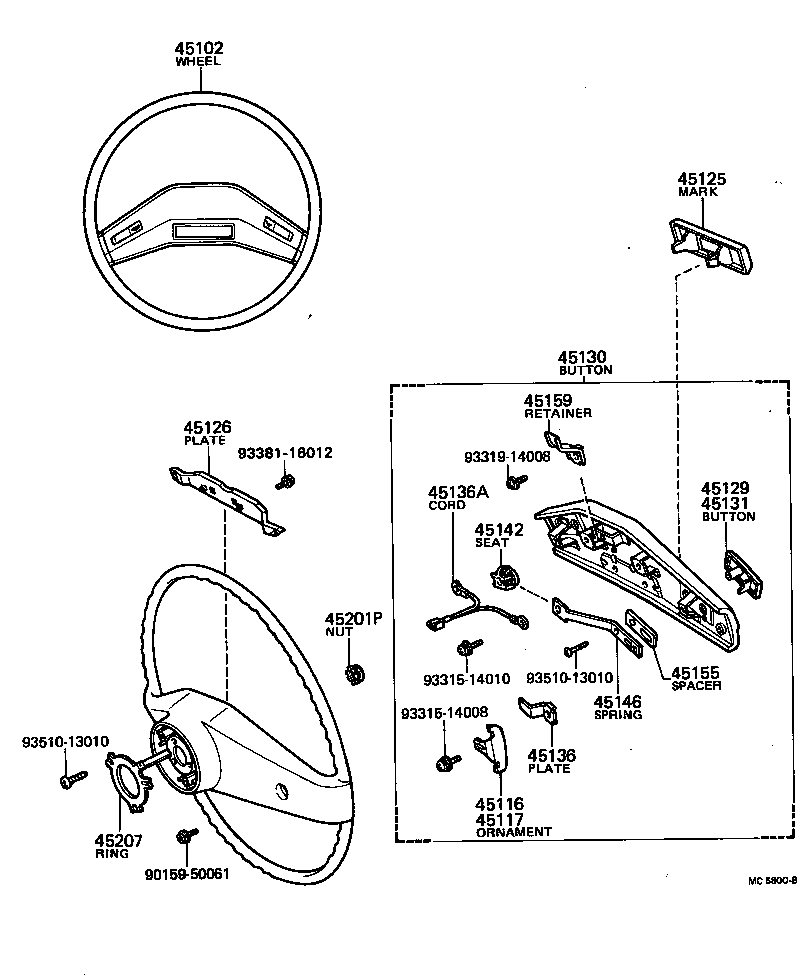

Click highlighted areas on diagram

diagram 45102 45116 45117 45125 45126 45129 45130 45131 45136 45136A 45142 45146 45155 45159 45201P 45207 9015950061 9331514008 9331514010 9331914008 9338116012 9351013010 9351013010
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45100-2020005

RT13#,TT13#..DLX,STD

BEIGE,BEIGE,TRIM4#

 1
45100-2020002

RT130,132,TT13#..DLX,STD

2-SPOKE,DARK WINE,RED/MAROON,TRIM3#

 1
45100-2020001

RT130,132,TT13#..DLX,STD

2-SPOKE,BLACK,BLACK,TRIM2#

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-20010

RT130,132,TT13#..DLX,STD

 1
45117 - ORNAMENT, STEERING WHEEL, NO.2
45117-20010

RT130,132,TT13#..DLX,STD

 1
45125 - MARK, STEERING WHEEL PAD
45125-2011005

RT13#,TT13#..DLX,STD

BEIGE,BEIGE,TRIM4#

 1
45125-2011002

RT130,132,TT13#..DLX,STD

2-SPOKE,DARK WINE,RED/MAROON,TRIM3#

 1
45125-2011001

RT130,132,TT13#..DLX,STD

2-SPOKE,BLACK,BLACK,TRIM2#

 1
45126 - PLATE, STEERING WHEEL PAD SET
45126-20010

RT130,132,TT13#..DLX,STD

 1
45129 - BUTTON, HORN, NO.2
45131-2012005

RT13#,TT13#..DLX,STD

BEIGE,BEIGE,TRIM4#

 1
45131-2012001

RT130,132,TT13#..DLX,STD

BLACK,BLACK,TRIM2#

 1
45131-2012006

RT130,132,TT13#..DLX,STD

LIGHT BROWN,BROWN,TRIM4#

 1
45131-2012002

RT130,132,TT13#..DLX,STD

DARK WINE,RED/MAROON,TRIM3#

 1
45130 - BUTTON ASSY, HORN
45130-2014005

RT13#,TT13#..DLX,STD

BEIGE,BEIGE,TRIM4#

 1
45130-2014002

RT130,132,TT13#..DLX,STD

DARK WINE,RED/MAROON,TRIM3#

 1
45130-2014001

RT130,132,TT13#..DLX,STD

BLACK,BLACK,TRIM2#

 1
45131 - BUTTON, HORN, NO.1
45129-2004005

RT13#,TT13#..DLX,STD

BEIGE,BEIGE,TRIM4#

 1
45129-2004006

RT130,132,TT13#..DLX,STD

LIGHT BROWN,BROWN,TRIM4#

 1
45129-2004002

RT130,132,TT13#..DLX,STD

DARK WINE,RED/MAROON,TRIM3#

 1
45129-2004001

RT130,132,TT13#..DLX,STD

BLACK,BLACK,TRIM2#

 1
45136 - PLATE, HORN BUTTON CONTACT
45136-20100

RT130,132,TT13#..DLX,STD

 2
45136A - CORD(FOR HORN CONTACT RING)
90945-02041

RT130,132,TT13#..DLX,STD

2-SPOKE

 1
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45142-20030

RT130,132,TT13#..DLX,STD

2-SPOKE

 2
45146 - SPRING, HORN BUTTON CONTACT
45146-20080

RT130,132,TT13#..DLX,STD

 2
45155 - SPACER, HORN BUTTON CONTACT PLATE
45155-20010

RT130,132,TT13#..DLX,STD

2-SPOKE

 2
45159 - RETAINER, STEERING WHEEL PAD SET
45159-20030

RT130,132,TT13#..DLX,STD

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

RT13#,TT13#,XT130

 1
45207 - RING, HORN CONTACT
45176-30050

RT130,132,TT13#..DLX,STD

2-SPOKE

 1
Common parts
90159-50061
93315-14008
93315-14010
93319-14008
93381-16012
93510-13010
