TT132L-TEHNSW (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 3T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8008)LHD..EUR

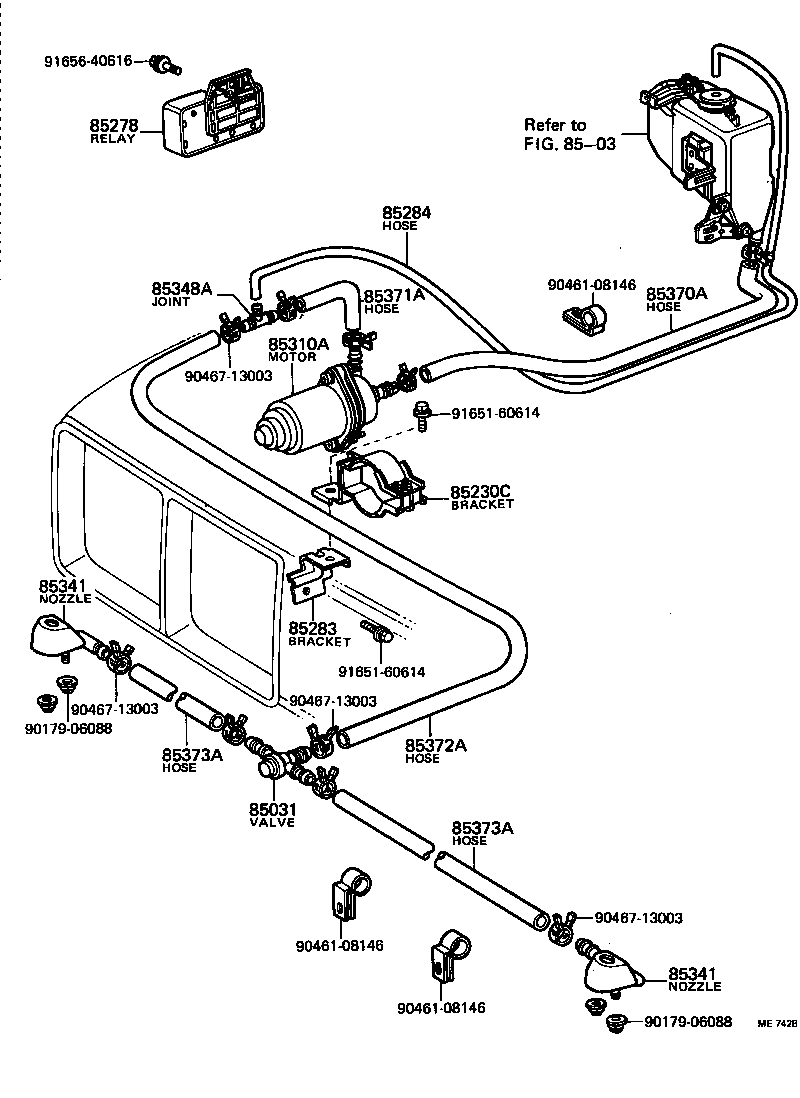

Click highlighted areas on diagram

diagram 8503 85031 85230C 85278 85283 85284 85310A 85341 85341 85348A 85370A 85371A 85372A 85373A 85373A 9017906088 9017906088 9046108146 9046108146 9046108146 9046713003 9046713003 9046713003 9046713003 9165160614 9165160614 9165640616
Part # Description Qty Price
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-12010

TT132..LHD..EUR

 1
85230C - BRACKET ASSY, HEADLAMP CLEANER
85361-20130

TT132..LHD..EUR

 1
85278 - RELAY ASSY, HEADLAMP CLEANER CONTROL
85276-14010

TT132..LHD..EUR

 1
85283 - BRACKET, HEADLAMP CLEANER WASHER
85361-14050

TT132..LHD..EUR

 1
85284 - HOSE ASSY, HEADLAMP CLEANER WASHER
90446-07004

TT132..LHD..EUR

L=1200

 1
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85310-10090

TT132..LHD..EUR

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-20030

TT132..LHD..EUR

 2
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-20030

TT132..LHD..EUR

 2
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85352-20010

TT132..LHD..EUR

 1
85370A - HOSE ASSY, HEADLAMP CLEANER WASHER, NO.1
85271-14040

TT132..LHD..EUR

 1
85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
85271-20020

TT132..LHD..EUR

L=500

 1
85372A - HOSE, HEADLAMP CLEANER (FROM JOINT TO JOINT OR NOZZLE)
90445-14022

TT132..LHD..EUR

*H,L=350

 1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
90445-14039

TT132..LHD..EUR

L=220

 1
90445-14037

TT132..LHD..EUR

*H,L=940

 1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
90445-14039

TT132..LHD..EUR

L=220

 1
90445-14037

TT132..LHD..EUR

*H,L=940

 1
Common parts
90179-06088
90461-08146
90467-13003
91651-60614
91656-40616
Linked diagrams
8503
