TT132L-TEHDS (1978)
Toyota Corona
Production
Sep 1978
-
Dec 1981
Engine
3T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7809- )

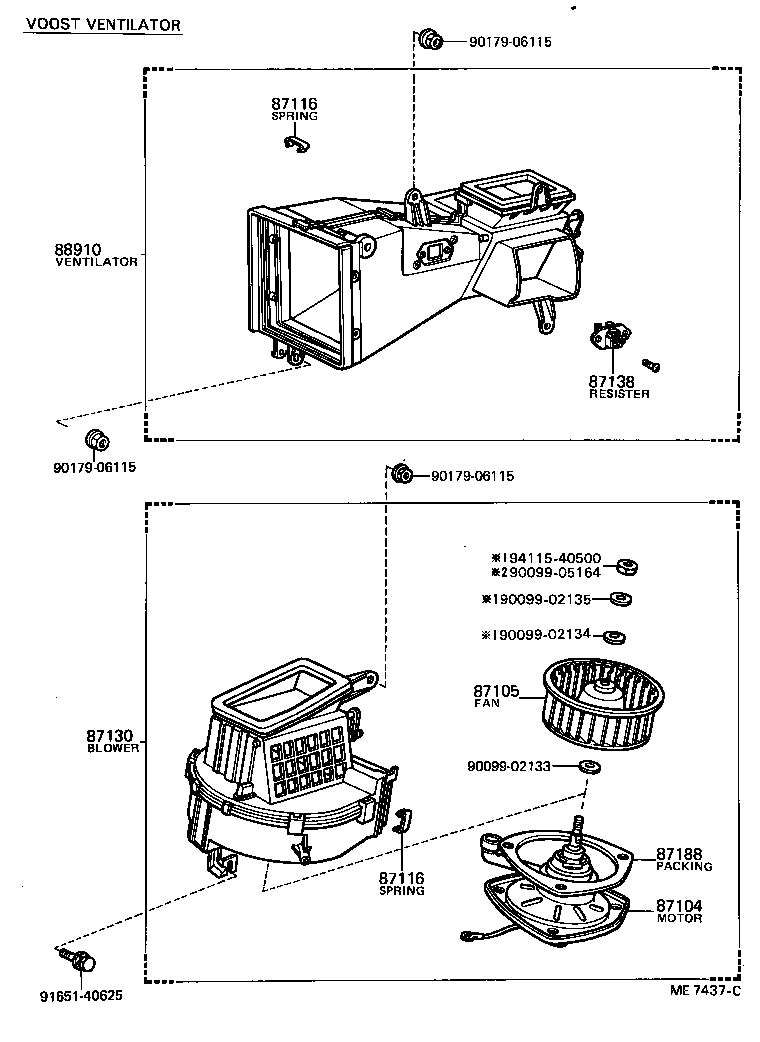

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-14070 |
RT130,132,TT13#..LHD..(EUR,GEN) |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-14030 |
RT130,132,TT13#..LHD..(EUR,GEN) |
1 | ||
| 87116 - SPRING, HEATER CASE FASTENING | ||||
| 87116-14010 |
RT130,132,TT13#..EUR,GEN |
12 | ||
| 87116 - SPRING, HEATER CASE FASTENING | ||||
| 87116-14010 |
RT130,132,TT13#..EUR,GEN |
12 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-20110 |
RT130,132,TT13#..LHD..(EUR,GEN) |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-14040 |
RT13#,TT13#..EUR,GEN |
1 | ||
| 87188 - PACKING, HEATER BLOWER MOTOR | ||||
| 87127-14010 |
RT130,132,TT13#..EUR,GEN |
1 | ||
| 88910 - VENTILATOR ASSY, BOOST | ||||
| 88910-20100 |
RT13#,TT13#..LHD |
1 | ||
| Common parts | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-05164 | ||||
| 90179-06115 | ||||
| 91651-40625 | ||||
| 94115-40500 | ||||
(7809- )

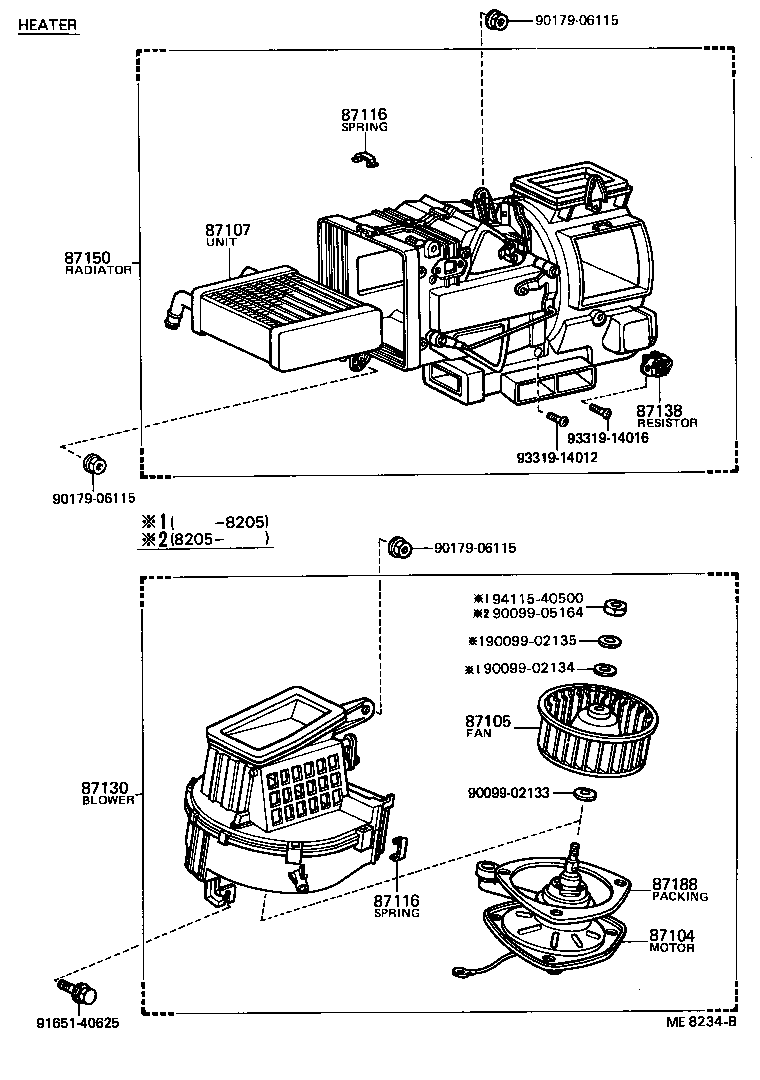

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-14070 |
RT130,132,TT13#..LHD..(EUR,GEN) |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-14030 |
RT130,132,TT13#..LHD..(EUR,GEN) |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-20250 |
RT130,132,TT13#..LHD..(EUR,GEN) |
1 | ||
| 87116 - SPRING, HEATER CASE FASTENING | ||||
| 87116-14010 |
RT130,132,TT13#..EUR,GEN |
12 | ||
| 87116 - SPRING, HEATER CASE FASTENING | ||||
| 87116-14010 |
RT130,132,TT13#..EUR,GEN |
12 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-20110 |
RT130,132,TT13#..LHD..(EUR,GEN) |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-14040 |
RT13#,TT13#..EUR,GEN |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-20220 |
RT13#,TT132..LHD..(EUR,GEN) |
1 | ||
| 87150-20221 |
RT13#,TT13#..LHD..(EUR,GEN) |
1 | ||
| 87188 - PACKING, HEATER BLOWER MOTOR | ||||
| 87127-14010 |
RT130,132,TT13#..EUR,GEN |
1 | ||
| Common parts | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-05164 | ||||
| 90179-06115 | ||||
| 91651-40625 | ||||
| 93319-14012 | ||||
| 93319-14016 | ||||
| 94115-40500 | ||||
