RT132R-TLKDS (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8112)RT13#..RHD

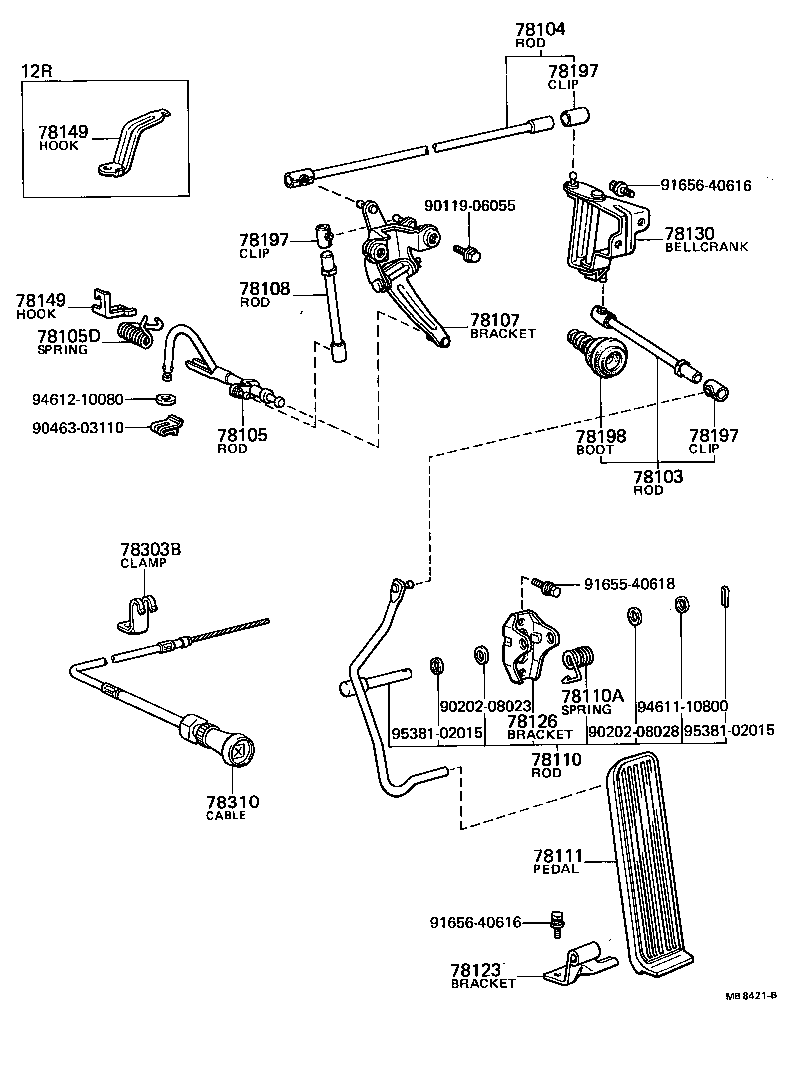

Click highlighted areas on diagram

diagram 78103 78104 78105 78105D 78107 78108 78110 78110A 78111 78123 78126 78130 78149 78149 78197 78197 78197 78198 78303B 78310 9011906055 9020208023 9020208028 9046303110 9165540618 9165640616 9165640616 9461110800 9461210080 9538102015 9538102015
Part # Description Qty Price
78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78103-14905

RT13#..RHD

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-20150

RT13#..RHD..GEN

 1
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78106-20110

RT132..RHD

 1
78105D - SPRING (FOR ACCELERATOR TORQUE ROD)
90508-14013

RT132

 1
78107 - BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD
78170-14030

RT132..RHD

 1
78108 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4
78105-14200

RT130,132..RHD

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-20100

RT130,132..RHD

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26022

RT130,132..RHD

 1
78111 - PEDAL, ACCELERATOR
78111-14010

RT133;RT130,132,TT13#,XT130..RHD

 1
78123 - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-14010

RT133;RT130,132,TT13#,XT130..RHD

 1
78126 - BRACKET, ACCELERATOR PEDAL ROD
78126-20030

RT133;RT130,132..RHD

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78015-20050

RT130,132..RHD

 1
78149 - HOOK, ACCELERATOR TORQUE ROD SPRING
78187-20040

RT132

 1
78149 - HOOK, ACCELERATOR TORQUE ROD SPRING
78187-20040

RT132

 1
78197 - CLIP, ACCELERATOR JOINT BALL
78197-10010

RT130,132

 6
78197 - CLIP, ACCELERATOR JOINT BALL
78197-10010

RT130,132

 6
78197 - CLIP, ACCELERATOR JOINT BALL
78197-10010

RT130,132

 6
78198 - BOOT, ACCELERATOR CONNECTING ROD
78199-14010

RT13#..RHD

 1
Common parts
90119-06055
90202-08023
90202-08028
90463-03110
91655-40618
91656-40616
94611-10800
94612-10080
95381-02015
