RT132R-TLKDS (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
18R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809- )RT132,133..MTM

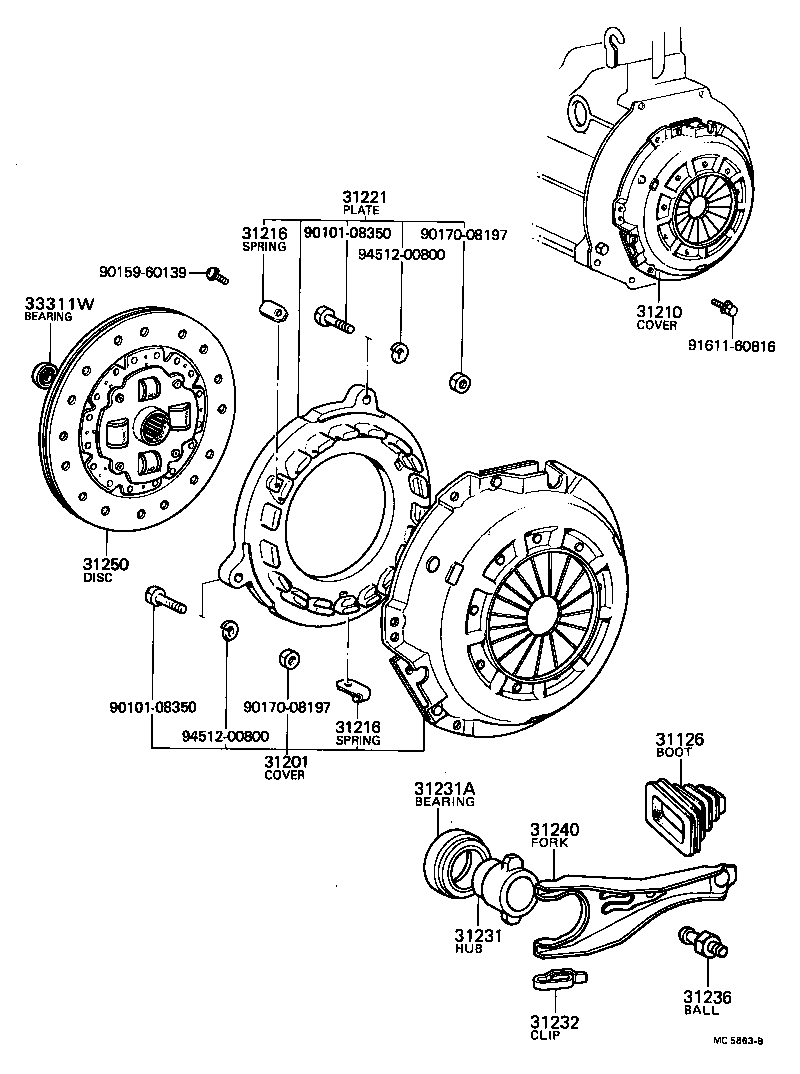

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-20060 |
RT132,133..MTM |
1 | ||
| 31201 - COVER SUB-ASSY, CLUTCH | ||||
| 31201-39046 |
RT132 |
1 | ||
| 31201-39045 |
RT132 |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-30140 |
RT132 |
1 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
RT132,133..MTM |
3 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
RT132,133..MTM |
3 | ||
| 31221 - PLATE, CLUTCH PRESSURE | ||||
| 31221-39025 |
RT132..MTM |
1 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-20070 |
RT132 |
1 | ||
| 31231-20071 |
RT132..MTM |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-40008 |
RT13#,TT13#..MTM |
1 | ||
| 90363-40001 |
RT13#,TT13#..MTM |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-22010 |
RT132,TT133..MTM |
2 | ||
| 31236 - BALL, RELEASE FORK | ||||
| 31236-20020 |
RT132,TT13#..MTM |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31204-20050 |
RT132..MTM |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-22042 |
RT132 |
1 | ||
| 31250-22043 |
RT132 |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 97143-06201 |
RT13#..MTM |
1 | ||
| Common parts | ||||
| 90101-08350 | ||||
| 90159-60139 | ||||
| 90170-08197 | ||||
| 91611-60816 | ||||
| 94512-00800 | ||||
