RT132R-TLKDS (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-7908)3T..MTM ; (7809-7908)3T..3FC..EUR ; (7908-8108)3T..EUR ; (7908-8112)2T,3

Click highlighted areas on diagram

diagram 23100 23100B 23100B 23100C 23100D 23100E 23100E 23121 23122 23123 23123 23152 9091908226
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-39125

18R..RT132

 1
23100B - GASKET, FUEL PUMP
90923-05005

21RC,12R#,18R#..RT13#

 2
23100B - GASKET, FUEL PUMP
90923-05005

21RC,12R#,18R#..RT13#

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

21RC,12R#,18R#..RT13#

 1
23100D - UNION, NIPPLE(FOR FUEL OUTLET)
90404-13105

18R..RT132

 1
90404-51244

18R..RT132

 1
23121 - COVER, FUEL PUMP
23121-41030

18R..RT132

 1
23122 - GASKET, FUEL PUMP COVER
23122-41030

18R..RT132

 1
23123 - SCREW, COVER SET, NO.1
93319-15016

18R..RT132

BODY SET

 6
93319-15014

18R..RT132

COVER SET

 4
23123 - SCREW, COVER SET, NO.1
93319-15016

18R..RT132

BODY SET

 6
93319-15014

18R..RT132

COVER SET

 4
23152 - SPRING, ROCKER ARM
23152-34040

18R..RT132

 1
Common parts
90919-08226

(7809-8205)12R#,18R

Click highlighted areas on diagram

diagram 23100 23100B 23100B 23100C 9161140828
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-39125

18R..RT132

 1
23100B - GASKET, FUEL PUMP
90923-05005

21RC,12R#,18R#..RT13#

 2
23100B - GASKET, FUEL PUMP
90923-05005

21RC,12R#,18R#..RT13#

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

21RC,12R#,18R#..RT13#

 1
Common parts
91611-40828

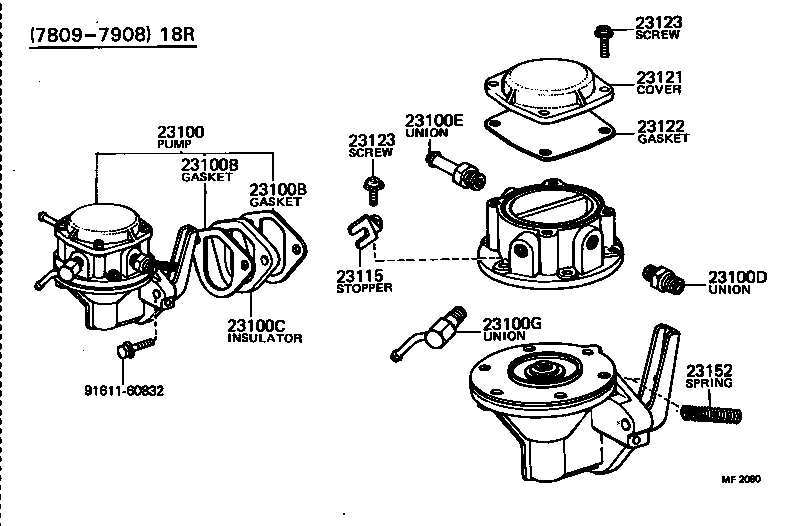

(7809-7908)18R

Click highlighted areas on diagram

diagram 23100 23100B 23100B 23100C 23100D 23100E 23100G 23115 23121 23122 23123 23123 23152 9161160832
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-39125

18R..RT132

 1
23100B - GASKET, FUEL PUMP
90923-05005

21RC,12R#,18R#..RT13#

 2
23100B - GASKET, FUEL PUMP
90923-05005

21RC,12R#,18R#..RT13#

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

21RC,12R#,18R#..RT13#

 1
23100D - UNION, NIPPLE(FOR FUEL OUTLET)
90404-13105

18R..RT132

 1
90404-51244

18R..RT132

 1
23100G - UNION, NIPPLE(FOR FUEL RETURN HOSE)
23116-34030

18R..RT132

 1
23115 - STOPPER, UNION NIPPLE
23115-34032

18R..RT132

 1
23121 - COVER, FUEL PUMP
23121-41030

18R..RT132

 1
23122 - GASKET, FUEL PUMP COVER
23122-41030

18R..RT132

 1
23123 - SCREW, COVER SET, NO.1
93319-15016

18R..RT132

BODY SET

 6
93319-15014

18R..RT132

COVER SET

 4
23123 - SCREW, COVER SET, NO.1
93319-15016

18R..RT132

BODY SET

 6
93319-15014

18R..RT132

COVER SET

 4
23152 - SPRING, ROCKER ARM
23152-34040

18R..RT132

 1
Common parts
91611-60832

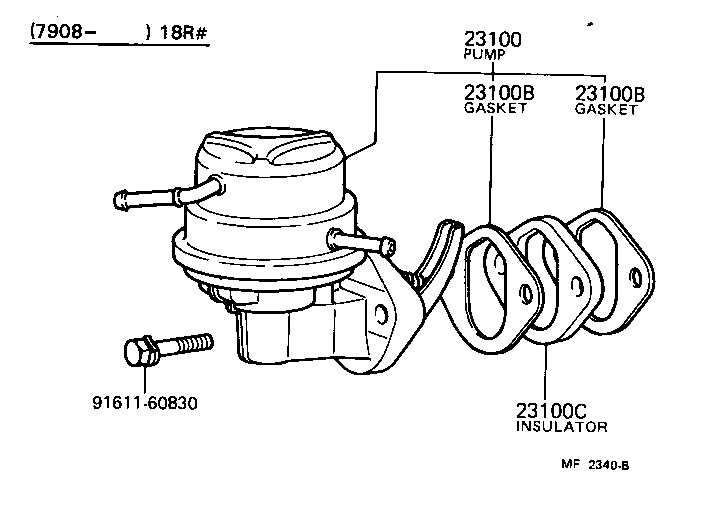

(7908- )18R#

Click highlighted areas on diagram

diagram 23100 23100B 23100B 23100C 9161160830
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-39125

18R..RT132

 1
23100B - GASKET, FUEL PUMP
90923-05005

21RC,12R#,18R#..RT13#

 2
23100B - GASKET, FUEL PUMP
90923-05005

21RC,12R#,18R#..RT13#

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

21RC,12R#,18R#..RT13#

 1
Common parts
91611-60830
