RT132R-TLKDS (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )21RC,18R#

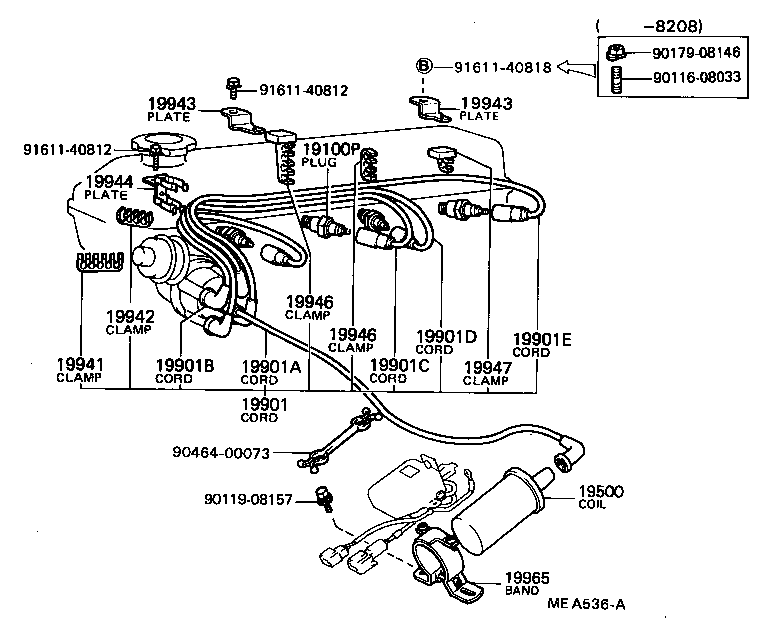

Click highlighted areas on diagram

diagram 19100P 19500 19730 19901 19901A 19901B 19901C 19901D 19901E 19901R 19901R 9011908012 9017904092 9046400020 9165140820
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01059

12R#,18R#..RT130,132

W16EX-U,W16EX-U

 4
90919-01059

12R#,18R#..RT130,132

W16EX-U,W16EX-U

 4
19500 - COIL ASSY, IGNITION
90919-02109

18R..RT132

 1
90919-02109

18R..RT132

 1
19730 - RESISTOR, IGNITION COIL
90919-04032

18R#..RT132

 1
90919-04032

18R#..RT132

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21151

18R..RT132

 1
90919-21151

18R..RT132

 1
19901A - CORD, COIL RESISTIVE
90919-13070

18R..RT132

 1
90919-13070

18R..RT132

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12146

18R..RT132

 1
90919-12146

18R..RT132

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12146

18R..RT132

 1
90919-12146

18R..RT132

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12146

18R..RT132

 1
90919-12146

18R..RT132

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12146

12R#,18R..RT13#

 1
90919-12146

12R#,18R..RT13#

 1
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

12R#,18R#..RT130,132

 2
90202-11067

12R#,18R#..RT130,132

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

12R#,18R#..RT130,132

 2
90202-11067

12R#,18R#..RT130,132

 2
Common parts
90119-08012
90179-04092
90464-00020
91651-40820

(7809- )21RC,18R#

Click highlighted areas on diagram

diagram 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19941 19942 19943 19943 19944 19946 19946 19947 19965 9011608033 9011908157 9017908146 9046400073 9161140812 9161140812 9161140818
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01059

12R#,18R#..RT130,132

W16EX-U,W16EX-U

 4
90919-01059

12R#,18R#..RT130,132

W16EX-U,W16EX-U

 4
19500 - COIL ASSY, IGNITION
90919-02109

18R..RT132

 1
90919-02109

18R..RT132

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21151

18R..RT132

 1
90919-21151

18R..RT132

 1
19901A - CORD, COIL RESISTIVE
90919-13070

18R..RT132

 1
90919-13070

18R..RT132

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12146

18R..RT132

 1
90919-12146

18R..RT132

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12146

18R..RT132

 1
90919-12146

18R..RT132

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12146

18R..RT132

 1
90919-12146

18R..RT132

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12146

12R#,18R..RT13#

 1
90919-12146

12R#,18R..RT13#

 1
Common parts
90116-08033
90119-08157
90179-08146
90464-00073
91611-40812
91611-40818
