RT132R-TLKDS (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )18R#

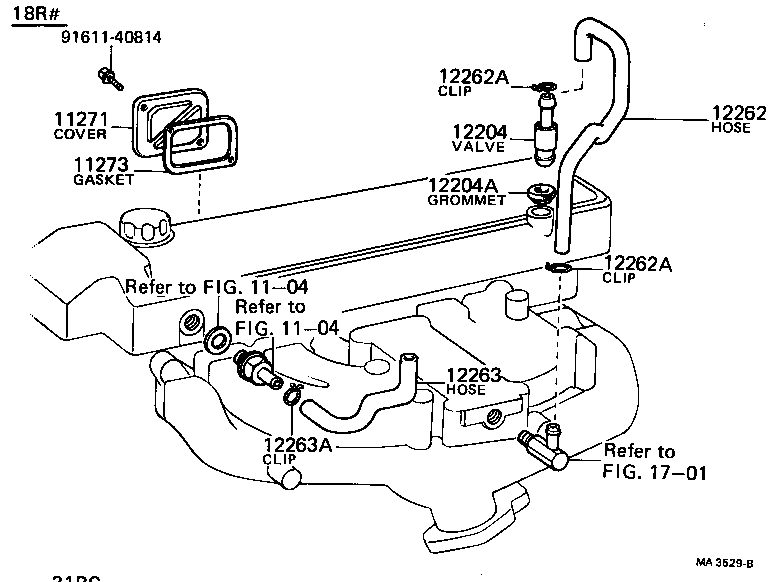

Click highlighted areas on diagram

diagram 1104 1104 11271 11273 12204 12204A 12262 12262A 12262A 12263 12263A 1701 9161140814
Part # Description Qty Price
11271 - COVER, CYLINDER BLOCK SIDE
11271-33010

18R#..RT132

 1
11273 - GASKET, CYLINDER BLOCK SIDE COVER
11273-33010

18R#..RT132

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-34010

18R..RT132

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18180

21RC,12R#,18R#..RT13#

 1
12262 - HOSE, VENTILATION, NO.2
12261-34070

18R..RT132

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

21RC,18R#..RT132,133

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

21RC,18R#..RT132,133

 2
12263 - HOSE, VENTILATION, NO.3
12262-34020

18R#..RT132

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-20020

21RC,18R#..RT132,133

 1
Common parts
91611-40814
Linked diagrams
1104
1701
