RT132R-TEKDS (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

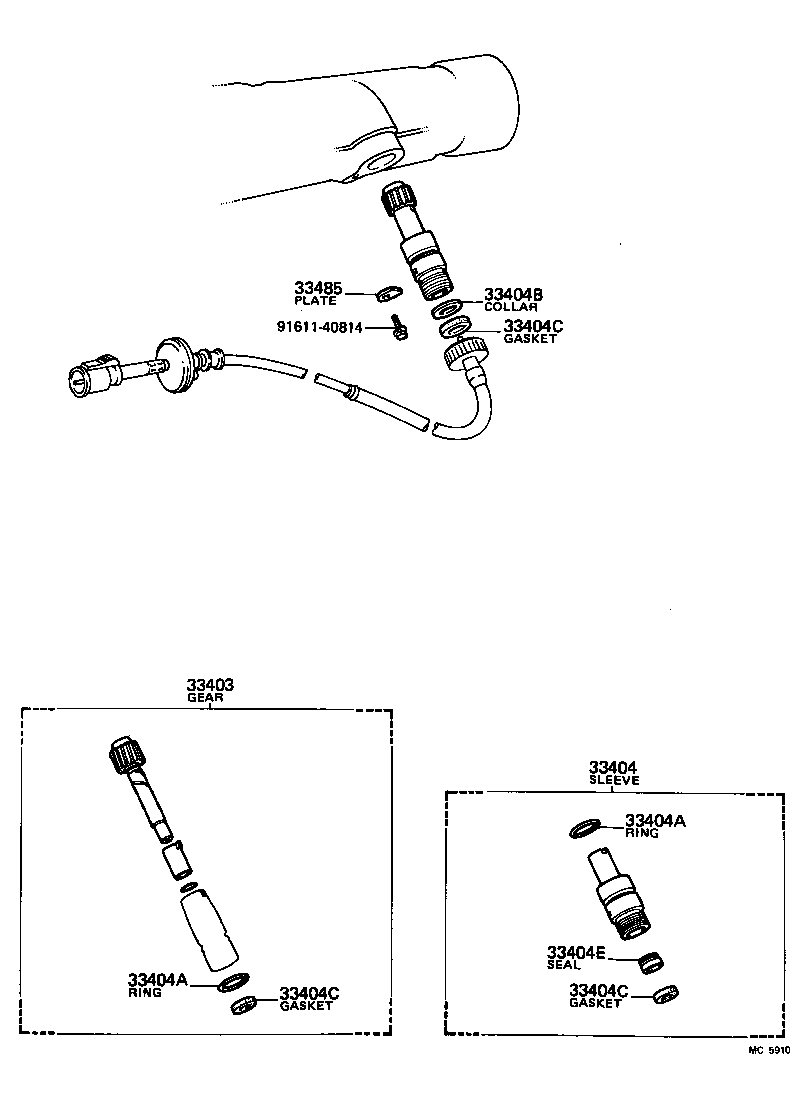

(7809-8008)RT13#,TT132..MTM

Click highlighted areas on diagram

diagram 33403 33404 33404A 33404A 33404B 33404C 33404C 33404C 33404E 33485 9161140814
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-29065

RT132,TT132..(HT,LB,SED)..MTM

N=20,DIFF R=3.909 & 4.100

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-39025

RT13#,TT132..MTM

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

RT13#,TT132..MTM

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

RT13#,TT132..MTM

 1
33404B - COLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)
90201-07069

RT13#,TT132..MTM

 1
33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)
90303-06017

RT13#,TT132..MTM

 1
33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)
90303-06017

RT13#,TT132..MTM

 1
33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)
90303-06017

RT13#,TT132..MTM

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001

RT13#,TT13#..MTM

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-30020

RT13#,TT132..MTM

 1
Common parts
91611-40814

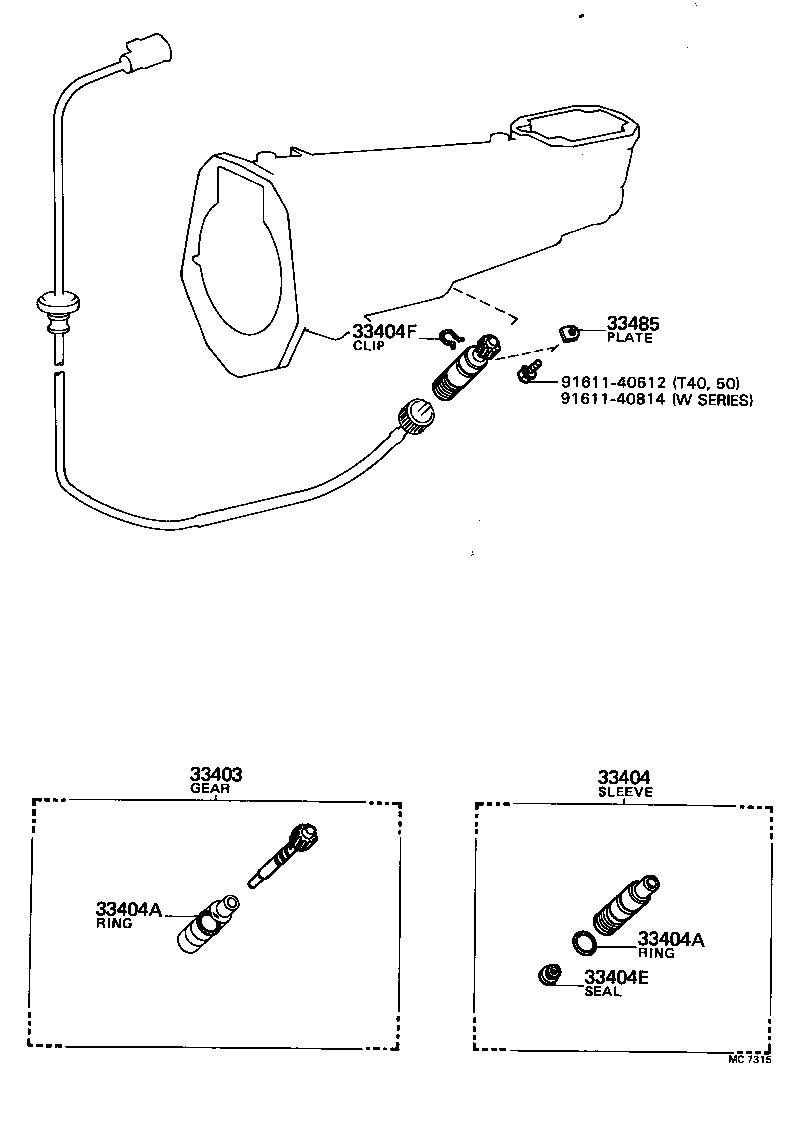

(7908-8008)TT133 ; (8008- )MTM

Click highlighted areas on diagram

diagram 33403 33404 33404A 33404A 33404E 33404F 33485 9161140612 9161140814
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-29065

RT132,TT132..(HT,LB,SED)..MTM

N=20,DIFF R=3.909 & 4.100

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-39025

RT13#,TT132..MTM

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

RT13#,TT132..MTM

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

RT13#,TT132..MTM

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001

RT13#,TT13#..MTM

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-30020

RT13#,TT132..MTM

 1
Common parts
91611-40612
91611-40814
