RT132L-TSKDS (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
18R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809- )HT,SED

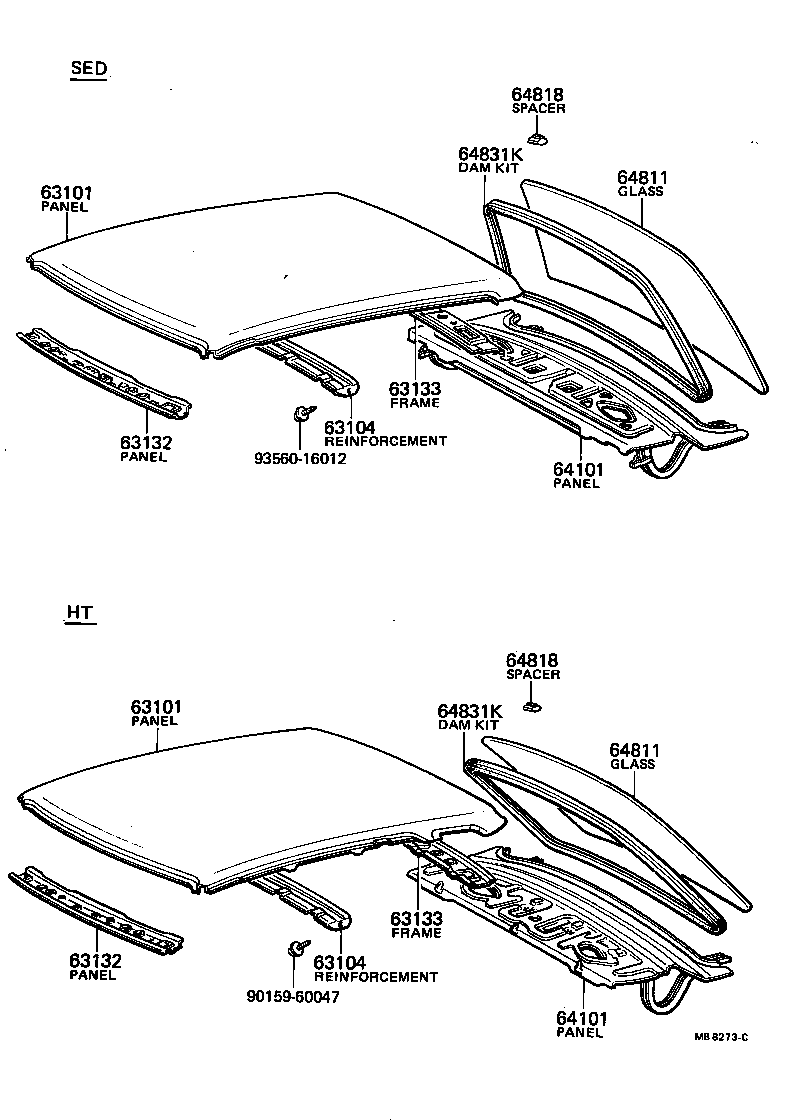

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63101 - PANEL SUB-ASSY, ROOF | ||||
| 63111-95501 |
RT132,TT132..HT |
1 | ||
| 63101 - PANEL SUB-ASSY, ROOF | ||||
| 63111-95501 |
RT132,TT132..HT |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63141-95500 |
RT132,TT132..HT |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63141-95500 |
RT132,TT132..HT |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-95501 |
RT132,TT132..HT |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-95501 |
RT132,TT132..HT |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-95501 |
RT132,TT132..HT |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-95501 |
RT132,TT132..HT |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-95505 |
RT132,TT132..HT |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-95505 |
RT132,TT132..HT |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-95505 |
RT132,TT132..HT *EHTT,T=4.0 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-95505 |
RT132,TT132..HT *EHTT,T=4.0 |
1 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 64818-20010 |
RT13#,TT13#,XT130..HT,SED |
1 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 64818-20010 |
RT13#,TT13#,XT130..HT,SED |
1 | ||
| 64831K - DAM KIT, BACK WINDOW GLASS | ||||
| 56117-95801 |
RT132..HT |
1 | ||
| 64831K - DAM KIT, BACK WINDOW GLASS | ||||
| 56117-95801 |
RT132..HT |
1 | ||
| Common parts | ||||
| 90159-60047 | ||||
| 93560-16012 | ||||
