RT132L-TSKDS (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
18R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809-7901)18R

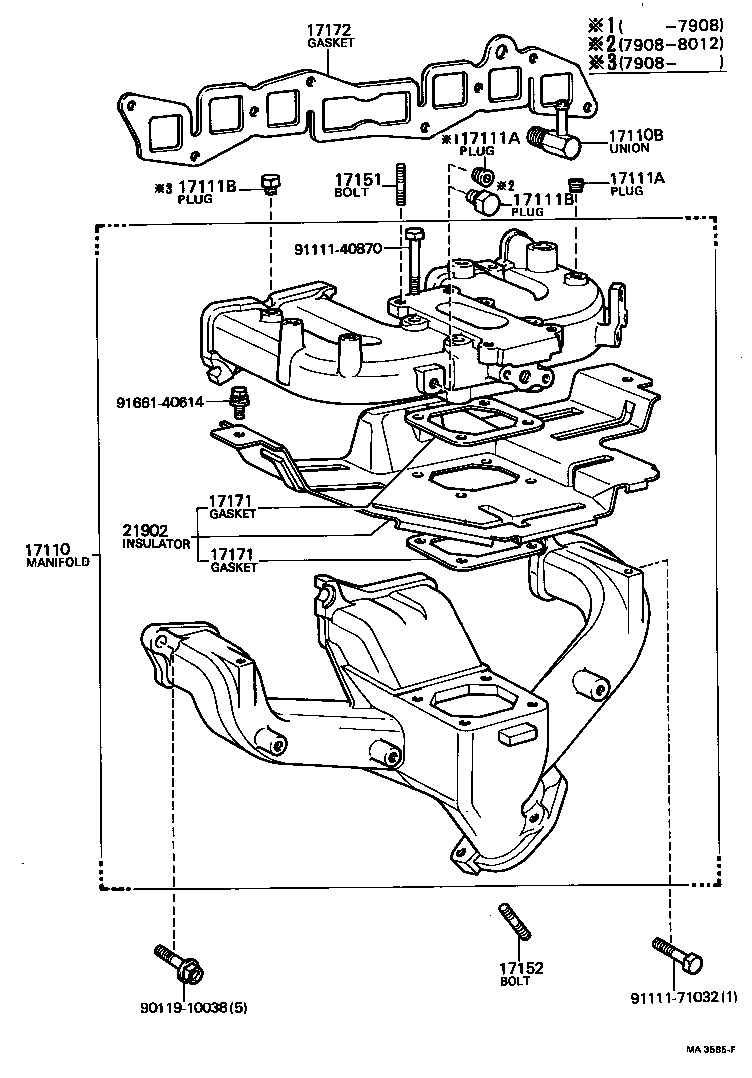

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17110 - MANIFOLD ASSY | ||||
| 17110-34052 |
18R..RT132 |
1 | ||
| 17110-34051 |
18R..RT132 |
1 | ||
| 17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD) | ||||
| 90407-10040 |
18R..RT132 |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90344-51001 |
18R..RT132 |
2 | ||
| 90344-51010 |
18R#..RT132 |
1 | ||
| 90344-51001 |
18R#..RT132 |
2 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08052 |
18R#..RT132 L=53,S=14&14 |
4 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10017 |
18R#..RT132 L=41,S=14&21 |
3 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-34020 |
18R..RT132 |
1 | ||
| 17172 - GASKET, MANIFOLD TO CYLINDER HEAD | ||||
| 17172-34020 |
18R#..RT132 |
1 | ||
| Common parts | ||||
| 90119-10038 | ||||
| 91111-40870 | ||||
| 91111-71032 | ||||
(7901- )18R#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17110 - MANIFOLD ASSY | ||||
| 17110-34052 |
18R..RT132 |
1 | ||
| 17110-34052 |
18R..RT132 |
1 | ||
| 17110-34051 |
18R..RT132 |
1 | ||
| 17110-34051 |
18R..RT132 |
1 | ||
| 17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD) | ||||
| 90407-10040 |
18R..RT132 |
1 | ||
| 90407-10040 |
18R..RT132 |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90344-51001 |
18R..RT132 |
2 | ||
| 90344-51001 |
18R..RT132 |
2 | ||
| 90344-51010 |
18R#..RT132 |
1 | ||
| 90344-51010 |
18R#..RT132 |
1 | ||
| 90344-51001 |
18R#..RT132 |
2 | ||
| 90344-51001 |
18R#..RT132 |
2 | ||
| 17111A - PLUG, NO.1 | ||||
| 90344-51001 |
18R..RT132 |
2 | ||
| 90344-51001 |
18R..RT132 |
2 | ||
| 90344-51010 |
18R#..RT132 |
1 | ||
| 90344-51010 |
18R#..RT132 |
1 | ||
| 90344-51001 |
18R#..RT132 |
2 | ||
| 90344-51001 |
18R#..RT132 |
2 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08052 |
18R#..RT132 L=53,S=14&14 |
4 | ||
| 90116-08052 |
18R#..RT132 L=53,S=14&14 |
4 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10017 |
18R#..RT132 L=41,S=14&21 |
3 | ||
| 90116-10017 |
18R#..RT132 L=41,S=14&21 |
3 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-34020 |
18R..RT132 |
1 | ||
| 17171-34020 |
18R..RT132 |
1 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-34020 |
18R..RT132 |
1 | ||
| 17171-34020 |
18R..RT132 |
1 | ||
| 17172 - GASKET, MANIFOLD TO CYLINDER HEAD | ||||
| 17172-34020 |
18R#..RT132 |
1 | ||
| 17172-34020 |
18R#..RT132 |
1 | ||
| Common parts | ||||
| 90119-10038 | ||||
| 91111-40870 | ||||
| 91111-71032 | ||||
| 91661-40614 | ||||
