RT132L-TEKRSY (1978)
Toyota Corona
Production
Sep 1978
-
May 1982
Engine
18R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809-8205)RT13#..LHD

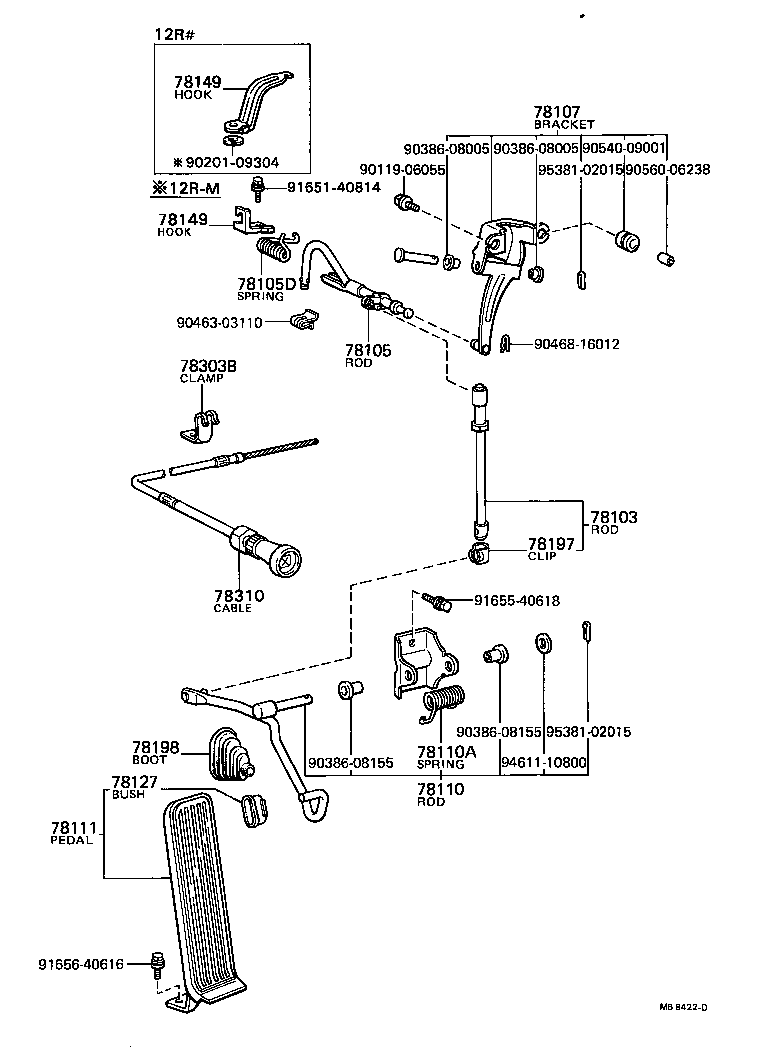

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1 | ||||
| 78103-20100 |
RT130,132..LHD |
1 | ||
| 78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3 | ||||
| 78106-20120 |
RT132..LHD |
1 | ||
| 78105D - SPRING (FOR ACCELERATOR TORQUE ROD) | ||||
| 90508-14013 |
RT132 |
1 | ||
| 78107 - BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD | ||||
| 78170-14080 |
RT132..LHD |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-20090 |
RT130,132..LHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-23007 |
RT13#..LHD |
1 | ||
| 90508-26029 |
RT130,132..LHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78010-20040 |
RT130,132,TT13#..LHD |
1 | ||
| 78127 - BUSH, ACCELERATOR PEDAL, NO.2 | ||||
| 78127-20010 |
RT130,132,TT13#..LHD |
1 | ||
| 78149 - HOOK, ACCELERATOR TORQUE ROD SPRING | ||||
| 78187-20040 |
RT132 |
1 | ||
| 78149 - HOOK, ACCELERATOR TORQUE ROD SPRING | ||||
| 78187-20040 |
RT132 |
1 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-10010 |
RT130,132 |
6 | ||
| 78198 - BOOT, ACCELERATOR CONNECTING ROD | ||||
| 78199-22020 |
RT130,132..LHD |
1 | ||
| Common parts | ||||
| 90119-06055 | ||||
| 90201-09304 | ||||
| 90386-08005 | ||||
| 90386-08155 | ||||
| 90463-03110 | ||||
| 90468-16012 | ||||
| 90540-09001 | ||||
| 90560-06238 | ||||
| 91651-40814 | ||||
| 91655-40618 | ||||
| 91656-40616 | ||||
| 94611-10800 | ||||
| 95381-02015 | ||||
