RT132L-TEKDS (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
18R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809-8008)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20140 |
RT13#,TT13#..ARL,EUR,GEN |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20140 |
RT13#,TT13#..ARL,EUR,GEN |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20070 |
RT13#,TT13#..ARL,EUR,GEN |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20070 |
RT13#,TT13#..ARL,EUR,GEN |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-20070 |
RT132,TT13# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-20070 |
RT132,TT13# |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-20090 |
RT13#,TT13#..ARL,EUR,GEN |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-20090 |
RT13#,TT13#..ARL,EUR,GEN |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-20410 |
RT132,TT13# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-20410 |
RT132,TT13# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-20420 |
RT132,TT13# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-20420 |
RT132,TT13# |
1 | ||
| Common parts | ||||
| 88467-20030 | ||||
| 88469-22010 | ||||
| 88718-14280 | ||||
| 88718-20310 | ||||
| 88718-20320 | ||||
| 90099-32073 | ||||
| 90119-06003 | ||||
| 90179-06032 | ||||
| 93385-18016 | ||||
| 93540-55010 | ||||
| 94521-00600 | ||||
(7809-8205)RT132,TT13#..LHD

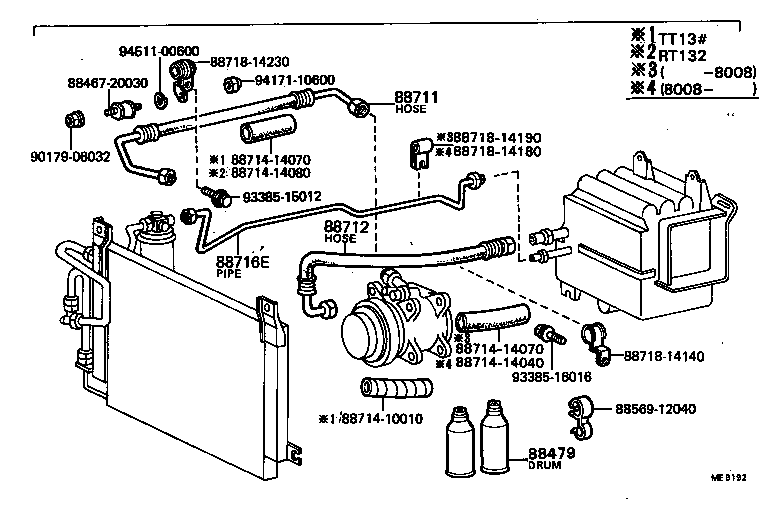

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
RT13#,TT13#..ARL,EUR,GEN 400G |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-20210 |
RT13#..ARL,GEN |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-20110 |
RT132..LHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-14400 |
RT132,TT13#..LHD |
1 | ||
| Common parts | ||||
| 88467-20030 | ||||
| 88569-12040 | ||||
| 88714-10010 | ||||
| 88714-14040 | ||||
| 88714-14070 | ||||
| 88714-14080 | ||||
| 88718-14140 | ||||
| 88718-14180 | ||||
| 88718-14190 | ||||
| 88718-14230 | ||||
| 90179-06032 | ||||
| 93385-15012 | ||||
| 93385-16016 | ||||
| 94171-10600 | ||||
| 94511-00600 | ||||
