RT118L-KRFC (1975)
Toyota Corona
Production
Sep 1975
-
Aug 1978
Engine
18RC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

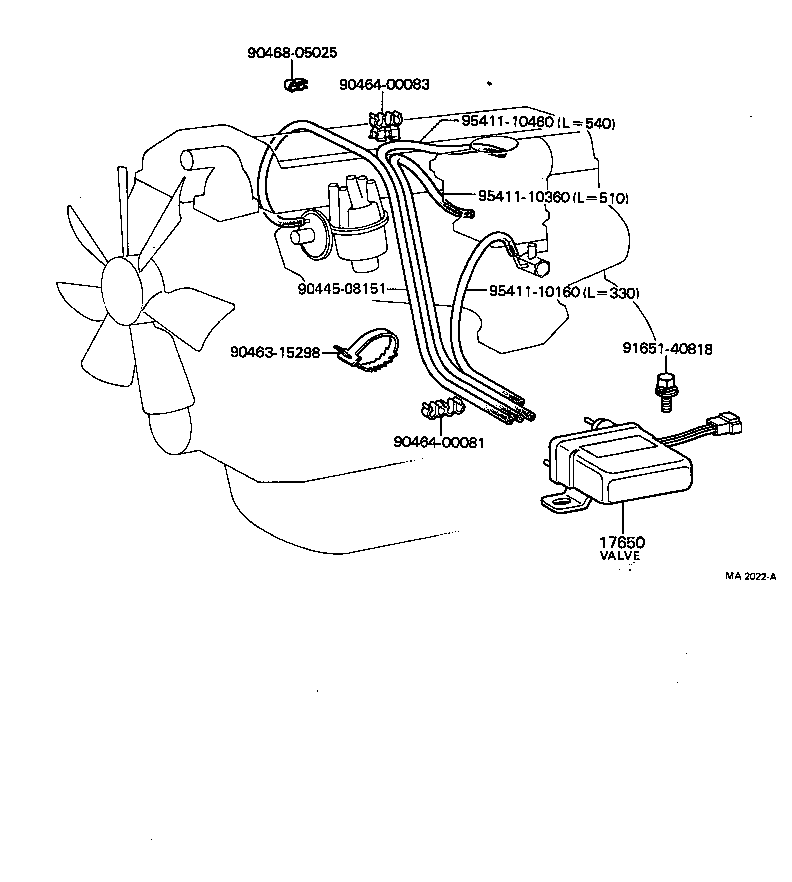

(7509-7606)18RC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 17650-34071 |
18RC..RT104,118 |
1 | ||
| Common parts | ||||
| 90445-08151 | ||||
| 90463-15298 | ||||
| 90464-00081 | ||||
| 90464-00083 | ||||
| 90468-05025 | ||||
| 91651-40818 | ||||
| 95411-10160 | ||||
| 95411-10360 | ||||
| 95411-10460 | ||||

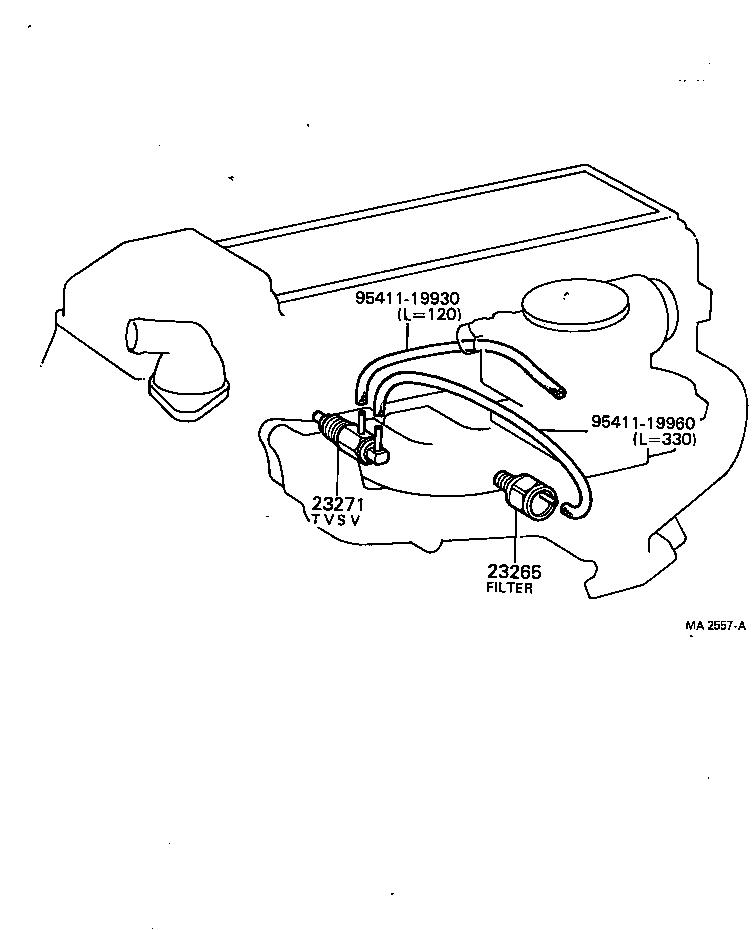

(7604-7704)18R..RT104,118..ARL ; (7606-7706)18RC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11012 |
18RC..RT104,118 |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02037 |
18RC..RT104,118 |
1 | ||
| Common parts | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||

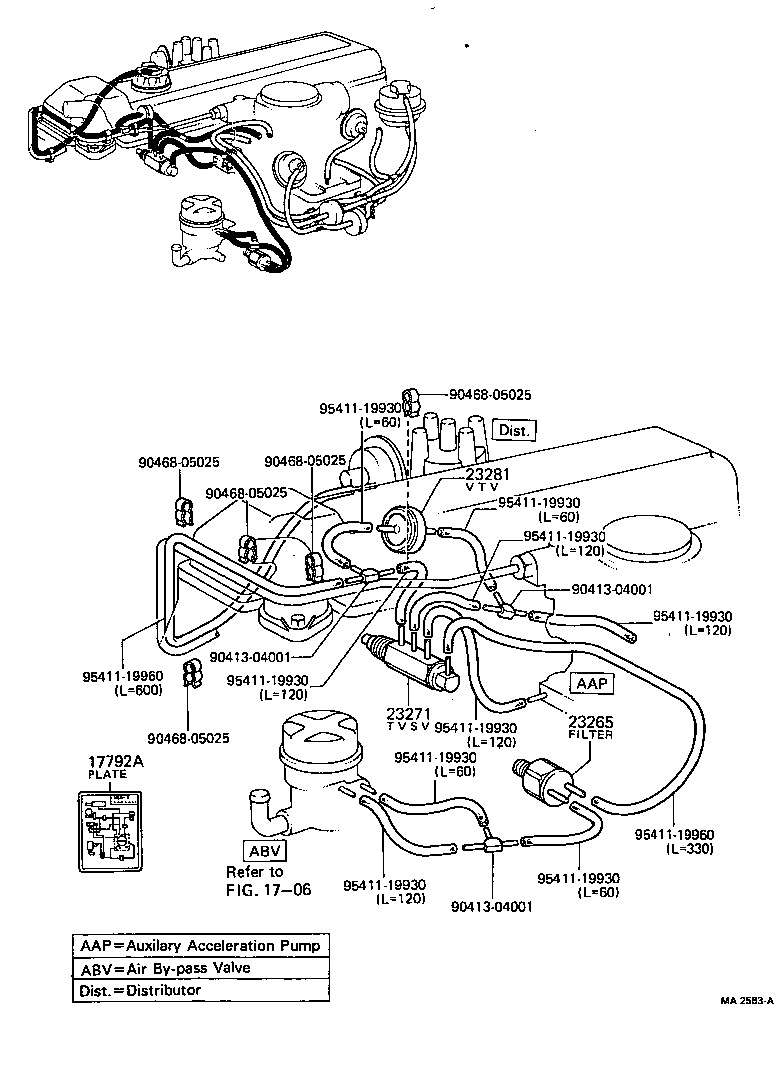

(7706-7808)18RC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11012 |
18RC..RT104,118 |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02037 |
18RC..RT104,118 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01029 |
18RC..RT104,118 |
1 | ||
| Common parts | ||||
| 90413-04001 | ||||
| 90468-05025 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 1706 | ||||

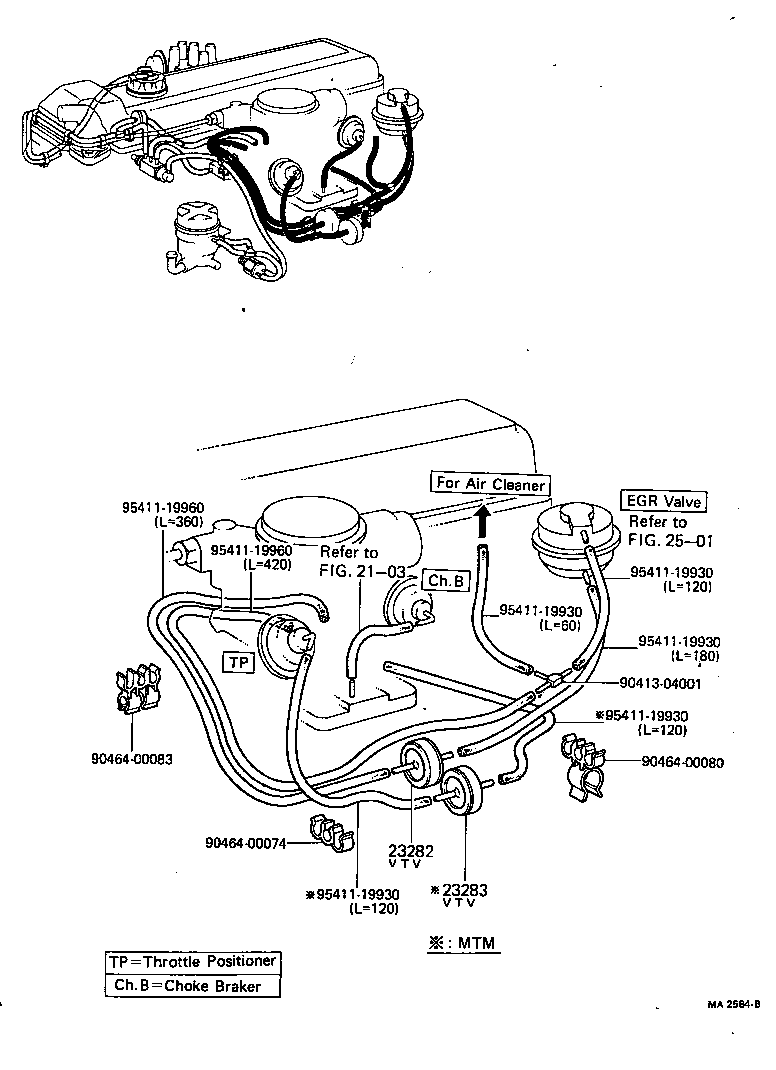

(7706-7808)18RC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01019 |
18RC..RT104,118..MTM |
1 | ||
| Common parts | ||||
| 90413-04001 | ||||
| 90464-00074 | ||||
| 90464-00080 | ||||
| 90464-00083 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 2103 | ||||
| 2501 | ||||
(7308-7905)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90414-04002 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90925-01004 | ||||
| 90925-01005 | ||||
| 90925-01006 | ||||
| 90925-01008 | ||||
| 90925-01018 | ||||
| 90925-01019 | ||||
| 90925-01021 | ||||
| 90925-01026 | ||||
| 90925-01027 | ||||
| 90925-01029 | ||||
| 90925-01042 | ||||
| 90925-01043 | ||||
| 90925-01053 | ||||
| 90925-01054 | ||||
| 90925-01062 | ||||
| 90925-01064 | ||||
