RT118L-KRF (1975)

Toyota Corona

Production Sep 1975 - May 1979
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)RT116,117,118

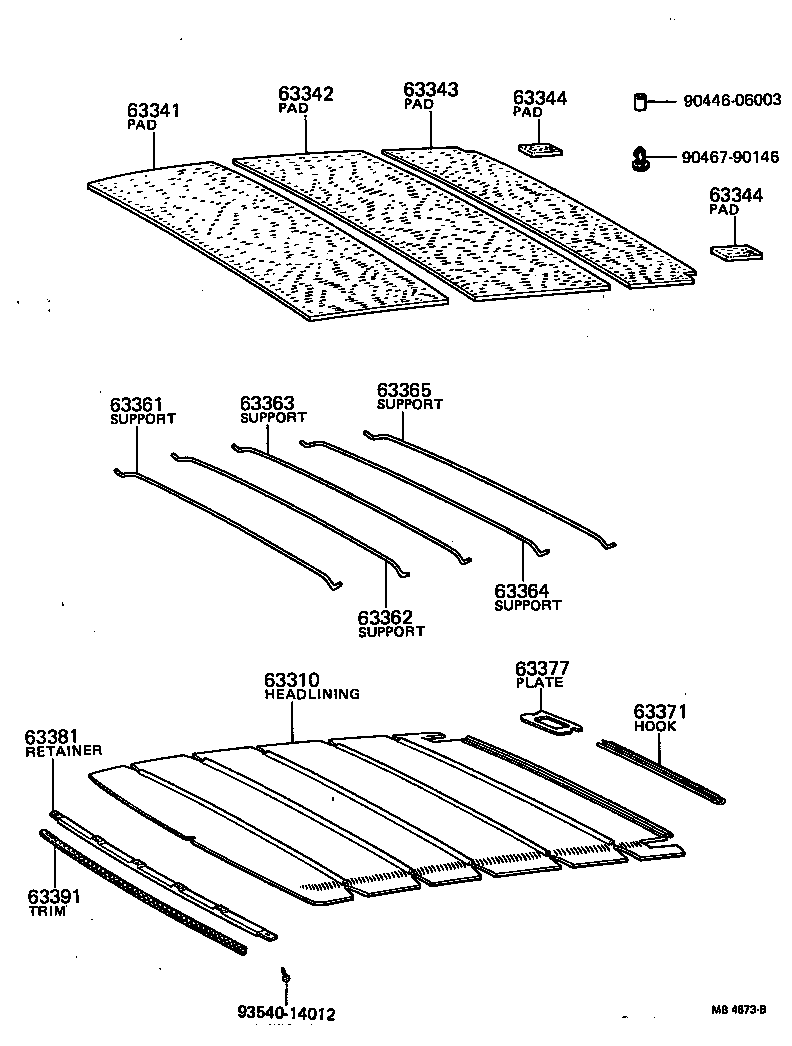

Click highlighted areas on diagram

diagram 63310 63341 63342 63343 63344 63344 63361 63362 63363 63364 63365 63371 63377 63381 63391 9044606003 9046790146 9354014012
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63311-2101003

RT116,117,118

GRAY,GRAY,TRIM1#

 1
63311-2101013

RT116,118

GRAY,GRAY,TRIM1#

 1
63311-2101005

RT116,118

BEIGE,BEIGE,TRIM4#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-21010

RT116,117,118

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-21010

RT116,118

 1
63342-21010

RT116,117,118

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-21010

RT116,117,118

 1
63344 - PAD, ROOF SILENCER, NO.4
63352-21010

RT116,117,118

 2
63344 - PAD, ROOF SILENCER, NO.4
63352-21010

RT116,117,118

 2
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-21010

RT116,117,118

L=950

 1
63361-21010

RT116,118

L=950

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63361-21010

RT116,117,118

L=950

 1
63361-21010

RT116,118

L=950

 1
63363 - SUPPORT, ROOF HEADLINING, NO.3
63361-21010

RT116,117,118

L=950

 1
63361-21010

RT116,118

L=950

 1
63364 - SUPPORT, ROOF HEADLINING, NO.4
63361-21010

RT116,118

L=950

 1
63361-21010

RT116,117,118

L=950

 1
63365 - SUPPORT, ROOF HEADLINING, NO.5
63361-21010

RT116,117,118

 1
63371 - HOOK, ROOF HEADLINING SUPPORT
63371-21010

RT116,117,118

 1
63377 - PLATE, REAR ROOM LAMP
63377-21010

RT116,117,118

 1
63381 - RETAINER, HEADLINING, FRONT
63372-21010

RT116,117,118

FOR HANGING CLOTHLINING

 1
63372-21010

RT116,118

FOR HANGING CLOTH LINING

 1
63372-21010

RT116,118

FOR HANGING CLOTHLINING

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-2101003

RT116,117,118

FOR HANGING CLOTH LINING,GRAY,TRIM1#

 1
63391-2101003

RT116,118

FOR HANGING CLOTH LINING,GRAY,TRIM1#

 1
63391-2101005

RT116,118

FOR HANGING CLOTH LINING,BEIGE,BEIGE,TRIM4#

 1
63391-2101001

RT116,118

FOR HAGING CLOTH LINING,BLACK,BLACK,TRIM2#

 1
Common parts
90446-06003
90467-90146
93540-14012
