RT118-KRF (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)RT114..SA ; (7308-7905)RT104..4F..SA; (7705-7905)RT118..RHD..GEN

Click highlighted areas on diagram

RT118KRF..NEWZEALAND

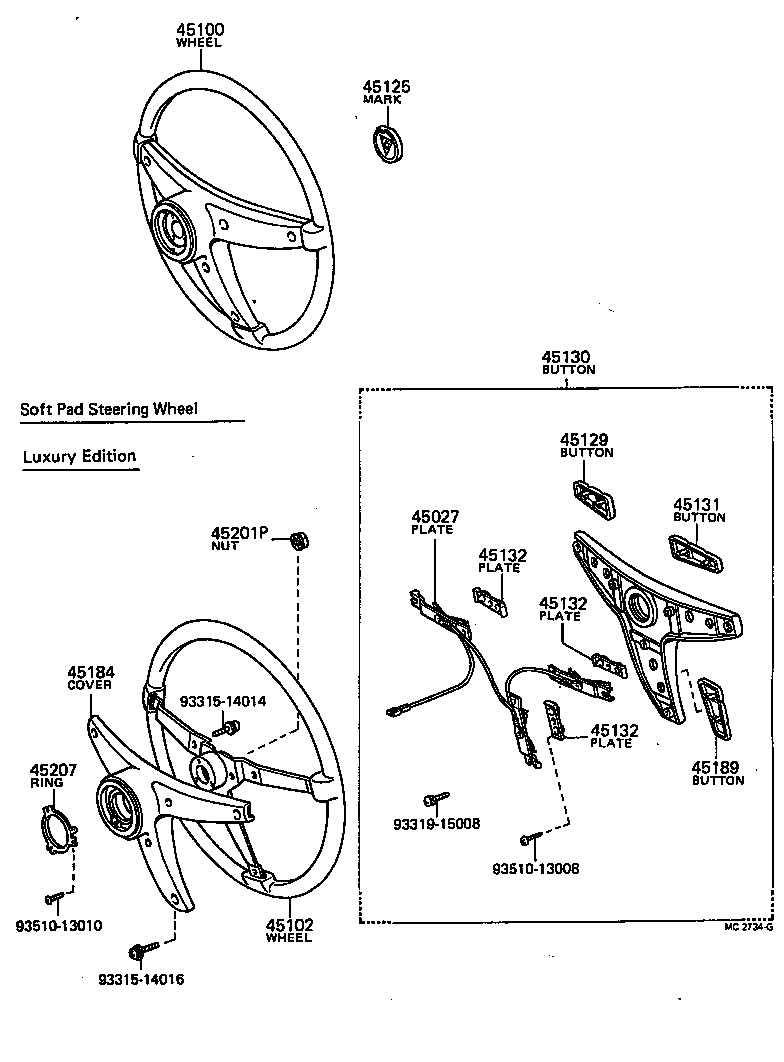

diagram 45027 45100 45102 45125 45129 45130 45131 45132 45132 45132 45184 45189 45201P 45207 9331514014 9331514016 9331915008 9351013008 9351013010
Part # Description Qty Price
45027 - PLATE SUB-ASSY, HORN BUTTON
45027-20010

RT100,102,11#;RT104..3FC..SA;RT104..ARL,EUR,GEN

 1
45100 - WHEEL ASSY, STEERING
45100-20130

RT104..ARL;RT104..3FC..SA;RT100,102,112,116,117,118

 1
45102 - WHEEL SUB-ASSY, STEERING
45102-20121

RT100,102,11#;RT104..3FC..SA;RT104..ARL,EUR,GEN

 1
45125 - MARK, STEERING WHEEL PAD
45125-20050

RT100,102,11#;RT104..3FC..SA;RT104..ARL,EUR,GEN

 1
45129 - BUTTON, HORN, NO.2
45129-20030

RT100,102,11#;RT104..3FC..SA;RT104..ARL,EUR,GEN

 1
45130 - BUTTON ASSY, HORN
45130-20090

RT100,102,11#;RT104..3FC..SA;RT104..ARL,EUR,GEN

 1
45131 - BUTTON, HORN, NO.1
45129-20030

RT100,102,11#;RT104..3FC..SA;RT104..ARL,EUR,GEN

 1
45132 - PLATE, HORN BUTTON BACK
45132-20020

RT10#,11#

 3
45132 - PLATE, HORN BUTTON BACK
45132-20020

RT10#,11#

 3
45132 - PLATE, HORN BUTTON BACK
45132-20020

RT10#,11#

 3
45189 - BUTTON, HORN, NO.3
45131-20080

RT100,102,11#;RT104..3FC..SA;RT104..ARL,EUR,GEN

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

RT10#,11#

 1
45207 - RING, HORN CONTACT
45176-20030

RT10#,11#

 1
Common parts
93315-14014
93315-14016
93319-15008
93510-13008
93510-13010
