RT118-KRF (1975)
Toyota Corona
Production
Sep 1975
-
Aug 1978
Engine
18R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7308-7808)RT116,117,118

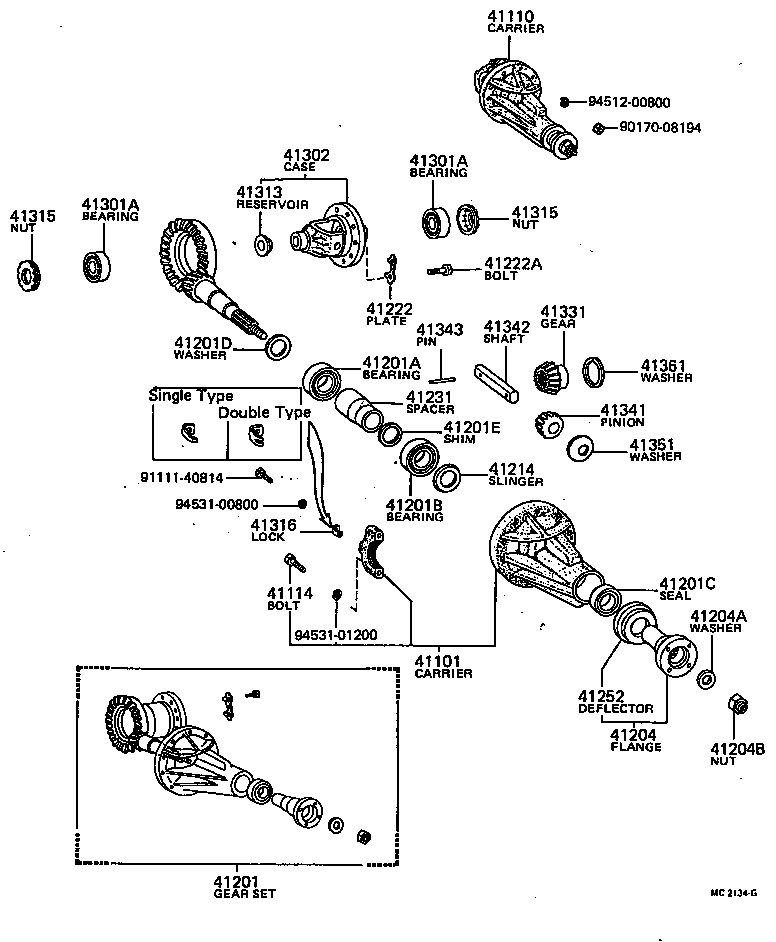

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-20241 |
RT118..EUR,GEN *FGR=41:10=4.100,R=41:10=4.100,7.1 IN. |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-39217 |
RT118..EUR,GEN R=41:10=4.100,7.1 IN. |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18060 |
RT10#,11# |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-30030 |
RT10#,11# |
4 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
RT10#,11# |
10 | ||
| Common parts | ||||
| 90170-08194 | ||||
| 91111-40814 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
| 94531-01200 | ||||
(7308-7610)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08235 |
RT10#,11# S=12 & 15,L=34 |
10 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-21040 |
RT116,117,118 |
1 | ||
| 42110-23020 |
RT116,118 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18049 |
RT10#,11# |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
RT10#,11# |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03023 |
RT116,117,118 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
RT10#,11# |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
RT10#,11# |
1 | ||
| 42110K - GASKET KIT, DIFFERENTIAL CARRIER | ||||
| 04412-22050 |
RT116,117,118 |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-30010 |
RT116,117,118 |
1 | ||
