Toyota Corona RT118 HEATING & AIR CONDITIONING - VACUUM PIPING

Manufacturers Home
Toyota
EU
CORONA
RT118-HRFQ (1973)
8717 - HEATING & AIR CONDITIONING - VACUUM PIPING

RT118-HRFQ (1973)

Toyota Corona

Production Aug 1973 - May 1979

Engine 18R

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

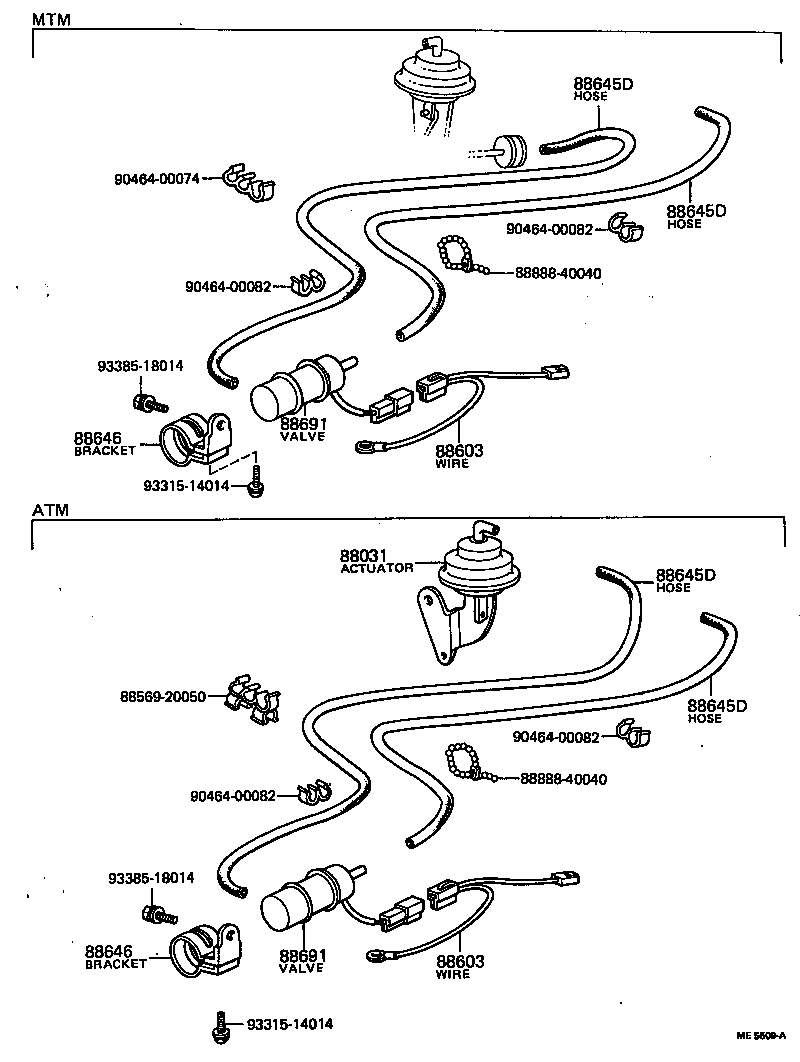

(7604-7701)ARL

Click highlighted areas on diagram

Part #	Description	Period	Qty
88031 - ACTUATOR SET, IDLE-UP
21099-36110	RT104,118..3FC..ARL	01/1977 - 05/1979	1
88686-20040	RT104,118..3FC..ARL	04/1976 - 01/1977	1
88031-22080	RT102,104,114,118..RHD	01/1977 - 05/1979	1
88603 - WIRE, IDLE UP DEVICE
88648-20110	RT104,118..ARL	04/1976 - 01/1977	1
88603 - WIRE, IDLE UP DEVICE
88648-20110	RT104,118..ARL	04/1976 - 01/1977	1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10095	RT104,118..ARL *H,L=750,MARK=#0	04/1976 - 01/1977	1
95411-10095	RT102,104,114,118..RHD *H,L=650,MARK=#0	01/1977 - 05/1979	1
95411-19995	RT104,118..RHD..(3FC,5F);RT104..RHD..4F..(EUR,GEN,SA);RT102,114,118..RHD..(EUR,GEN,SA) H,L=650,MARK=#	01/1977 - 05/1979	1
95411-10060	RT104,118..3FC..ARL *H,L=600,MARK=#0	01/1977 - 05/1979	1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10095	RT104,118..ARL *H,L=750,MARK=#0	04/1976 - 01/1977	1
95411-10095	RT102,104,114,118..RHD *H,L=650,MARK=#0	01/1977 - 05/1979	1
95411-19995	RT104,118..RHD..(3FC,5F);RT104..RHD..4F..(EUR,GEN,SA);RT102,114,118..RHD..(EUR,GEN,SA) H,L=650,MARK=#	01/1977 - 05/1979	1
95411-10060	RT104,118..3FC..ARL *H,L=600,MARK=#0	01/1977 - 05/1979	1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10095	RT104,118..ARL *H,L=750,MARK=#0	04/1976 - 01/1977	1
95411-10095	RT102,104,114,118..RHD *H,L=650,MARK=#0	01/1977 - 05/1979	1
95411-19995	RT104,118..RHD..(3FC,5F);RT104..RHD..4F..(EUR,GEN,SA);RT102,114,118..RHD..(EUR,GEN,SA) H,L=650,MARK=#	01/1977 - 05/1979	1
95411-10060	RT104,118..3FC..ARL *H,L=600,MARK=#0	01/1977 - 05/1979	1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10095	RT104,118..ARL *H,L=750,MARK=#0	04/1976 - 01/1977	1
95411-10095	RT102,104,114,118..RHD *H,L=650,MARK=#0	01/1977 - 05/1979	1
95411-19995	RT104,118..RHD..(3FC,5F);RT104..RHD..4F..(EUR,GEN,SA);RT102,114,118..RHD..(EUR,GEN,SA) H,L=650,MARK=#	01/1977 - 05/1979	1
95411-10060	RT104,118..3FC..ARL *H,L=600,MARK=#0	01/1977 - 05/1979	1
88646 - BRACKET, IDLE UP DEVICE, NO.1
88688-12010	RT104,118..ARL	04/1976 - 01/1977	1
88646 - BRACKET, IDLE UP DEVICE, NO.1
88688-12010	RT104,118..ARL	04/1976 - 01/1977	1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-14030	RT104,118..ARL	04/1976 - 01/1977	1
88690-20090	RT102,104,114,118..RHD	01/1977 - 05/1979	1
88690-20130	RT104,118..3FC..ARL	01/1977 - 05/1979	1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-14030	RT104,118..ARL	04/1976 - 01/1977	1
88690-20090	RT102,104,114,118..RHD	01/1977 - 05/1979	1
88690-20130	RT104,118..3FC..ARL	01/1977 - 05/1979	1
Common parts
88569-20050
88888-40040
90464-00074
90464-00082
93315-14014
93385-18014

(7701-7905)RT102,104,114,118..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
88031 - ACTUATOR SET, IDLE-UP
21099-36110	RT104,118..3FC..ARL	01/1977 - 05/1979	1
88686-20040	RT104,118..3FC..ARL	04/1976 - 01/1977	1
88031-22080	RT102,104,114,118..RHD	01/1977 - 05/1979	1
88031 - ACTUATOR SET, IDLE-UP
21099-36110	RT104,118..3FC..ARL	01/1977 - 05/1979	1
88686-20040	RT104,118..3FC..ARL	04/1976 - 01/1977	1
88031-22080	RT102,104,114,118..RHD	01/1977 - 05/1979	1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04001	RT102,104,114,118..RHD	01/1977 - 05/1979	1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10095	RT104,118..ARL *H,L=750,MARK=#0	04/1976 - 01/1977	1
95411-10095	RT102,104,114,118..RHD *H,L=650,MARK=#0	01/1977 - 05/1979	1
95411-19995	RT104,118..RHD..(3FC,5F);RT104..RHD..4F..(EUR,GEN,SA);RT102,114,118..RHD..(EUR,GEN,SA) H,L=650,MARK=#	01/1977 - 05/1979	1
95411-10060	RT104,118..3FC..ARL *H,L=600,MARK=#0	01/1977 - 05/1979	1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10095	RT104,118..ARL *H,L=750,MARK=#0	04/1976 - 01/1977	1
95411-10095	RT102,104,114,118..RHD *H,L=650,MARK=#0	01/1977 - 05/1979	1
95411-19995	RT104,118..RHD..(3FC,5F);RT104..RHD..4F..(EUR,GEN,SA);RT102,114,118..RHD..(EUR,GEN,SA) H,L=650,MARK=#	01/1977 - 05/1979	1
95411-10060	RT104,118..3FC..ARL *H,L=600,MARK=#0	01/1977 - 05/1979	1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10095	RT104,118..ARL *H,L=750,MARK=#0	04/1976 - 01/1977	1
95411-10095	RT102,104,114,118..RHD *H,L=650,MARK=#0	01/1977 - 05/1979	1
95411-19995	RT104,118..RHD..(3FC,5F);RT104..RHD..4F..(EUR,GEN,SA);RT102,114,118..RHD..(EUR,GEN,SA) H,L=650,MARK=#	01/1977 - 05/1979	1
95411-10060	RT104,118..3FC..ARL *H,L=600,MARK=#0	01/1977 - 05/1979	1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10095	RT104,118..ARL *H,L=750,MARK=#0	04/1976 - 01/1977	1
95411-10095	RT102,104,114,118..RHD *H,L=650,MARK=#0	01/1977 - 05/1979	1
95411-19995	RT104,118..RHD..(3FC,5F);RT104..RHD..4F..(EUR,GEN,SA);RT102,114,118..RHD..(EUR,GEN,SA) H,L=650,MARK=#	01/1977 - 05/1979	1
95411-10060	RT104,118..3FC..ARL *H,L=600,MARK=#0	01/1977 - 05/1979	1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-14030	RT104,118..ARL	04/1976 - 01/1977	1
88690-20090	RT102,104,114,118..RHD	01/1977 - 05/1979	1
88690-20130	RT104,118..3FC..ARL	01/1977 - 05/1979	1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-14030	RT104,118..ARL	04/1976 - 01/1977	1
88690-20090	RT102,104,114,118..RHD	01/1977 - 05/1979	1
88690-20130	RT104,118..3FC..ARL	01/1977 - 05/1979	1
Common parts
21409-36110
21829-36120
88569-20080
88888-40040
90464-00074
90464-00082
93385-18016

RT118-HRFQ (1973)

(7604-7701)ARL

(7701-7905)RT102,104,114,118..RHD
