RT118-HRFQ (1973)

Toyota Corona

Production Aug 1973 - May 1979
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)RT116,117,118

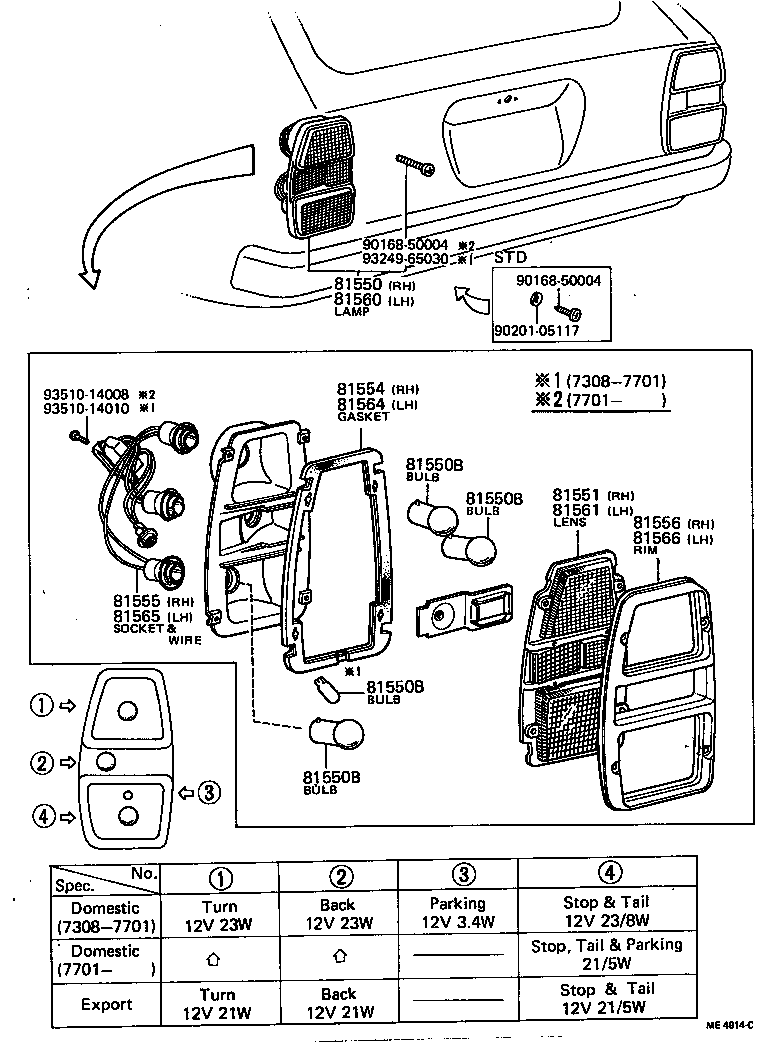

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81550B 81551 81554 81555 81556 81560 81561 81564 81565 81566 9016850004 9016850004 9020105117 9324965030 9351014008 9351014010
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-29745

RT116,117,118

AMBER-RED-CLEAR

 1
81550-29746

RT116,118

AMBER-RED-CLEAR

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

RT10#,11#

12V 21/5W,12V 21/5W

 4
99132-11210

RT10#,11#

12V 21W,12V 21W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

RT10#,11#

12V 21/5W,12V 21/5W

 4
99132-11210

RT10#,11#

12V 21W,12V 21W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

RT10#,11#

12V 21/5W,12V 21/5W

 4
99132-11210

RT10#,11#

12V 21W,12V 21W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

RT10#,11#

12V 21/5W,12V 21/5W

 4
99132-11210

RT10#,11#

12V 21W,12V 21W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-21090

RT116,117,118

AMBER-RED-CLEAR

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-21090

RT116,117,118

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-21110

RT116,117,118

 1
81555-21111

RT116,118

 1
81556 - RIM, REAR COMBINATION LAMP, RH
81556-21090

RT116,117,118

 1
81556-21091

RT116,118

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-29735

RT116,117,118

AMBER-RED-CLEAR,IKI

 1
81560-29736

RT116,118

AMBER-RED-CLEAR

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-21090

RT116,117,118

AMBER-RED-CLEAR

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-21090

RT116,117,118

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-21111

RT116,118

 1
81555-21110

RT116,117,118

 1
81566 - RIM, REAR COMBINATION LAMP, LH
81566-21091

RT116,118

 1
81566-21090

RT116,117,118

 1
Common parts
90168-50004
90201-05117
93249-65030
93510-14008
93510-14010
