RT117L-KRFW (1973)
Toyota Corona
Production
Nov 1973
-
Sep 1975
Engine
16R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7308-7905)ARL,EUR,SA

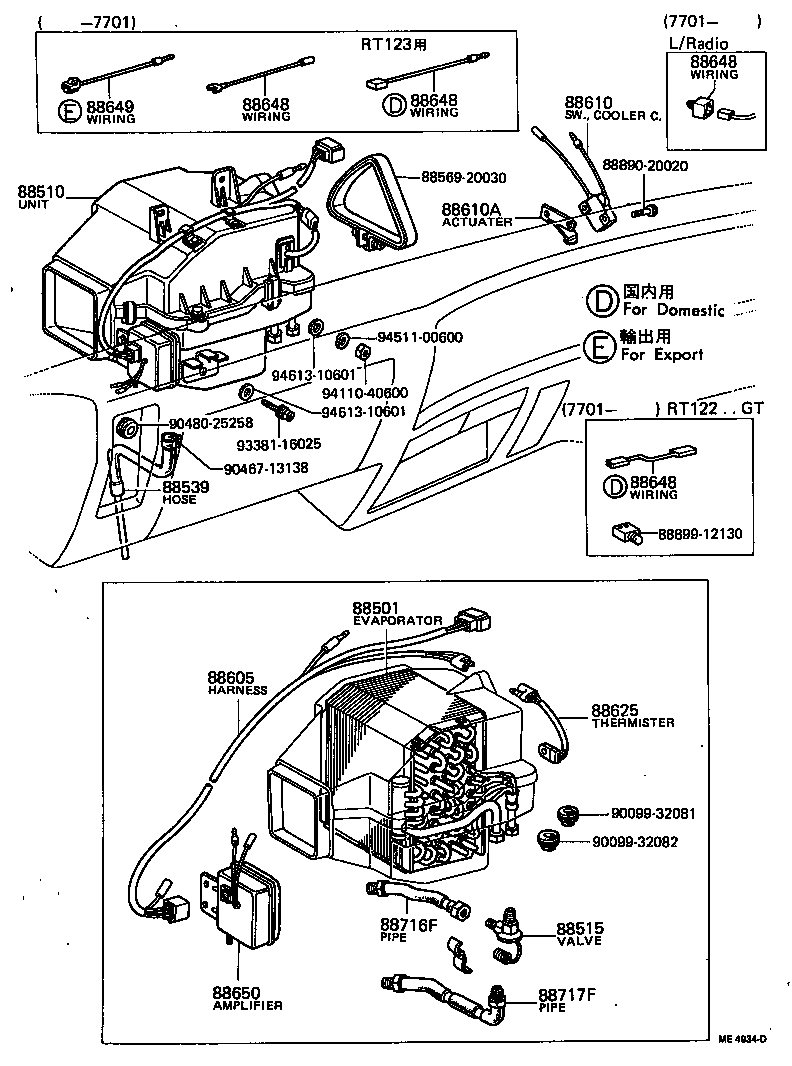

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-20040 |
RT10#,112,116,117,118..LHD |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-20090 |
RT10#,112,116,117,118..LHD |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-10010 |
RT10#,11# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-20040 |
RT10#,112,114,116,117,118..LHD |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-20070 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-20120 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
1 | ||
| 88610A - ACTUATER (FOR COOLER CONTROL SWITCH) | ||||
| 88893-22011 |
RT10#,11# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-20030 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20060 |
RT10#,112,114,116,117,118..LHD |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-20210 |
RT10#,112,114,116,117,118..LHD |
1 | ||
| 88717F - PIPE, COOLER REFRIGERANT SUCTION, F | ||||
| 88717-20120 |
RT10#,112,114,116,117,118..LHD |
1 | ||
| Common parts | ||||
| 88569-20030 | ||||
| 88890-20020 | ||||
| 88899-12130 | ||||
| 90099-32081 | ||||
| 90099-32082 | ||||
| 90467-13138 | ||||
| 90480-25258 | ||||
| 93381-16025 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94613-10601 | ||||
