RT117L-KRFW (1973)

Toyota Corona

Production Nov 1973 - Sep 1975
Engine 16R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)RT116,117,118

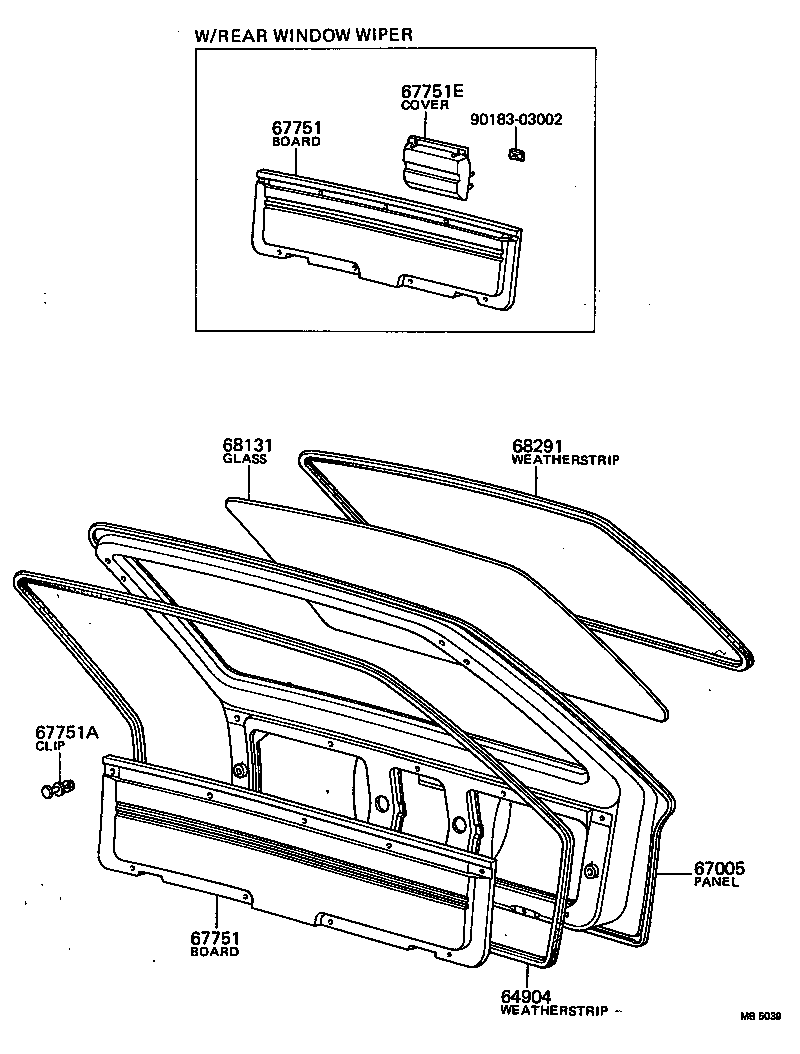

Click highlighted areas on diagram

diagram 64904 67005 67751 67751 67751A 67751E 68131 68291 9018303002
Part # Description Qty Price
64904 - WEATHERSTRIP SUB-ASSY, BACK DOOR
67881-21010

RT116,117,118

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-21010

RT116,117,118

 1
67751 - BOARD, BACK DOOR TRIM
67701-2101003

RT117..EUG

FOR W/REAR WIPER,GRAY,GRAY,TRIM1#

 1
67751-2101001

RT116,117,118

BLACK,BLACK,TRIM2#

 1
67701-2101006

RT117,118..EUR

FOR W/REAR WIPER,BROWN,BROWN,TRIM4#

 1
67751-2101006

RT116,117,118

BROWN,BROWN,TRIM4#

 1
67701-2101001

RT117,118..EUR

FOR W/REAR WIPER,BLACK,BLACK,TRIM2#

 1
67751 - BOARD, BACK DOOR TRIM
67701-2101003

RT117..EUG

FOR W/REAR WIPER,GRAY,GRAY,TRIM1#

 1
67751-2101001

RT116,117,118

BLACK,BLACK,TRIM2#

 1
67701-2101006

RT117,118..EUR

FOR W/REAR WIPER,BROWN,BROWN,TRIM4#

 1
67751-2101006

RT116,117,118

BROWN,BROWN,TRIM4#

 1
67701-2101001

RT117,118..EUR

FOR W/REAR WIPER,BLACK,BLACK,TRIM2#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-0811413

RT116,117,118

GRAY,GRAY,TRIM1#

 11
90467-0811401

RT116,117,118

BLACK,BLACK,TRIM2#

 11
90467-0811416

RT116,117,118

BROWN,BROWN,TRIM4#

 11
68131 - GLASS, BACK DOOR
68105-21020

RT117,118

ELECT.TP.T=4.0

 1
68131-21020

RT116,117,118

TP.T=4.0

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-21010

RT116,117,118

 1
Common parts
90183-03002
