RT117L-KRFW (1973)

Toyota Corona

Production Nov 1973 - Sep 1975
Engine 16R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)RT116,117,118

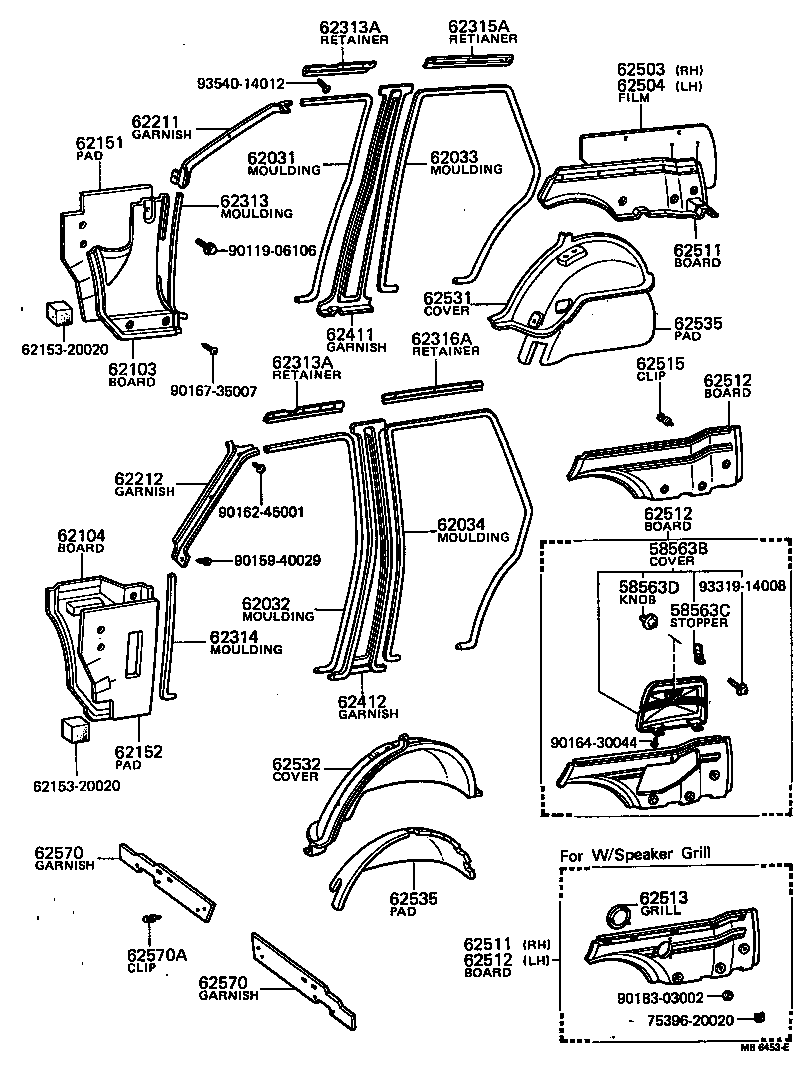

Click highlighted areas on diagram

diagram 58563B 58563C 58563D 62031 62032 62033 62034 62103 62104 62151 62152 6215320020 6215320020 62211 62212 62313 62313A 62313A 62314 62315A 62316A 62411 62412 62503 62504 62511 62511 62512 62512 62512 62513 62515 62531 62532 62535 62535 62570 62570 62570A 7539620020 9011906106 9015940029 9016245001 9016430044 9016735007 9018303002 9331914008 9354014012
Part # Description Qty Price
62031 - MOULDING SUB-ASSY, FRONT DOOR OPENING TRIM, RH
62314-2101003

RT116,117,118

GRAY,GRAY,TRIM1#

 1
62314-2101003

RT116,117,118

GRAY,GRAY,TRIM1#

 1
62032 - MOULDING SUB-ASSY, FRONT DOOR OPENING TRIM, LH
62314-2101003

RT116,117,118

GRAY,GRAY,TRIM1#

 1
62314-2101003

RT116,117,118

GRAY,GRAY,TRIM1#

 1
62033 - MOULDING SUB-ASSY, REAR DOOR OPENING TRIM, RH
62343-21010

RT116,117,118

 1
62034 - MOULDING SUB-ASSY,REAR DOOR OPENING TRIM, LH
62343-21010

RT116,117,118

 1
62103 - BOARD SUB-ASSY, COWL SIDE TRIM, RH
62111-20090

RT116,117,118..LHD

FOR W/HEATER

 1
62104 - BOARD SUB-ASSY, COWL SIDE TRIM, LH
62112-20080

RT10#,110,112,116,117,118..LHD

 1
62112-20110

RT10#,110,112,116,117,118..LHD

 1
62151 - PAD, COWL SIDE SILENCER, NO.1
62151-20050

RT10#,11#

 1
62152 - PAD, COWL SIDE SILENCER, NO.2
62152-20040

RT10#,11#..LHD

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-21010

RT116,117,118

 1
62211-21011

RT116,117,118

 1
62211-21012

RT116,117,118

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-21010

RT116,117,118

 1
62212-21011

RT116,117,118

 1
62212-21012

RT116,117,118

 1
62313 - MOULDING, FRONT DOOR OPENING TRIM, RH
62313-2003003

RT10#,116,117,118

GRAY,GRAY,TRIM1#,2#,4#

 1
62313A - RETAINER, DOOR OPENING TRIM MOULDING, NO.1
62357-21010

RT116,117,118

LH.

 1
62356-21010

RT116,117,118

RH.

 1
62313A - RETAINER, DOOR OPENING TRIM MOULDING, NO.1
62357-21010

RT116,117,118

LH.

 1
62356-21010

RT116,117,118

RH.

 1
62314 - MOULDING, FRONT DOOR OPENING TRIM, LH
62313-2003003

RT10#,116,117,118

GRAY,GRAY,TRIM1#,2#,4#

 1
62315A - RETAINER, REAR DOOR OPENING TRIM, RH
62358-21010

RT116,117,118

 1
62316A - RETAINER, REAR DOOR OPENING TRIM, LH
62359-21010

RT116,117,118

 1
62411 - GARNISH, CENTER PILLAR, RH
62411-2005003

RT10#,116,117,118..4D

FOR W/SEAT BELT,GRAY,GRAY,TRIM1#

 1
62411-2005005

RT10#,116,117,118..4D

FOR W/SEAT BELT,BEIGE,BEIGE,TRIM4#

 1
62411-2005001

RT10#,116,117,118..4D

FOR W/SEAT BELT,BLACK,BLACK,TRIM2#

 1
62411-2006001

RT10#,116,117,118..4D

FOR L/SEAT BELT,BLACK,BLACK,TRIM2#

 1
62411-2005001

RT10#,116,117,118..EUR,GEN,SA

FOR W/SEAT BELT,BLACK,BLACK,TRIM2#

 1
62411-2006005

RT10#,116,117,118..4D

FOR L/SEAT BELT,BEIGE,BEIGE,TRIM4#

 1
62411-2006006

RT10#,116,117,118..4D

FOR L/SEAT BELT,OLIVE-BROWN,BROWN,TRIM4#

 1
62411-2005006

RT10#,116,117,118..EUR,GEN,SA

FOR W/SEAT BELT,OLIVE-BROWN,BROWN,TRIM4#

 1
62411-2005005

RT10#,116,117,118..EUR,GEN,SA

FOR W/SEAT BELT,BEIGE,BEIGE,TRIM4#

 1
62411-2005006

RT10#,116,117,118..4D

FOR W/SEAT BELT,OLIVE-BROWN,BROWN,TRIM4#

 1
62412 - GARNISH, CENTER PILLAR, LH
62412-2006001

RT10#,116,117,118..4D

FOR L/SEAT BELT,BLACK,BLACK,TRIM2#

 1
62412-2005006

RT10#,116,117,118..4D

FOR W/SEAT BELT,OLIVE-BROWN,BROWN,TRIM4#

 1
62412-2005003

RT10#,116,117,118..4D

FOR W/SEAT BELT,GRAY,GRAY,TRIM1#

 1
62412-2005005

RT10#,116,117,118..4D

FOR W/SEAT BELT,BEIGE,BEIGE,TRIM4#

 1
62412-2005001

RT10#,116,117,118..4D

FOR W/SEAT BELT,BLACK,BLACK,TRIM2#

 1
62412-2006006

RT10#,116,117,118..4D

FOR L/SEAT BELT,OLIVE-BROWN,BROWN,TRIM4#

 1
62412-2005005

RT10#,116,117,118..EUR,GEN,SA

FOR W/SEAT BELT,BEIGE,BEIGE,TRIM4#

 1
62412-2006005

RT10#,116,117,118..4D

FOR L/SEAT BELT,BEIGE,BEIGE,TRIM4#

 1
62412-2005006

RT10#,116,117,118..EUR,GEN,SA

FOR W/SEAT BELT,OLIVE-BROWN,BROWN,TRIM4#

 1
62412-2005001

RT10#,116,117,118..EUR,GEN,SA

FOR W/SEAT BELT,BLACK,BLACK,TRIM2#

 1
62503 - FILM SUB-ASSY, QUARTER INSIDE PANEL, RH
62537-21010

RT116,117,118

 1
62537-21020

RT116,117,118

FOR W/STEREO

 1
62504 - FILM SUB-ASSY, QUARTER INSIDE PANEL, LH
62538-21010

RT116,117,118

 1
62538-21020

RT116,117,118

FOR W/STEREO

 1
62511 - BOARD, QUARTER INSIDE TRIM, RH
62051-2103001

RT116,117,118

FOR W/STEREO,BLACK,BLACK,TRIM2#

 1
62523-2101006

RT116,117,118

BROWN,BROWN,TRIM4#

 1
62523-2101001

RT116,117,118

BLACK,BLACK,TRIM2#

 1
62051-2103006

RT116,117,118

FOR W/STEREO,BROWN,BROWN,TRIM4#

 1
62511 - BOARD, QUARTER INSIDE TRIM, RH
62051-2103001

RT116,117,118

FOR W/STEREO,BLACK,BLACK,TRIM2#

 1
62523-2101006

RT116,117,118

BROWN,BROWN,TRIM4#

 1
62523-2101001

RT116,117,118

BLACK,BLACK,TRIM2#

 1
62051-2103006

RT116,117,118

FOR W/STEREO,BROWN,BROWN,TRIM4#

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62524-2101006

RT116,117,118

BROWN,BROWN,TRIM4#

 1
62052-2104003

RT117..EUG

FOR W/REAR WIPER,GRAY,GRAY,TRIM1#

 1
62052-2103006

RT116,117,118

FOR W/STEREO,BROWN,BROWN,TRIM4#

 1
62524-2101001

RT116,117,118

BLACK,BLACK,TRIM2#

 1
62052-2105003

RT117..EUG

FOR W/STEREO & RR.WIPER,GRAY,GRAY,TRIM1#

 1
62052-2103001

RT116,117,118

FOR W/STEREO,BLACK,BLACK,TRIM2#

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62524-2101006

RT116,117,118

BROWN,BROWN,TRIM4#

 1
62052-2104003

RT117..EUG

FOR W/REAR WIPER,GRAY,GRAY,TRIM1#

 1
62052-2103006

RT116,117,118

FOR W/STEREO,BROWN,BROWN,TRIM4#

 1
62524-2101001

RT116,117,118

BLACK,BLACK,TRIM2#

 1
62052-2105003

RT117..EUG

FOR W/STEREO & RR.WIPER,GRAY,GRAY,TRIM1#

 1
62052-2103001

RT116,117,118

FOR W/STEREO,BLACK,BLACK,TRIM2#

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62524-2101006

RT116,117,118

BROWN,BROWN,TRIM4#

 1
62052-2104003

RT117..EUG

FOR W/REAR WIPER,GRAY,GRAY,TRIM1#

 1
62052-2103006

RT116,117,118

FOR W/STEREO,BROWN,BROWN,TRIM4#

 1
62524-2101001

RT116,117,118

BLACK,BLACK,TRIM2#

 1
62052-2105003

RT117..EUG

FOR W/STEREO & RR.WIPER,GRAY,GRAY,TRIM1#

 1
62052-2103001

RT116,117,118

FOR W/STEREO,BLACK,BLACK,TRIM2#

 1
62513 - GRILLE, SPEAKER, SIDE
62529-9150301

RT116,117,118

BLACK,BLACK,TRIM2#

 2
62515 - CLIP, QUARTER INSIDE TRIM
90467-0811401

RT116,117,118

BLACK,BLACK,TRIM2#

 16
90467-0811416

RT116,117,118

BROWN,BROWN,TRIM4#

 16
90467-0811413

RT116,117,118

GRAY,GRAY,TRIM1#

 16
62570 - GARNISH ASSY, CENTER FLOOR CROSS MEMBER
62556-21020

RT116,117,118

RH.CARPET

 1
62556-21010

RT116,117,118

RH.MAT

 1
62557-21020

RT116,117,118

LH.CARPET

 1
62557-21010

RT116,117,118

LH.MAT

 1
62570 - GARNISH ASSY, CENTER FLOOR CROSS MEMBER
62556-21020

RT116,117,118

RH.CARPET

 1
62556-21010

RT116,117,118

RH.MAT

 1
62557-21020

RT116,117,118

LH.CARPET

 1
62557-21010

RT116,117,118

LH.MAT

 1
62570A - CLIP(FOR CENTER FLOOR CROSS MEMBER GARNISH SET)
90467-0811401

RT116,117,118

BLACK,BLACK,TRIM2#

 2
Common parts
62153-20020
75396-20020
90119-06106
90159-40029
90162-45001
90164-30044
90167-35007
90183-03002
93319-14008
93540-14012
