RT117L-KRF (1973)

Toyota Corona

Production Aug 1973 - Sep 1975
Engine 16R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)RT116,117,118

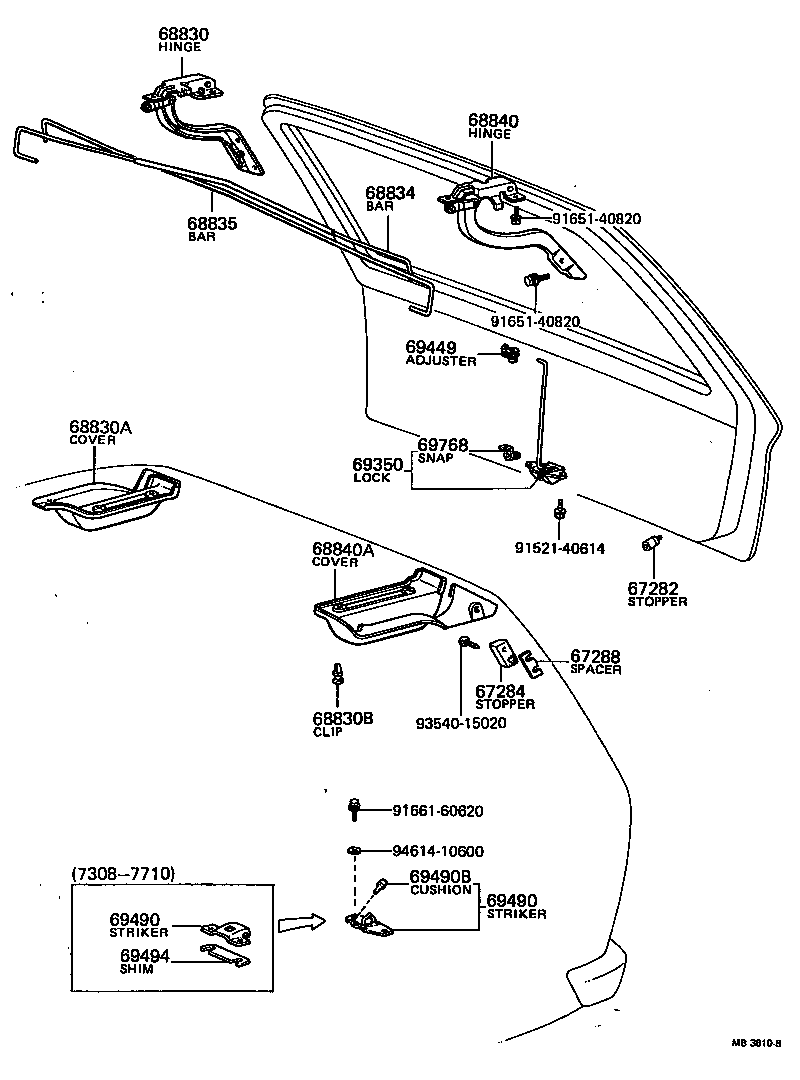

Click highlighted areas on diagram

diagram 67282 67284 67288 68830 68830A 68830B 68834 68835 68840 68840A 69350 69449 69490 69490 69490B 69494 69768 9152140614 9165140820 9165140820 9166160620 9354015020 9461410600
Part # Description Qty Price
67282 - STOPPER, BACK DOOR, NO.1
67281-91256

RT116,117,118

 2
67284 - STOPPER, BACK DOOR, NO.2
67283-21010

RT116,117,118

 2
67288 - SPACER, BACK DOOR SIDE STOPPER, UPPER
67284-91603

RT116,117,118

 2
68830 - HINGE ASSY, BACK DOOR, RH
68810-21010

RT116,117,118

 1
68830A - COVER, BACK DOOR HINGE, RH
68841-21010

RT116,117,118

 1
68830B - CLIP(FOR BACK DOOR HINGE COVER SET)
90467-0811413

RT116,117,118

GRAY,GRAY,TRIM2#

 8
68834 - BAR, BACK DOOR TORSION, RH
68807-21010

RT116,117,118

 1
68835 - BAR, BACK DOOR TORSION, LH
68834-21010

RT116,117,118

 1
68840 - HINGE ASSY, BACK DOOR, LH
68820-21010

RT116,117,118

 1
68840A - COVER, BACK DOOR HINGE, LH
68842-21010

RT116,117,118

 1
69350 - LOCK ASSY, BACK DOOR
69350-21010

RT116,117,118

 1
69449 - ADJUSTER, BACK DOOR LOCK CONTROL LINK
64949-21020

RT116,117,118

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69451-21010

RT116,117,118

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69451-21010

RT116,117,118

 1
69494 - SHIM, BACK DOOR LOCK STRIKER
69469-91256

RT116,117,118

T=1.0

 2
69469-91257

RT116,117,118

T=2.0

 2
Common parts
91521-40614
91651-40820
91661-60620
93540-15020
94614-10600
