RT117L-KRF (1973)
Toyota Corona
Production
Aug 1973
-
Sep 1975
Engine
16R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7308-7905)

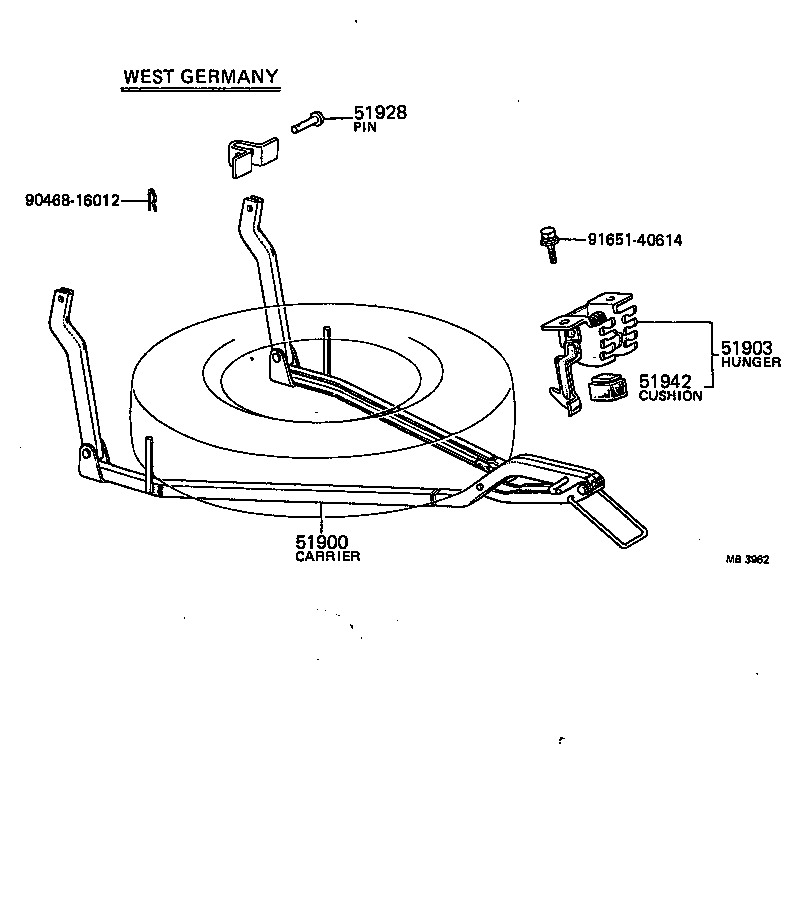

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51900 - CARRIER ASSY, SPARE WHEEL | ||||
| 51900-21010 |
RT116,117..GEN |
1 | ||
| 51903 - HANGER SUB-ASSY, SPARE WHEEL CARRIER HANDLE | ||||
| 51931-91605 |
RT116,117..GEN |
1 | ||
| 51903 - HANGER SUB-ASSY, SPARE WHEEL CARRIER HANDLE | ||||
| 51931-91605 |
RT116,117..GEN |
1 | ||
| 51927 - SHIM, SPARE CARRIER | ||||
| 51927-91240 |
RT116,117,118 |
2 | ||
| 51928 - PIN, SPARE WHEEL CARRIER | ||||
| 51928-91240 |
RT116,117,118 |
2 | ||
| 51942 - CUSHION, SPARE WHEEL CARRIER, REAR | ||||
| 51942-91255 |
RT116,117,118 |
1 | ||
| 51942 - CUSHION, SPARE WHEEL CARRIER, REAR | ||||
| 51942-91255 |
RT116,117,118 |
1 | ||
| Common parts | ||||
| 90468-16142 | ||||
| 91651-40614 | ||||
(7308-7509)RT117..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51900 - CARRIER ASSY, SPARE WHEEL | ||||
| 51900-21010 |
RT116,117..GEN |
1 | ||
| 51903 - HANGER SUB-ASSY, SPARE WHEEL CARRIER HANDLE | ||||
| 51931-91605 |
RT116,117..GEN |
1 | ||
| 51928 - PIN, SPARE WHEEL CARRIER | ||||
| 51928-91240 |
RT116,117,118 |
2 | ||
| 51942 - CUSHION, SPARE WHEEL CARRIER, REAR | ||||
| 51942-91255 |
RT116,117,118 |
1 | ||
| Common parts | ||||
| 90468-16012 | ||||
| 91651-40614 | ||||
