RT117L-KRF (1973)
Toyota Corona
(7308-7905)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-23020 |
RT116,117,118 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-12050 |
RT116,117,118 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-12050 |
RT116,117,118 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-23020 |
RT116,117,118 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-15070 |
RT116,117,118 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-15070 |
RT116,117,118 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-13032 |
RT116,117,118 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-13032 |
RT116,117,118 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-15070 |
RT116,117,118 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-15070 |
RT116,117,118 |
4 | ||
| 48210K - SHACKLE KIT, REAR SPRING | ||||
| 04483-21010 |
RT116,117,118 |
2 | ||
| 48210L - PIN KIT, REAR SPRING | ||||
| 04484-20010 |
RT116,117,118 |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-29015 |
RT116,117,118 |
2 | ||
| 48351 - BUMPER, DIFFERENTIAL CARRIER | ||||
| 48351-29015 |
RT116,117,118 |
1 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-21030 |
RT116,117,118 |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-21030 |
RT116,117,118 |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-21030 |
RT116,117,118 |
4 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 57703-21010 |
RT116,117,118 |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 57704-21010 |
RT116,117,118 |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 57701-91606 |
RT116,117,118 |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 57701-91606 |
RT116,117,118 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-29275 |
RT116,117,118 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16060 |
RT10#,11# |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16060 |
RT10#,11# |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16060 |
RT10#,11# |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16060 |
RT10#,11# |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03003 |
RT116,117,118 |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03003 |
RT116,117,118 |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03003 |
RT116,117,118 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
RT116,117,118 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
RT116,117,118 |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03004 |
RT116,117,118 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03012 |
RT116,117,118 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-29275 |
RT116,117,118 |
1 | ||
| Common parts | ||||
| 90101-14364 | ||||
| 90119-10166 | ||||
| 90170-10082 | ||||
| 90170-10208 | ||||
| 90389-17004 | ||||
| 90389-17037 | ||||
| 91611-40816 | ||||
| 91611-41022 | ||||
| 91611-61016 | ||||
| 91661-40612 | ||||
| 94110-41000 | ||||
| 94110-51000 | ||||
| 94115-41200 | ||||
| 94115-51200 | ||||
| 94115-71400 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
| 94512-01400 | ||||
| 94612-11400 | ||||
| Linked diagrams | ||||
| 4101 | ||||

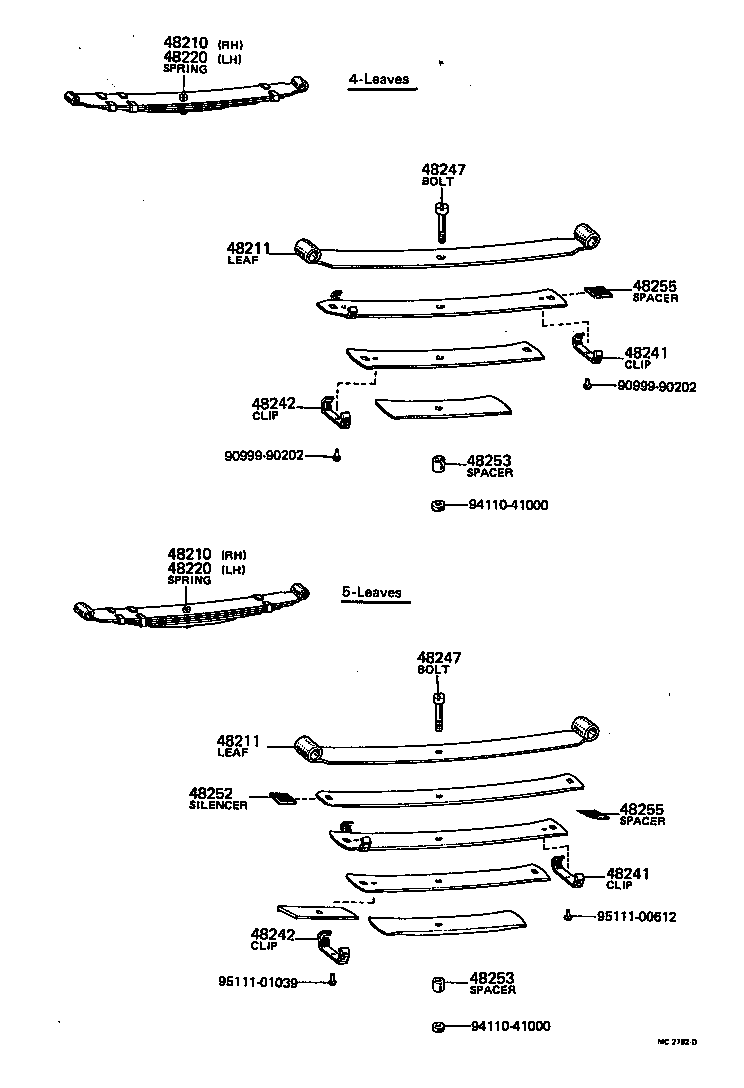

(7308-7808)RT116,117,118
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-21110 |
RT116,117,118 4-LEAVES |
1 | ||
| 48210-21111 |
RT116,117,118 4-LEAVES |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-21110 |
RT116,117,118 4-LEAVES |
1 | ||
| 48210-21111 |
RT116,117,118 4-LEAVES |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-21110 |
RT116,117,118 |
2 | ||
| 48211-21111 |
RT116,117,118 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-21110 |
RT116,117,118 |
2 | ||
| 48211-21111 |
RT116,117,118 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-21110 |
RT116,117,118 4-LEAVES |
1 | ||
| 48210-21111 |
RT116,117,118 4-LEAVES |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-21110 |
RT116,117,118 4-LEAVES |
1 | ||
| 48210-21111 |
RT116,117,118 4-LEAVES |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48243-21060 |
RT116,117,118 |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48243-21060 |
RT116,117,118 |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-21060 |
RT116,117,118 |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-21060 |
RT116,117,118 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-21110 |
RT116,117,118 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-21110 |
RT116,117,118 |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-21100 |
RT116,117,118 |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-21100 |
RT116,117,118 |
2 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48253-23030 |
RT116,117,118 |
8 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48253-23030 |
RT116,117,118 |
8 | ||
| Common parts | ||||
| 90999-90202 | ||||
| 94110-41000 | ||||
| 95111-00612 | ||||
| 95111-01039 | ||||
