RT117-KRF (1973)

Toyota Corona

Production Aug 1973 - Sep 1975
Engine 16R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)RT102,112,117..MTM

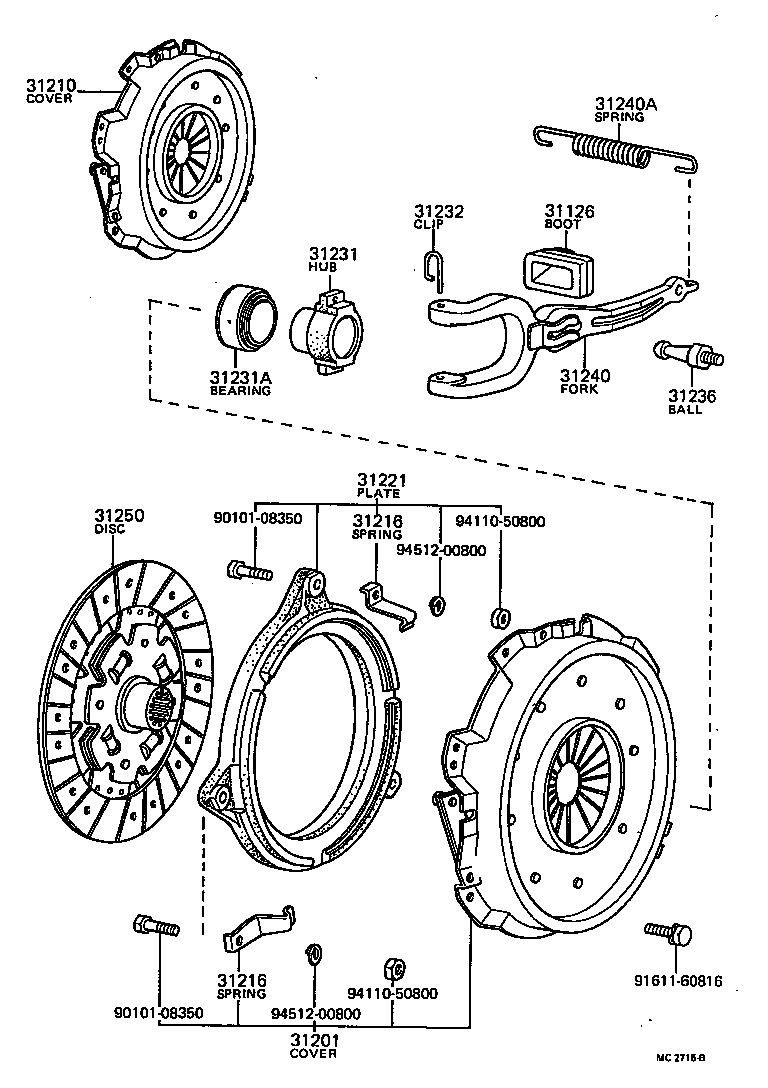

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31231 31231A 31232 31236 31240 31240A 31250 9010108350 9010108350 9161160816 9411050800 9411050800 9451200800 9451200800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-22030

RT10#,11#..MTM

 1
31201 - COVER SUB-ASSY, CLUTCH
31201-29055

RT102,112,117..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-20080

RT102,112,117..MTM

 1
31216 - SPRING, CLUTCH RETRACTING
31216-20020

RT100,102,110,112,116,117..MTM

 3
31216 - SPRING, CLUTCH RETRACTING
31216-20020

RT100,102,110,112,116,117..MTM

 3
31221 - PLATE, CLUTCH PRESSURE
31221-29015

RT100,102,110,112,116,117..MTM

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-20040

RT102,112,117..MTM

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40078

RT10#,11#..MTM

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-30010

RT10#,11#..MTM

 2
31236 - BALL, RELEASE FORK
31236-30030

RT100,102,110,112,116,117..MTM

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20020

RT102,104,112,114,117,118..MTM

 1
31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)
90506-16402

RT102,104,112,114,117,118..MTM

 1
31250 - DISC ASSY, CLUTCH
31250-20050

RT102,112,117..MTM

 1
Common parts
90101-08350
91611-60816
94110-50800
94512-00800
