RT116L-YRF (1973)
Toyota Corona
(7308-7905)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

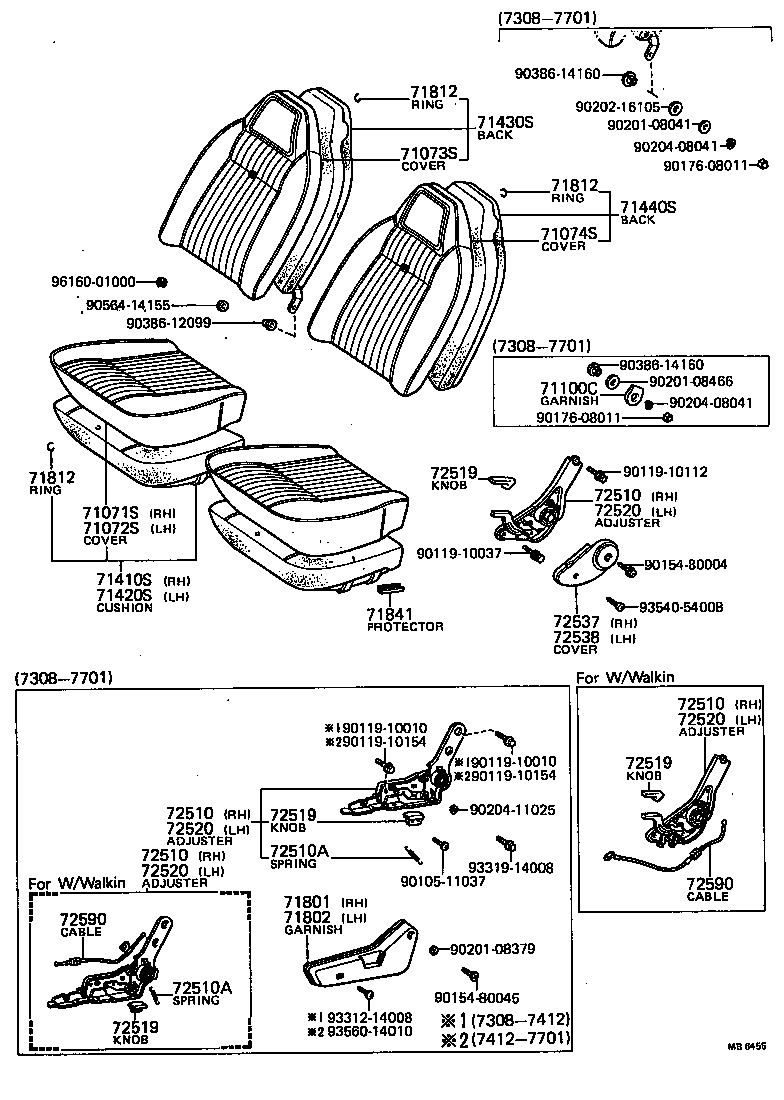

| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2028004 |
RT100,102,110,112,116,117..LHD PF.BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2028003 |
RT100,102,110,112,116,117..LHD PF.GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2028006 |
RT10#,110,112,116,117,118..LHD PF.OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 71071-2028001 |
RT10#,110,112,116,117,118..LHD PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71071-2028005 |
RT10#,110,112,116,117,118..LHD PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-2028001 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71071-2028005 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-2028006 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 71071-2045005 |
RT116;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-2045003 |
RT116;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX PF.GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2045001 |
RT116;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-2028003 |
RT100,102,110,112,116,117..LHD PF.GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2028001 |
RT10#,110,112,116,117,118..LHD PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71071-2028006 |
RT10#,110,112,116,117,118..LHD PF.OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 71071-2028004 |
RT100,102,110,112,116,117..LHD PF.BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2028005 |
RT10#,110,112,116,117,118..LHD PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-2028005 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-2028006 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 71072-2015001 |
RT116;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71071-2028001 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71072-2015005 |
RT116;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-2015003 |
RT116;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX PF.GRAY,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2026003 |
RT100,102,110,112,116,117..LHD PF.GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2026101 |
RT10#,110,112,116,117,118..LHD PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-2026001 |
RT100,102,110,112,116,117..LHD PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-2026006 |
RT100,102,110,112,116,117..LHD PF.OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 71073-2026105 |
RT10#,110,112,116,117,118..LHD PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-2026106 |
RT10#,110,112,116,117,118..LHD PF.OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 71073-2026101 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-2046005 |
RT116;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-2026106 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.BROWN,BROWN,TRIM4# |
1 | ||
| 71073-2026105 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-2046001 |
RT116;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-2046003 |
RT116;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX PF.GRAY,GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2013003 |
RT100,102,110,112,116,117..LHD PF.GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2013006 |
RT100,102,110,112,116,117..LHD PF.OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 71074-2013001 |
RT100,102,110,112,116,117..LHD PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71074-2013105 |
RT10#,110,112,116,117,118..LHD PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-2013106 |
RT10#,110,112,116,117,118..LHD PF.OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 71074-2013101 |
RT10#,110,112,116,117,118..LHD PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71074-2013101 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71074-2013106 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.BROWN,BROWN,TRIM4# |
1 | ||
| 71074-2030001 |
RT116;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71074-2013105 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-2030003 |
RT116;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX PF.GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2030005 |
RT116;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71100C - GARNISH, FRONT SEAT HINGE | ||||
| 71841-20030 |
RT10#,11#..LHD FOR L/SEAT BELT |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2031003 |
RT100,102,110,112,116,117..LHD PF.GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2031006 |
RT10#,110,112,116,117,118..LHD PF.OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 71410-2031001 |
RT10#,110,112,116,117,118..LHD PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71410-2031001 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71410-2031006 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.BROWN,BROWN,TRIM4# |
1 | ||
| 71410-2031005 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-2031005 |
RT10#,110,112,116,117,118..LHD PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-2031003 |
RT100,102,110,112,116,117..LHD PF.GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2031001 |
RT10#,110,112,116,117,118..LHD PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71410-2031006 |
RT10#,110,112,116,117,118..LHD PF.OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 71410-2031006 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.BROWN,BROWN,TRIM4# |
1 | ||
| 71410-2031001 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71410-2031005 |
RT10#,110,112,116,117,118..LHD PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-2031005 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2030003 |
RT100,102,110,112,116,117..LHD PF.GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2030001 |
RT100,102,110,112,116,117..LHD PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71430-2030106 |
RT10#,110,112,116,117,118..LHD PF.OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 71430-2030006 |
RT100,102,110,112,116,117..LHD PF.OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 71430-2030105 |
RT10#,110,112,116,117,118..LHD PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-2030101 |
RT10#,110,112,116,117,118..LHD PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71430-2030106 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.BROWN,BROWN,TRIM4# |
1 | ||
| 71430-2030105 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-2030101 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2014003 |
RT100,102,110,112,116,117..LHD PF.GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2014101 |
RT10#,110,112,116,117,118..LHD PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71440-2014001 |
RT100,102,110,112,116,117..LHD PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71440-2014006 |
RT100,102,110,112,116,117..LHD PF.OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 71440-2014105 |
RT10#,110,112,116,117,118..LHD PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-2014101 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71440-2014106 |
RT10#,110,112,116,117,118..LHD PF.OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 71440-2014105 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-2014106 |
RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL) PF.OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 71801 - GARNISH SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71821-2005006 |
RT100,104,11#..LHD FOR SEPARATE TYPE,BROWN,BROWN,TRIM4# |
1 | ||
| 71821-2005005 |
RT100,104,116,118..LHD FOR SEPARATE TYPE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71821-20050 |
RT10#,110,112,116,117,118..LHD FOR SEPARATE TYPE |
1 | ||
| 71821-2005001 |
RT100,104,11#..LHD FOR SEPARATE TYPE,BLACK,BLACK,TRIM2# |
1 | ||
| 71802 - GARNISH SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71822-20060 |
RT100..3H;RT116..LHD..3H FOR BENCH TYPE |
1 | ||
| 71822-2005001 |
RT100,104,11#..LHD FOR SEPARATE TYPE,BLACK,BLACK,TRIM2# |
1 | ||
| 71822-2005005 |
RT100,104,116,118..LHD FOR SEPARATE TYPE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71822-2005006 |
RT100,104,11#..LHD FOR SEPARATE TYPE,BROWN,BROWN,TRIM4# |
1 | ||
| 71822-2006006 |
RT100..3H;RT116..LHD..3H FOR BENCH TYPE,BROWN,BROWN,TRIM4# |
1 | ||
| 71822-2006001 |
RT100..3H;RT116..LHD..3H FOR BENCH TYPE,BLACK,BLACK,TRIM2# |
1 | ||
| 71822-20050 |
RT10#,110,112,116,117,118..LHD FOR SEPARATE TYPE |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
RT10#,11# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
RT10#,11# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
RT10#,11# |
1 | ||
| 71841 - PROTECTOR, FRONT SEAT CUSHION EDGE | ||||
| 71838-20011 |
RT100,104,11#..LHD |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-21010 |
RT116,117,118..LHD |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-21010 |
RT116,117,118..LHD |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-21010 |
RT116,117,118..LHD |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-21010 |
RT116,117,118..LHD |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-16437 |
RT10#,11#..LHD |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-16437 |
RT10#,11#..LHD |
2 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72519-20040 |
RT10#,11#..LHD |
2 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72519-20040 |
RT10#,11#..LHD |
2 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72519-20040 |
RT10#,11#..LHD |
2 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72519-20040 |
RT10#,11#..LHD |
2 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-21010 |
RT116,117,118..LHD |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-21010 |
RT116,117,118..LHD |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-21010 |
RT116,117,118..LHD |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-21010 |
RT116,117,118..LHD |
1 | ||
| Common parts | ||||
| 90105-11037 | ||||
| 90119-10010 | ||||
| 90119-10037 | ||||
| 90119-10112 | ||||
| 90119-10154 | ||||
| 90154-80004 | ||||
| 90154-80045 | ||||
| 90176-08011 | ||||
| 90201-08041 | ||||
| 90201-08379 | ||||
| 90201-08466 | ||||
| 90202-16105 | ||||
| 90204-08041 | ||||
| 90204-11025 | ||||
| 90386-12099 | ||||
| 90386-14160 | ||||
| 90564-14155 | ||||
| 93312-14008 | ||||
| 93319-14008 | ||||
| 93540-54008 | ||||
| 93560-14010 | ||||
| 96160-01000 | ||||

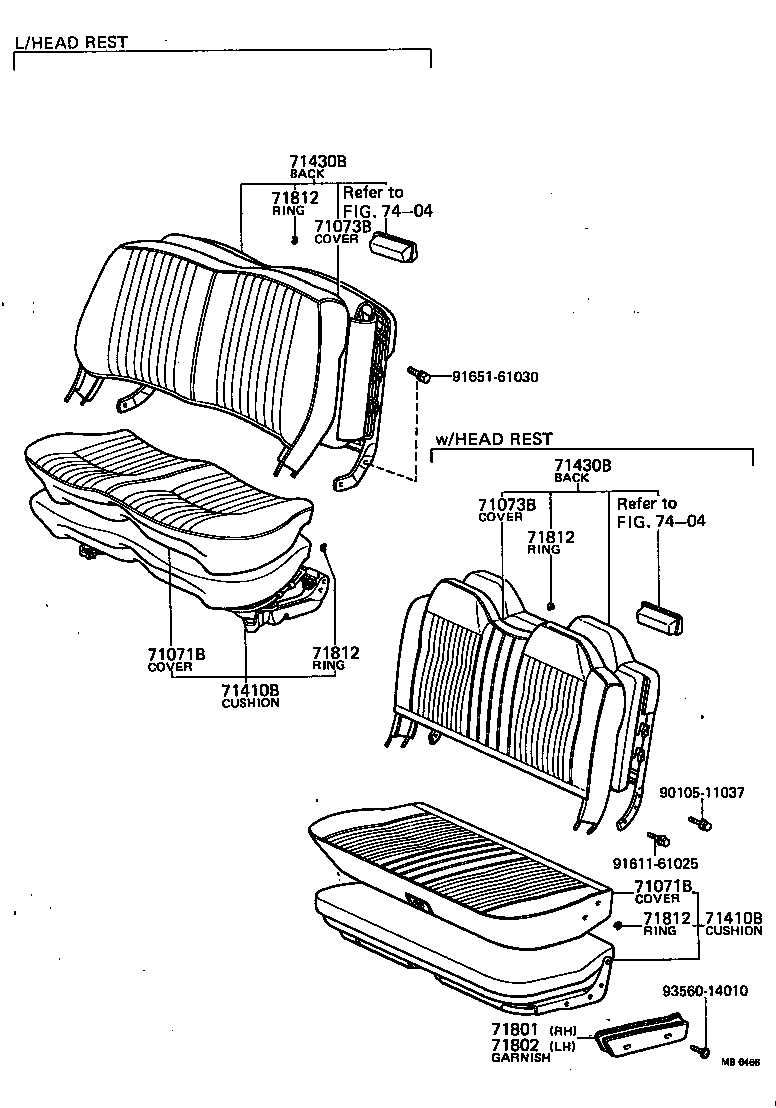

(7308-7808)RT100,116
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71410B - CUSHION ASSY, FRONT SEAT(FOR BENCH TYPE) | ||||
| 71410-2045105 |
RT100,116..3H..STD VL.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-2045103 |
RT100,116..3H..STD VL.GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2045101 |
RT100,116..3H..STD VL.BLACK,BLACK,TRIM2# |
1 | ||
| 71410B - CUSHION ASSY, FRONT SEAT(FOR BENCH TYPE) | ||||
| 71410-2045105 |
RT100,116..3H..STD VL.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-2045103 |
RT100,116..3H..STD VL.GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2045101 |
RT100,116..3H..STD VL.BLACK,BLACK,TRIM2# |
1 | ||
| 71430B - BACK ASSY, FRONT SEAT(FOR BENCH TYPE) | ||||
| 71430-2044105 |
RT100,116..3H..STD VL.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-2038201 |
RT100,116..3H..STD VL.BLACK,BLACK,TRIM2# |
1 | ||
| 71430-2044103 |
RT100,116..3H..STD VL.GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2038205 |
RT100,116..3H..STD VL.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-2044101 |
RT100,116..3H..STD VL.BLACK,BLACK,TRIM2# |
1 | ||
| 71430-2038203 |
RT100,116..3H..STD VL.GRAY,GRAY,TRIM1# |
1 | ||
| 71430B - BACK ASSY, FRONT SEAT(FOR BENCH TYPE) | ||||
| 71430-2044105 |
RT100,116..3H..STD VL.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-2038201 |
RT100,116..3H..STD VL.BLACK,BLACK,TRIM2# |
1 | ||
| 71430-2044103 |
RT100,116..3H..STD VL.GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2038205 |
RT100,116..3H..STD VL.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-2044101 |
RT100,116..3H..STD VL.BLACK,BLACK,TRIM2# |
1 | ||
| 71430-2038203 |
RT100,116..3H..STD VL.GRAY,GRAY,TRIM1# |
1 | ||
| 71801 - GARNISH SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71821-2005006 |
RT100,104,11#..LHD FOR SEPARATE TYPE,BROWN,BROWN,TRIM4# |
1 | ||
| 71821-2005005 |
RT100,104,116,118..LHD FOR SEPARATE TYPE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71821-20050 |
RT10#,110,112,116,117,118..LHD FOR SEPARATE TYPE |
1 | ||
| 71821-2005001 |
RT100,104,11#..LHD FOR SEPARATE TYPE,BLACK,BLACK,TRIM2# |
1 | ||
| 71802 - GARNISH SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71822-20060 |
RT100..3H;RT116..LHD..3H FOR BENCH TYPE |
1 | ||
| 71822-2005001 |
RT100,104,11#..LHD FOR SEPARATE TYPE,BLACK,BLACK,TRIM2# |
1 | ||
| 71822-2005005 |
RT100,104,116,118..LHD FOR SEPARATE TYPE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71822-2005006 |
RT100,104,11#..LHD FOR SEPARATE TYPE,BROWN,BROWN,TRIM4# |
1 | ||
| 71822-2006006 |
RT100..3H;RT116..LHD..3H FOR BENCH TYPE,BROWN,BROWN,TRIM4# |
1 | ||
| 71822-2006001 |
RT100..3H;RT116..LHD..3H FOR BENCH TYPE,BLACK,BLACK,TRIM2# |
1 | ||
| 71822-20050 |
RT10#,110,112,116,117,118..LHD FOR SEPARATE TYPE |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
RT10#,11# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
RT10#,11# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
RT10#,11# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
RT10#,11# |
1 | ||
| Common parts | ||||
| 90105-11037 | ||||
| 91611-61025 | ||||
| 91651-61030 | ||||
| 93560-14010 | ||||
| Linked diagrams | ||||
| 7404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
