RT116L-YRF (1973)
Toyota Corona

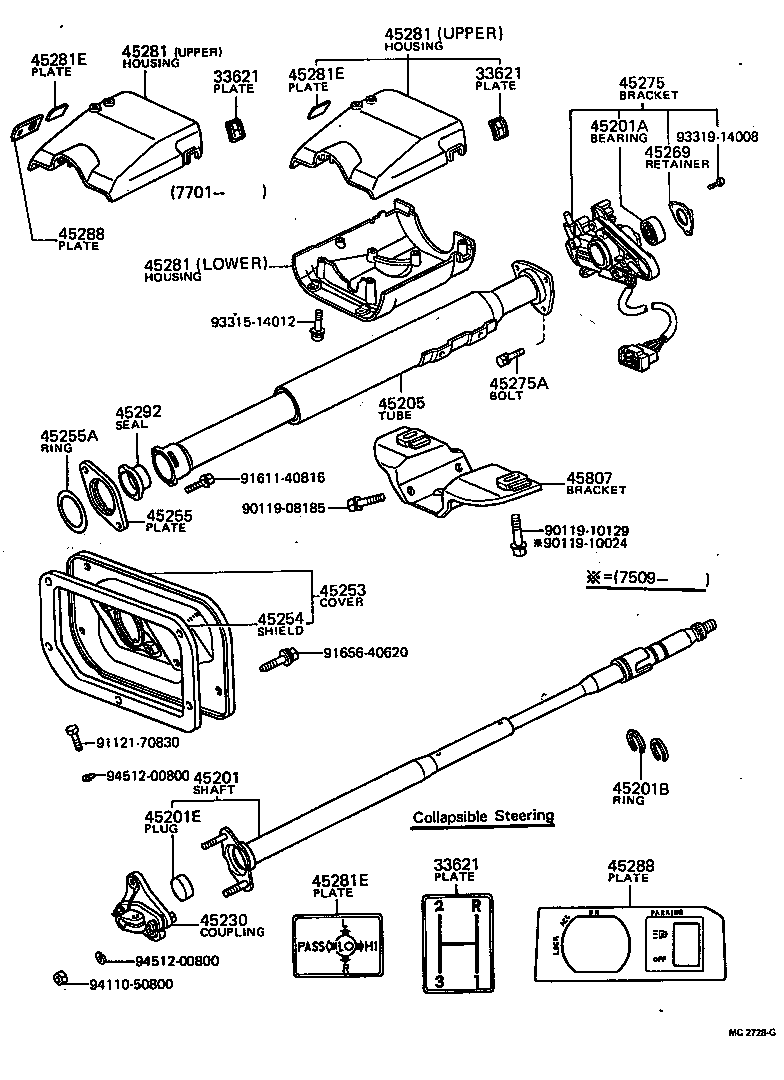

(7308-7905)RT10#,112,114,116,117,118
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-20150 |
RT10#,112,114,116,117,118 COLLAPSIBLE |
1 | ||
| 45201-20141 |
RT100,110,116 RIGID |
1 | ||
| 45201-20140 |
RT100,110,116 RIGID |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
RT10#,11# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RT10#,11# T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
RT10#,11# T=1.35-1.45,T=1.4 |
2 | ||
| 45201E - PLUG, PLATE(FOR STEERING MAIN SHAFT) | ||||
| 90333-21008 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA COLLAPSIBLE |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-20040 |
RT104,114,116,118 COLLAPSIBLE |
1 | ||
| 45205-20080 |
RT100,110,116..LHD |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-20020 |
RT100,110,116 RIGID |
1 | ||
| 45230-30041 |
RT10#,112,114,116,117,118 COLLAPSIBLE |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45253-20911 |
RT100,116..LHD..3H |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-20030 |
RT10#,11#..LHD |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-20030 |
RT10#,11# |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-45202 |
RT10#,11# |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-20010 |
RT10#,11# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-20160 |
RT10#,11#..LHD |
1 | ||
| 45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET) | ||||
| 91611-40616 |
RT10#,11# |
3 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-20080 |
RT100,116..LHD..3H LOWER |
1 | ||
| 45023-20070 |
RT100,116..LHD..3H UPPER |
1 | ||
| 45286-2011001 |
RT100,116..LHD..3H BLACK,UPPER,BLACK,TRIM2# |
1 | ||
| 45286-2011005 |
RT100,116..LHD..3H BEIGE,UPPER,BEIGE,TRIM4# |
1 | ||
| 45287-2008003 |
RT100,116..LHD..3H GRAY,LOWER,GRAY,TRIM1# |
1 | ||
| 45287-2008001 |
RT100,116..LHD..3H BLACK,LOWER,BLACK,TRIM2# |
1 | ||
| 45286-2011003 |
RT100,116..LHD..3H GRAY,UPPER,GRAY,TRIM1# |
1 | ||
| 45287-2008005 |
RT100,116..LHD..3H BEIGE,LOWER,BEIGE,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-20080 |
RT100,116..LHD..3H LOWER |
1 | ||
| 45023-20070 |
RT100,116..LHD..3H UPPER |
1 | ||
| 45286-2011001 |
RT100,116..LHD..3H BLACK,UPPER,BLACK,TRIM2# |
1 | ||
| 45286-2011005 |
RT100,116..LHD..3H BEIGE,UPPER,BEIGE,TRIM4# |
1 | ||
| 45287-2008003 |
RT100,116..LHD..3H GRAY,LOWER,GRAY,TRIM1# |
1 | ||
| 45287-2008001 |
RT100,116..LHD..3H BLACK,LOWER,BLACK,TRIM2# |
1 | ||
| 45286-2011003 |
RT100,116..LHD..3H GRAY,UPPER,GRAY,TRIM1# |
1 | ||
| 45287-2008005 |
RT100,116..LHD..3H BEIGE,LOWER,BEIGE,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-20080 |
RT100,116..LHD..3H LOWER |
1 | ||
| 45023-20070 |
RT100,116..LHD..3H UPPER |
1 | ||
| 45286-2011001 |
RT100,116..LHD..3H BLACK,UPPER,BLACK,TRIM2# |
1 | ||
| 45286-2011005 |
RT100,116..LHD..3H BEIGE,UPPER,BEIGE,TRIM4# |
1 | ||
| 45287-2008003 |
RT100,116..LHD..3H GRAY,LOWER,GRAY,TRIM1# |
1 | ||
| 45287-2008001 |
RT100,116..LHD..3H BLACK,LOWER,BLACK,TRIM2# |
1 | ||
| 45286-2011003 |
RT100,116..LHD..3H GRAY,UPPER,GRAY,TRIM1# |
1 | ||
| 45287-2008005 |
RT100,116..LHD..3H BEIGE,LOWER,BEIGE,TRIM4# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-22040 |
RT10#,11#..ARL,EUR,GEN,SA COLLAPSIBLE |
1 | ||
| 45292-20020 |
RT100,110,116 RIGID |
1 | ||
| 45292-20030 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA COLLAPSIBLE |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-20060 |
RT100..LHD..GEN;RT100..DLX..PHL;RT102,104,112,114,116,117,118..LHD |
1 | ||
| Common parts | ||||
| 90119-08185 | ||||
| 90119-10024 | ||||
| 90119-10129 | ||||
| 91121-70830 | ||||
| 91611-40816 | ||||
| 91656-40620 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||

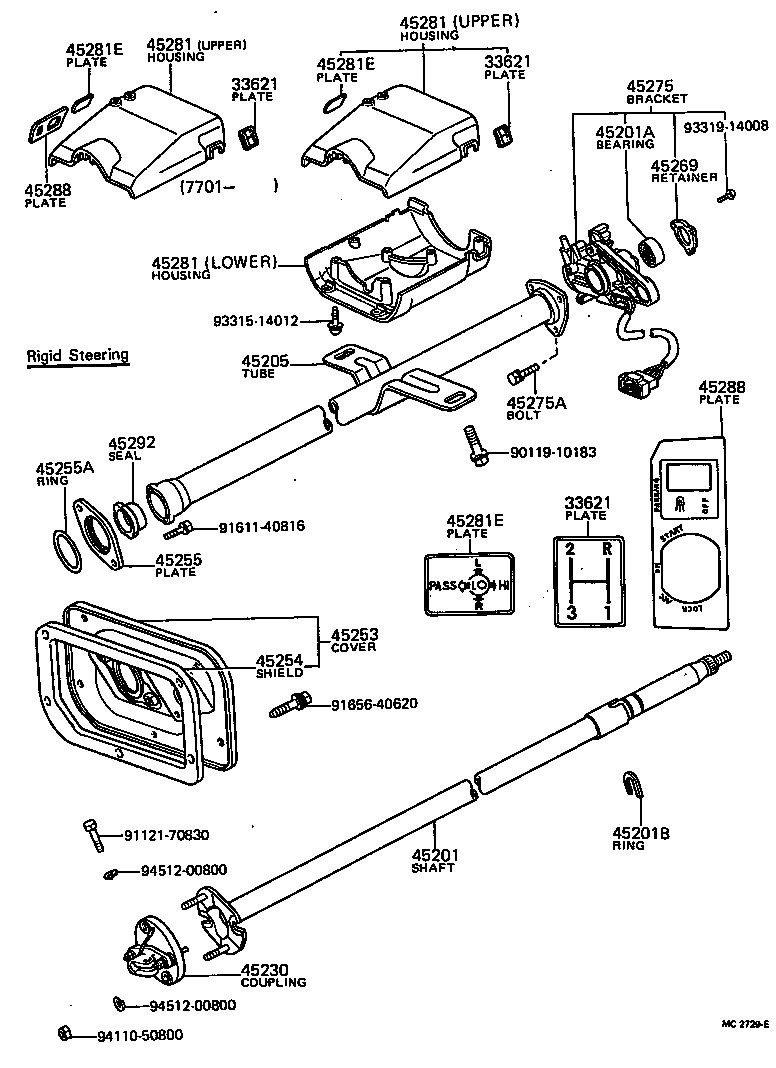

(7308-7808)RT100,110,116
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-20150 |
RT10#,112,114,116,117,118 COLLAPSIBLE |
1 | ||
| 45201-20141 |
RT100,110,116 RIGID |
1 | ||
| 45201-20140 |
RT100,110,116 RIGID |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
RT10#,11# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RT10#,11# T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
RT10#,11# T=1.35-1.45,T=1.4 |
2 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-20040 |
RT104,114,116,118 COLLAPSIBLE |
1 | ||
| 45205-20080 |
RT100,110,116..LHD |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-20020 |
RT100,110,116 RIGID |
1 | ||
| 45230-30041 |
RT10#,112,114,116,117,118 COLLAPSIBLE |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45253-20911 |
RT100,116..LHD..3H |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-20030 |
RT10#,11#..LHD |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-20030 |
RT10#,11# |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-45202 |
RT10#,11# |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-20010 |
RT10#,11# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-20160 |
RT10#,11#..LHD |
1 | ||
| 45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET) | ||||
| 91611-40616 |
RT10#,11# |
3 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-20080 |
RT100,116..LHD..3H LOWER |
1 | ||
| 45023-20070 |
RT100,116..LHD..3H UPPER |
1 | ||
| 45286-2011001 |
RT100,116..LHD..3H BLACK,UPPER,BLACK,TRIM2# |
1 | ||
| 45286-2011005 |
RT100,116..LHD..3H BEIGE,UPPER,BEIGE,TRIM4# |
1 | ||
| 45287-2008003 |
RT100,116..LHD..3H GRAY,LOWER,GRAY,TRIM1# |
1 | ||
| 45287-2008001 |
RT100,116..LHD..3H BLACK,LOWER,BLACK,TRIM2# |
1 | ||
| 45286-2011003 |
RT100,116..LHD..3H GRAY,UPPER,GRAY,TRIM1# |
1 | ||
| 45287-2008005 |
RT100,116..LHD..3H BEIGE,LOWER,BEIGE,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-20080 |
RT100,116..LHD..3H LOWER |
1 | ||
| 45023-20070 |
RT100,116..LHD..3H UPPER |
1 | ||
| 45286-2011001 |
RT100,116..LHD..3H BLACK,UPPER,BLACK,TRIM2# |
1 | ||
| 45286-2011005 |
RT100,116..LHD..3H BEIGE,UPPER,BEIGE,TRIM4# |
1 | ||
| 45287-2008003 |
RT100,116..LHD..3H GRAY,LOWER,GRAY,TRIM1# |
1 | ||
| 45287-2008001 |
RT100,116..LHD..3H BLACK,LOWER,BLACK,TRIM2# |
1 | ||
| 45286-2011003 |
RT100,116..LHD..3H GRAY,UPPER,GRAY,TRIM1# |
1 | ||
| 45287-2008005 |
RT100,116..LHD..3H BEIGE,LOWER,BEIGE,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-20080 |
RT100,116..LHD..3H LOWER |
1 | ||
| 45023-20070 |
RT100,116..LHD..3H UPPER |
1 | ||
| 45286-2011001 |
RT100,116..LHD..3H BLACK,UPPER,BLACK,TRIM2# |
1 | ||
| 45286-2011005 |
RT100,116..LHD..3H BEIGE,UPPER,BEIGE,TRIM4# |
1 | ||
| 45287-2008003 |
RT100,116..LHD..3H GRAY,LOWER,GRAY,TRIM1# |
1 | ||
| 45287-2008001 |
RT100,116..LHD..3H BLACK,LOWER,BLACK,TRIM2# |
1 | ||
| 45286-2011003 |
RT100,116..LHD..3H GRAY,UPPER,GRAY,TRIM1# |
1 | ||
| 45287-2008005 |
RT100,116..LHD..3H BEIGE,LOWER,BEIGE,TRIM4# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-22040 |
RT10#,11#..ARL,EUR,GEN,SA COLLAPSIBLE |
1 | ||
| 45292-20020 |
RT100,110,116 RIGID |
1 | ||
| 45292-20030 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA COLLAPSIBLE |
1 | ||
| Common parts | ||||
| 90119-10183 | ||||
| 91121-70830 | ||||
| 91611-40816 | ||||
| 91656-40620 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||

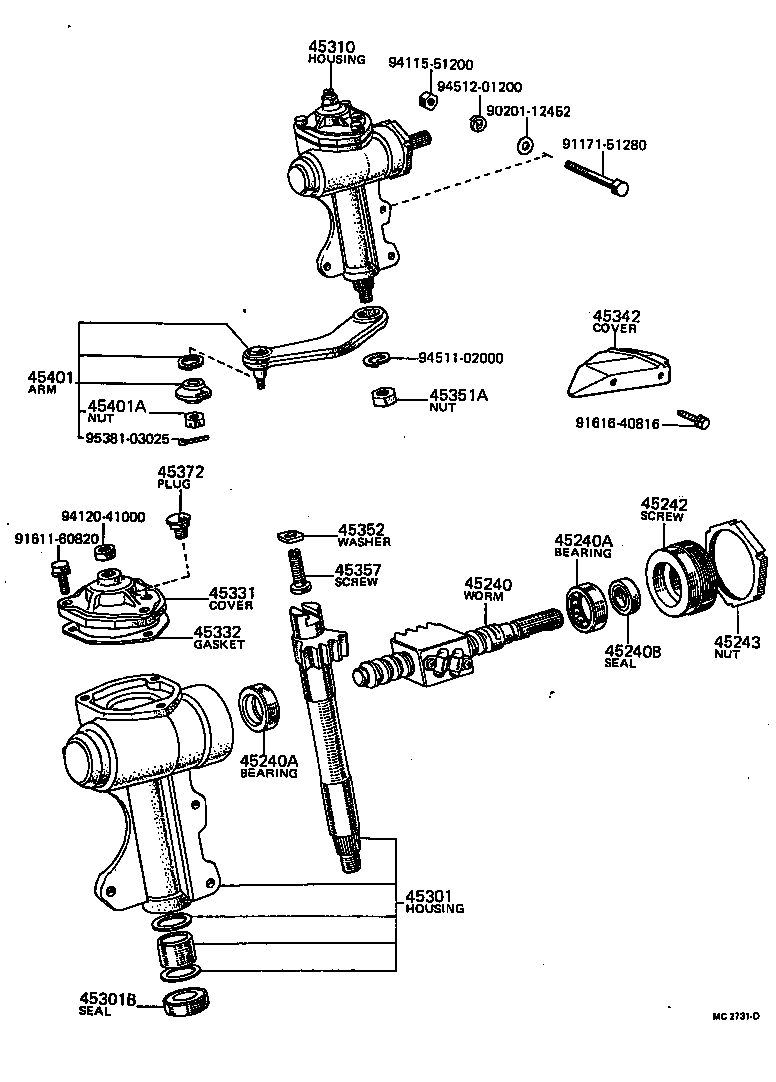

(7308-7905)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-20020 |
RT100,110,116..LHD |
1 | ||
| 45240-20021 |
RT100,110,116..LHD |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-41017 |
RT10#,11#..LHD |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-41017 |
RT10#,11#..LHD |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-17092 |
RT10#,11# |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-20040 |
RT100,110,116..LHD |
1 | ||
| 45242-20041 |
RT100,110,116..LHD |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-22011 |
RT100,110,116..LHD |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-20160 |
RT100,110,116..LHD |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-28027 |
RT10#,11# |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-20190 |
RT100,110,116..LHD |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-20030 |
RT10#,11#..LHD |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-20060 |
RT10#,11#..LHD |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
RT10#,11# |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-20010 |
RT10#,11#..LHD T=2.00,T=2.00 |
1 | ||
| 45355-20010 |
RT10#,11#..LHD T=2.10,T=2.10 |
1 | ||
| 45354-20010 |
RT10#,11#..LHD T=2.05,T=2.05 |
1 | ||
| 45353-20010 |
RT10#,11#..LHD T=1.95,T=1.95 |
1 | ||
| 45356-20010 |
RT10#,11#..LHD T=2.15,T=2.15 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-20020 |
RT100,104,11#..LHD |
1 | ||
| 45357-30040 |
RT10#,11#..LHD |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
RT10#,11# |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-29095 |
RT10#,11# |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
RT10#,11# |
1 | ||
| Common parts | ||||
| 90201-12452 | ||||
| 91171-51280 | ||||
| 91611-60820 | ||||
| 91616-40816 | ||||
| 94115-51200 | ||||
| 94120-41000 | ||||
| 94511-02000 | ||||
| 94512-01200 | ||||
| 95381-03025 | ||||
