RT116L-KRF (1973)
Toyota Corona
Production
Aug 1973
-
Aug 1978
Engine
12R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

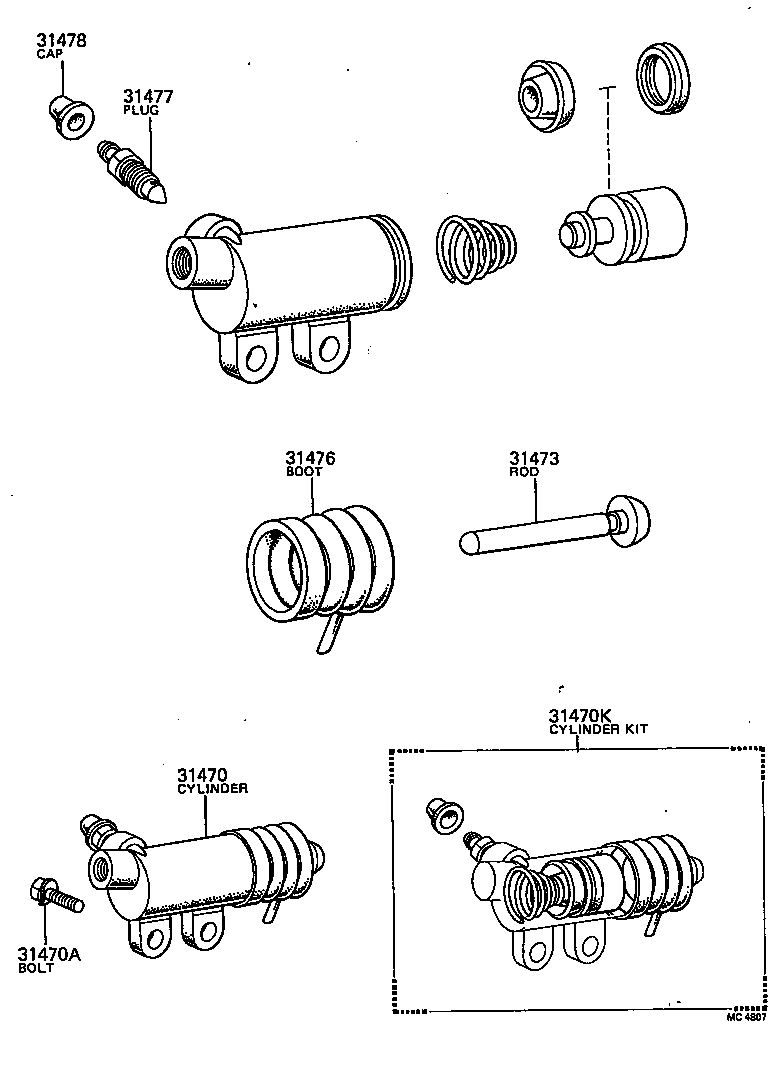

(7308-7701)MTM ; (7701-7708)RT100,116
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31470 - CYLINDER ASSY, CLUTCH RELEASE | ||||
| 31470-20101 |
RT100,110,116 |
1 | ||
| 31470-20100 |
RT100,110,116 |
1 | ||
| 31470-20140 |
RT100,116 |
1 | ||
| 31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING) | ||||
| 91611-40825 |
RT10#,11#..MTM *8-1.25PX25-25 |
2 | ||
| 31470K - CYLINDER KIT, CLUTCH RELEASE | ||||
| 04313-30054 |
RT10#,11#..MTM |
1 | ||
| 04313-30052 |
RT10#,11#..MTM |
1 | ||
| 04313-30054 |
RT100,116 |
1 | ||
| 31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1 | ||||
| 31473-30021 |
RT100,116 |
1 | ||
| 31473-30021 |
RT10#,11#..MTM |
1 | ||
| 31475 - NUT, CLUTCH RELEASE CYLINDER PUSH ROD | ||||
| 31475-30010 |
RT10#,11#..MTM |
1 | ||
| 31475-30011 |
RT100,116 |
1 | ||
| 31475-30020 |
RT100,110,116 |
1 | ||
| 31475-30011 |
RT10#,11#..MTM |
1 | ||
| 31476 - BOOT, CLUTCH RELEASE CYLINDER | ||||
| 31476-20040 |
RT100,116 |
1 | ||
| 31476-20040 |
RT10#,11#..MTM |
1 | ||
| 31476-30021 |
RT10#,11#..MTM |
1 | ||
| 31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER) | ||||
| 47547-12010 |
RT10#,11#..MTM |
1 | ||
| 31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER) | ||||
| 31478-30010 |
RT10#,11#..MTM |
1 | ||
| Common parts | ||||
| 94120-40800 | ||||

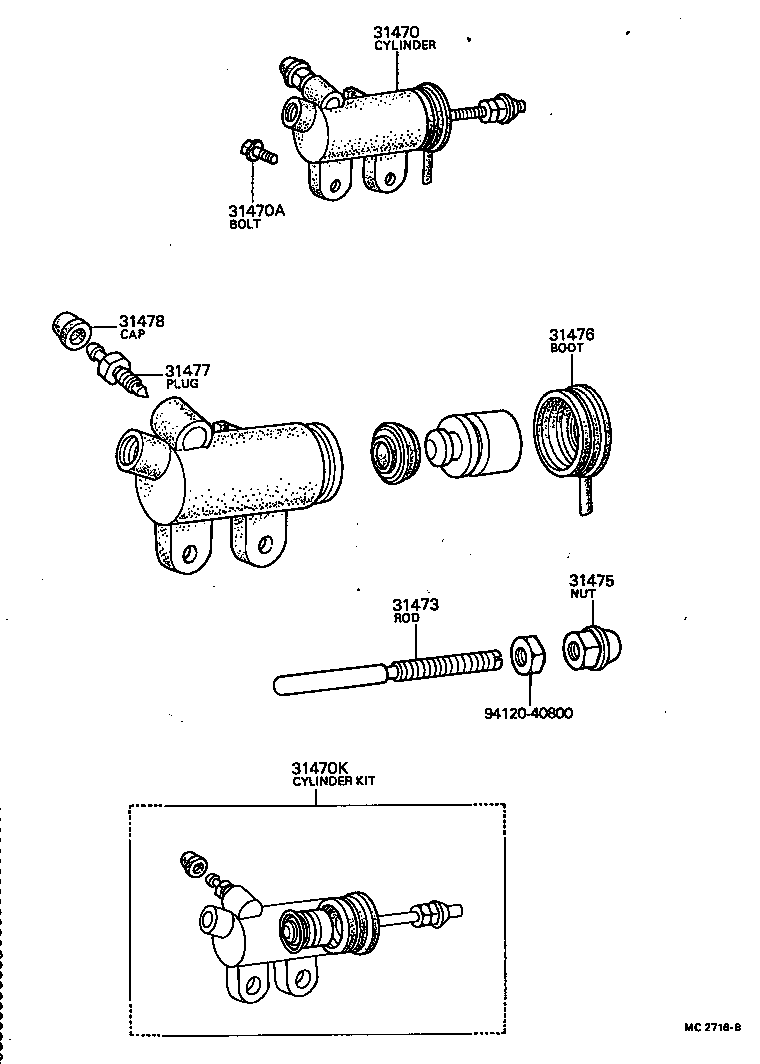

(7701-7708)RT102,104,114,118..MTM ; (7708-7905)MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31470 - CYLINDER ASSY, CLUTCH RELEASE | ||||
| 31470-20101 |
RT100,110,116 |
1 | ||
| 31470-20100 |
RT100,110,116 |
1 | ||
| 31470-20140 |
RT100,116 |
1 | ||
| 31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING) | ||||
| 91611-40825 |
RT10#,11#..MTM *8-1.25PX25-25 |
2 | ||
| 31470K - CYLINDER KIT, CLUTCH RELEASE | ||||
| 04313-30054 |
RT10#,11#..MTM |
1 | ||
| 04313-30052 |
RT10#,11#..MTM |
1 | ||
| 04313-30054 |
RT100,116 |
1 | ||
| 31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1 | ||||
| 31473-30021 |
RT100,116 |
1 | ||
| 31473-30021 |
RT10#,11#..MTM |
1 | ||
| 31476 - BOOT, CLUTCH RELEASE CYLINDER | ||||
| 31476-20040 |
RT100,116 |
1 | ||
| 31476-20040 |
RT10#,11#..MTM |
1 | ||
| 31476-30021 |
RT10#,11#..MTM |
1 | ||
| 31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER) | ||||
| 47547-12010 |
RT10#,11#..MTM |
1 | ||
| 31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER) | ||||
| 31478-30010 |
RT10#,11#..MTM |
1 | ||
