RT116L-KRF (1973)

Toyota Corona

Production Aug 1973 - Aug 1978
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7808)12R#

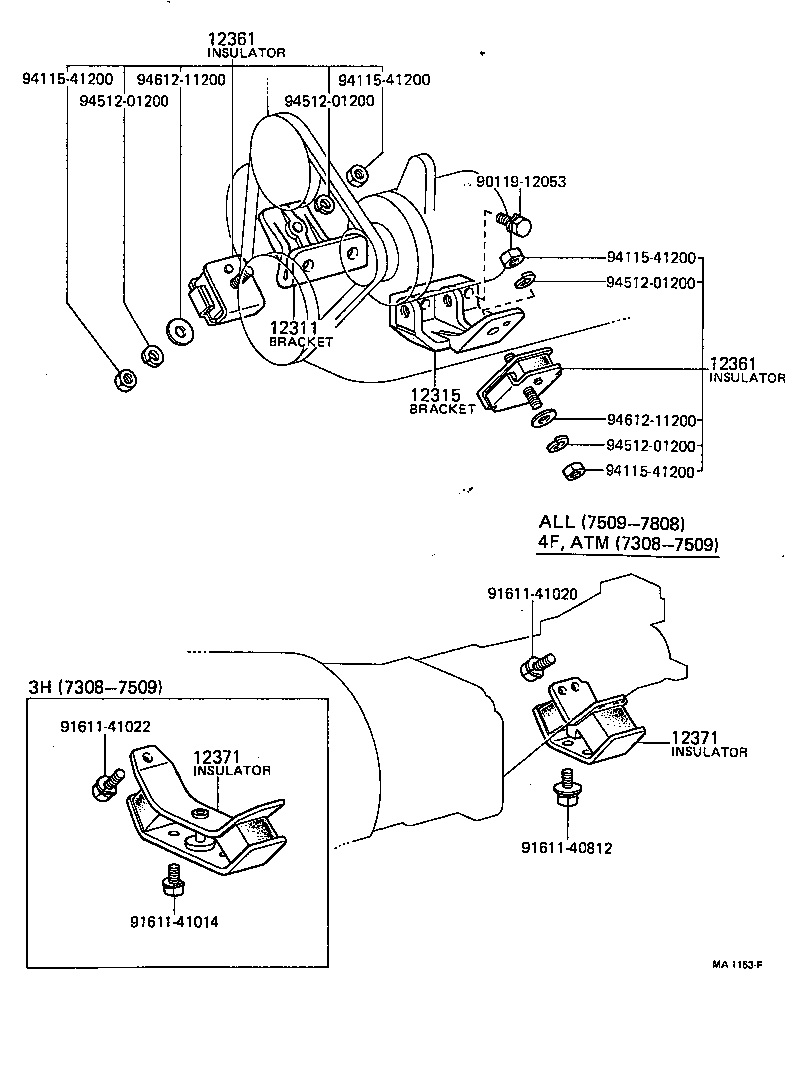

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 9011912053 9161140812 9161141014 9161141020 9161141022 9411541200 9411541200 9411541200 9411541200 9451201200 9451201200 9451201200 9451201200 9461211200 9461211200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-30010

12R#..RT100,110,116

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-30021

12R#..RT100,110,116

 1
12315-30020

12R..RT100,110,116

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-39105

12R#..RT100,110,116

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-39105

12R#..RT100,110,116

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

12R#..RT100,110,116

 1
12371-34030

12R,18R..RT100,104,110,114,116,118..4F

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

12R#..RT100,110,116

 1
12371-34030

12R,18R..RT100,104,110,114,116,118..4F

 1
Common parts
90119-12053
91611-40812
91611-41014
91611-41020
91611-41022
94115-41200
94512-01200
94612-11200
