RT114L-KD (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7808)RT110,112,114

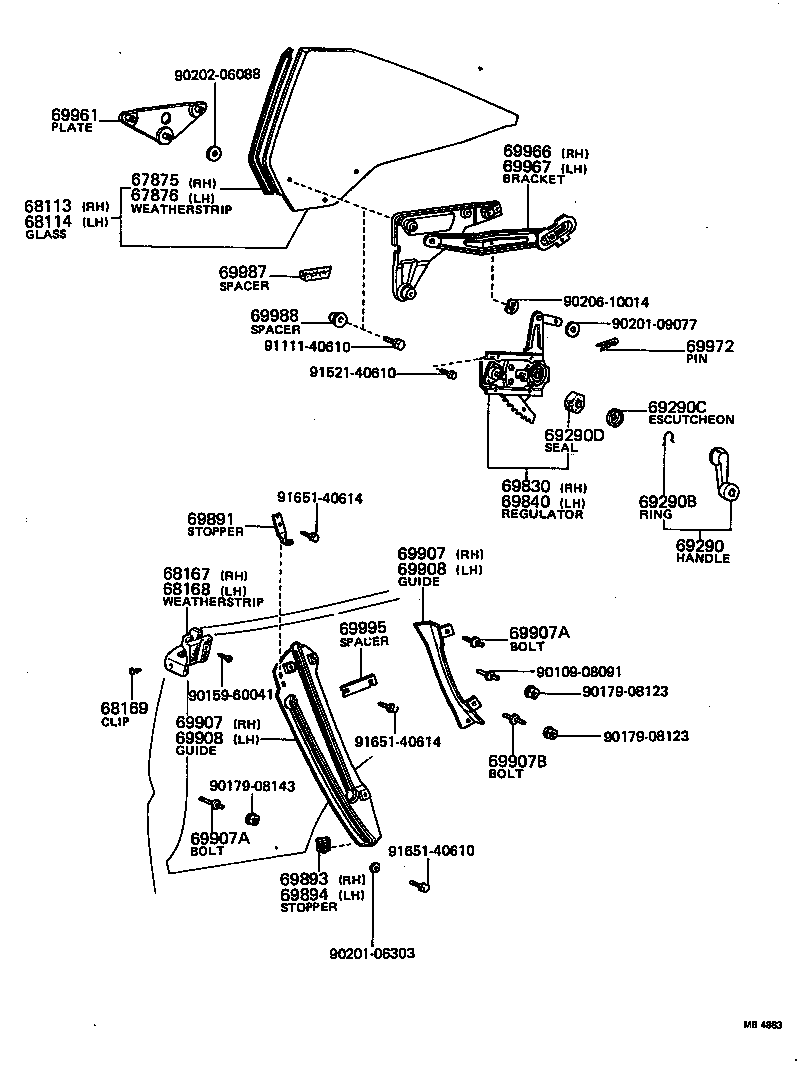

Click highlighted areas on diagram

diagram 67875 67876 68113 68114 68167 68168 68169 69290 69290B 69290C 69290D 69830 69840 69891 69893 69894 69907 69907 69907A 69907A 69907B 69908 69908 69961 69966 69967 69972 69987 69988 69995 9010908091 9015960041 9017908123 9017908123 9017908143 9020106303 9020109077 9020206088 9020610014 9111140610 9152140610 9165140610 9165140614 9165140614
Part # Description Qty Price
67875 - WEATHERSTRIP, REAR QUARTER WINDOW GLASS, RH
67081-20020

RT110,112,114

 1
67876 - WEATHERSTRIP, REAR QUARTER WINDOW GLASS, LH
67082-20020

RT110,112,114

 1
68113 - GLASS, QUARTER WINDOW, RH
68103-20030

RT110,114

TN.TP.T=4.0

 1
68103-20030

RT110,114

TN.TP.T=4.0

 1
68114 - GLASS, QUARTER WINDOW, LH
68104-20030

RT110,114

TN.TP.T=4.0

 1
68104-20030

RT110,114

TN.TP.T=4.0

 1
68167 - WEATHERSTRIP, REAR QUARTER FRONT CORNER, RH
67941-20020

RT110,112,114

 1
68168 - WEATHERSTRIP, REAR QUARTER FRONT CORNER, LH
67942-20020

RT110,112,114

 1
68169 - CLIP, CORNER WEATHERSTRIP
67868-30030

RT110,112,114

 4
69290 - HANDLE ASSY, QUARTER WINDOW REGULATOR
69260-14010

RT110,112,114

 2
69260-1201006

RT110,114

BROWN,BROWN,TRIM4#

 2
69260-1201001

RT110,114

BLACK,BLACK,TRIM2#

 2
69260-1201005

RT114

BEIGE,BEIGE,TRIM4#

 1
69290B - RING, SNAP(FOR QUARTER WINDOW REGULATOR HANDLE)
90520-01274

RT110,112,114

 2
69290C - ESCUTCHEON(FOR QUARTER WINDOW REGULATOR HANDLE)
69266-2201006

RT110,114

BROWN,BROWN,TRIM4#

 2
69266-2201001

RT110,114

BLACK,BLACK,TRIM2#

 2
69285-22010

RT110,114

 2
69266-22010

RT110,112,114

 2
69266-2201005

RT114

BEIGE,BEIGE,TRIM4#

 1
69290D - SEAL(FOR QUARTER WINDOW REGULATOR HANDLE)
69848-30010

RT110,112,114

 2
69830 - REGULATOR ASSY, REAR QUARTER WINDOW, RH
69803-20060

RT110,112,114

 1
69840 - REGULATOR ASSY, REAR QUARTER WINDOW, LH
69804-20060

RT110,112,114

 1
69891 - STOPPER, QUARTER WINDOW GLASS, UPPER
67241-20030

RT110,112,114

 2
69893 - STOPPER,QUARTER WINDOW GLASS LOWER, RH
67242-20020

RT110,112,114

 1
69894 - STOPPER, QUARTER WINDOW GLASS LOWER, LH
67242-20020

RT110,112,114

 1
69907 - GUIDE SUB-ASSY, QUARTER REGULATOR ROLLER, RH
67407-20040

RT110,112,114

FOR REAR

 1
69945-20020

RT110,112,114

FOR FRONT

 1
69907 - GUIDE SUB-ASSY, QUARTER REGULATOR ROLLER, RH
67407-20040

RT110,112,114

FOR REAR

 1
69945-20020

RT110,112,114

FOR FRONT

 1
69907A - BOLT, STUD, NO.1(FOR QUARTER REGULATOR ROLLER GUIDE)
90116-08287

RT110,112,114

 2
69907A - BOLT, STUD, NO.1(FOR QUARTER REGULATOR ROLLER GUIDE)
90116-08287

RT110,112,114

 2
69907B - BOLT, STUD, NO.2(FOR QUARTER REGULATOR ROLLER GUIDE)
90116-08286

RT110,112,114

L=37

 2
90116-08295

RT110,112,114

L=27

 2
69908 - GUIDE SUB-ASSY, QUARTER REGULATOR ROLLER, LH
69946-20020

RT110,112,114

FOR FRONT

 1
67408-20030

RT110,112,114

FOR REAR

 1
69908 - GUIDE SUB-ASSY, QUARTER REGULATOR ROLLER, LH
69946-20020

RT110,112,114

FOR FRONT

 1
67408-20030

RT110,112,114

FOR REAR

 1
69961 - PLATE, REAR QUARTER GLASS BRACKET
68173-20050

RT110,112,114

 2
69966 - BRACKET, REAR QUARTER WINDOW GLASS, RH
69083-20010

RT110,112,114

 1
69967 - BRACKET, REAR QUARTER WINDOW GLASS, LH
69084-20010

RT110,112,114

 1
69972 - PIN, QUARTER GLASS CHANNEL SETTING
69972-30010

RT110,112,114

 2
69987 - SPACER, QUARTER GLASS BELT
69987-20010

RT110,112,114

 2
69988 - SPACER, QUARTER WINDOW GLASS
69988-95550

RT110,112,114

 6
69995 - SPACER(FOR QUARTER REGULATOR ROLLER GUIDE)
67488-20010

RT110,112,114

 2
Common parts
90109-08091
90159-60041
90179-08123
90179-08143
90201-06303
90201-09077
90202-06088
90206-10014
91111-40610
91521-40610
91651-40610
91651-40614
