RT112L-HD (1973)

Toyota Corona

Production Aug 1973 - Sep 1975
Engine 16R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

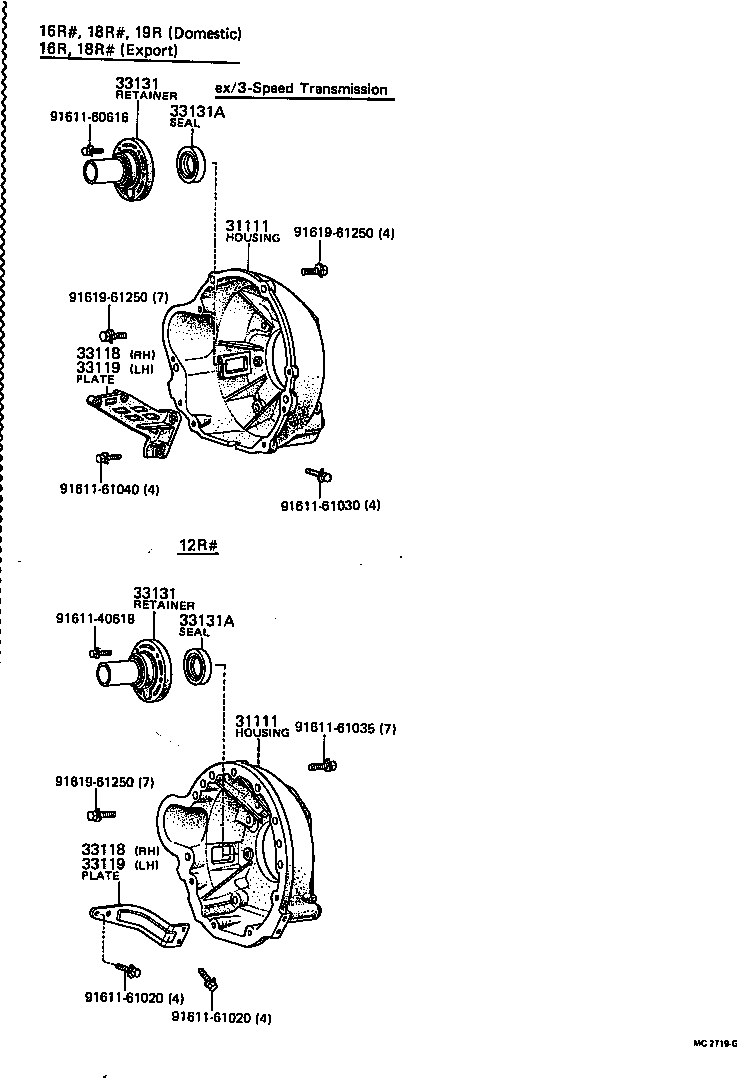

(7308-7509)3H ; (7308-7905)3FC,4F,5F

Click highlighted areas on diagram

diagram 31111 31111 33118 33118 33119 33119 33131 33131 33131A 33131A 9161140618 9161160616 9161161020 9161161020 9161161030 9161161035 9161161040 9161961250 9161961250 9161961250
Part # Description Qty Price
Common parts
91611-40618
91611-60616
91611-61020
91611-61030
91611-61035
91611-61040
91619-61250

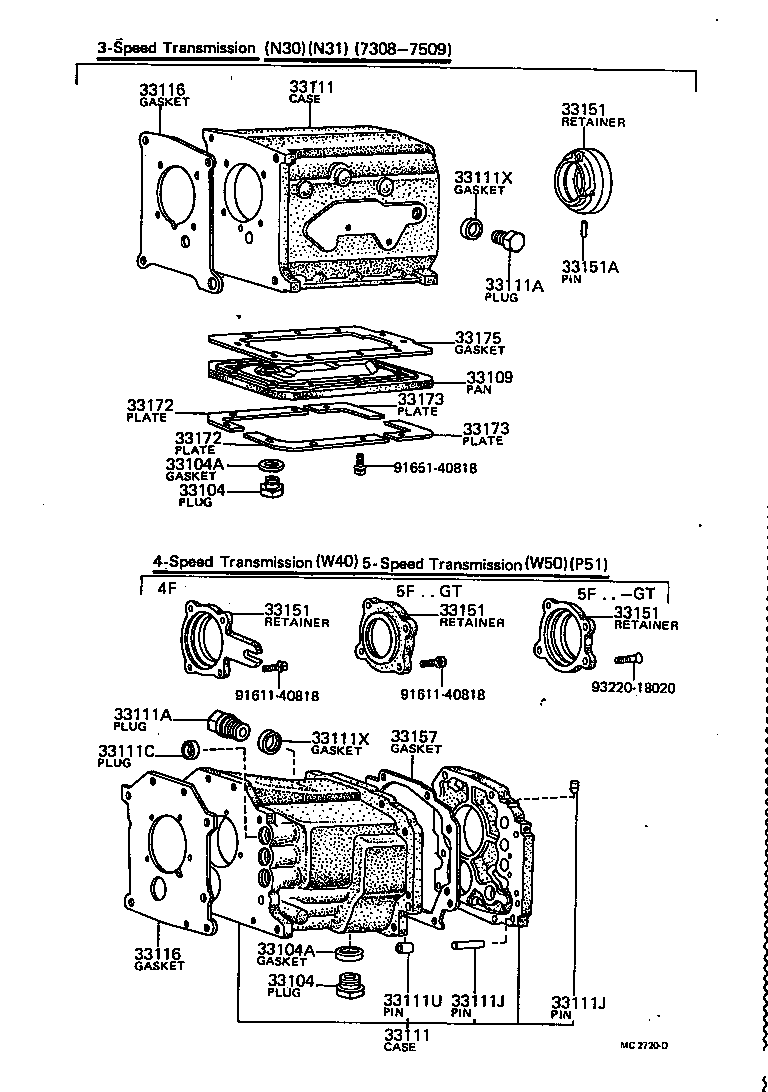

(7308-7509)3H ; (7308-7905)3FC,4F,5F

Click highlighted areas on diagram

diagram 33104 33104 33104A 33104A 33109 33111 33111 33111A 33111A 33111C 33111J 33111J 33111U 33111X 33111X 33116 33116 33151 33151 33151 33151 33151A 33157 33172 33172 33173 33173 33175 9161140818 9161140818 9165140818 9322018020
Part # Description Qty Price
Common parts
91611-40818
91651-40818
93220-18020
