RT110L-KDM (1975)

Toyota Corona

Production Nov 1975 - Jan 1977
Engine 12RM
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7701)

Click highlighted areas on diagram

diagram 27700 28301 4702 4702 83390 83391 83391 83399 83540 83540 84221 84230 85335 85336 85916 85926 85971 86530 89371 89492 89620 9152140610 9162140816 9165140812 9165140814 9165640816 9338118010 9338118010 9338118010 9411040800 9452300800 9452300800 9461110800
Part # Description Qty Price

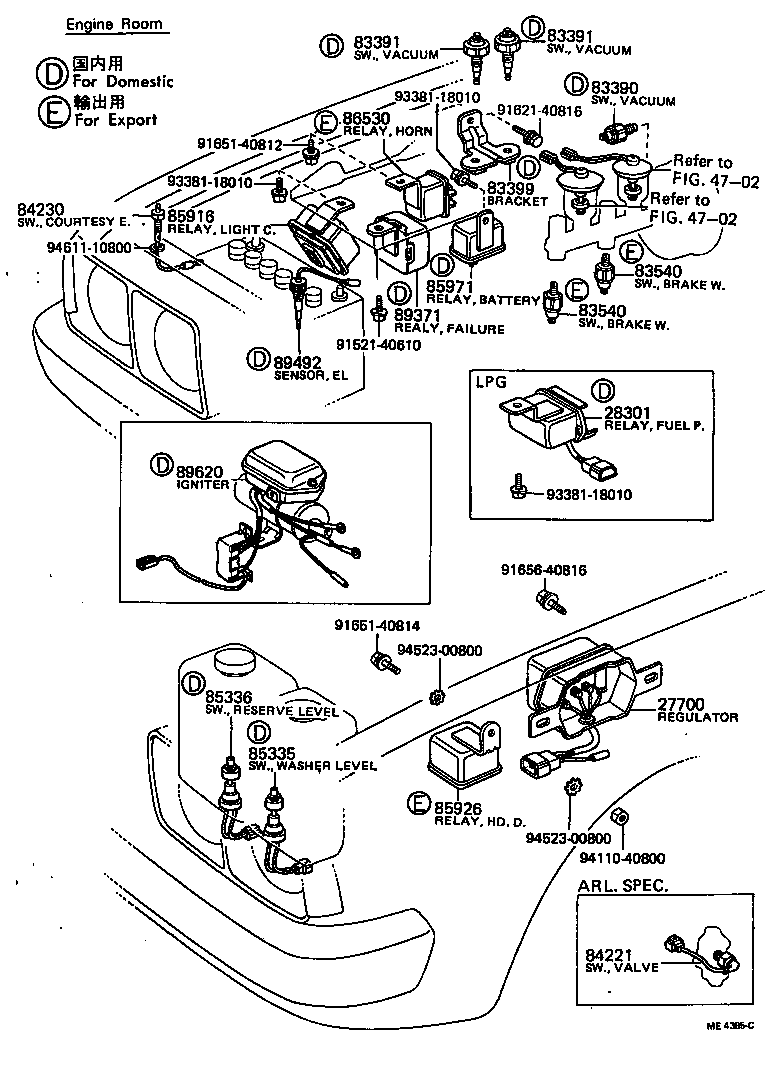

27700 - REGULATOR ASSY, GENERATOR
27700-36010

12R#,16R,18R#..RT10#,11#

 1
84230 - SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM)
84231-20010

RT100,110,112,114,116,117

 1
85916 - RELAY, LIGHT CONTROL
85919-20021

RT10#,11#

 1
85919-20020

RT10#,11#

 1
86530 - RELAY ASSY, HORN
86530-20060

RT10#,110,112,116,117,118..LHD

 1
Common parts
91521-40610
91621-40816
91651-40812
91651-40814
91656-40816
93381-18010
94110-40800
94523-00800
94611-10800
Linked diagrams
4702

(7308-7905)

Click highlighted areas on diagram

diagram 83520 83530 84210 84210 84210T 84210T 84210T 84210T 84540 84540 84540 89491 89491 89491A 89491A 9015950017 9015950017 9020616025 9046105023 9046106064 9046106080 9046106303 9046106645 9046106671 9046106686 9046108022 9046108041 9046315067 9052414001 9161140610 9165140610 9165640616 9328016016 9331915008 9451100500 9453100600 9461110500
Part # Description Qty Price

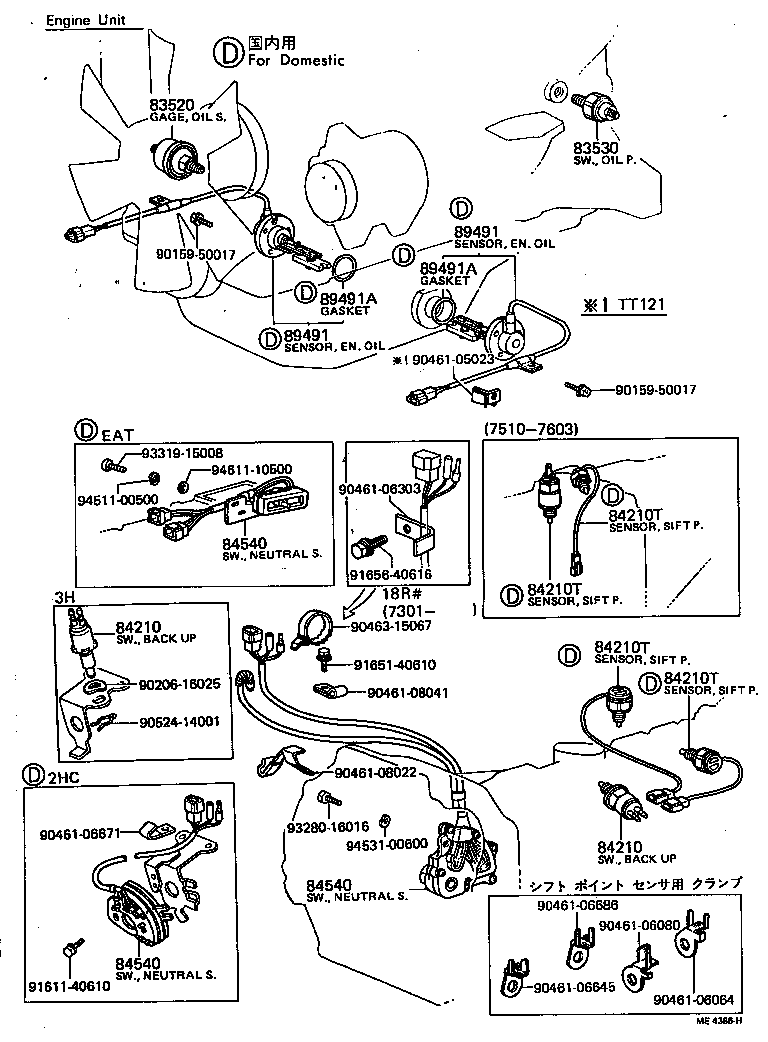

83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-36011

RT100,102,11#;RT104..3FC..SA;RT104..ARL,EUR,GEN

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-14010

RT10#,11#..4F,5F

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-14010

RT10#,11#..4F,5F

 1
Common parts
90159-50017
90206-16025
90461-05023
90461-06064
90461-06080
90461-06303
90461-06645
90461-06671
90461-06686
90461-08022
90461-08041
90463-15067
90524-14001
91611-40610
91651-40610
91656-40616
93280-16016
93319-15008
94511-00500
94531-00600
94611-10500

(7308-7701)

Click highlighted areas on diagram

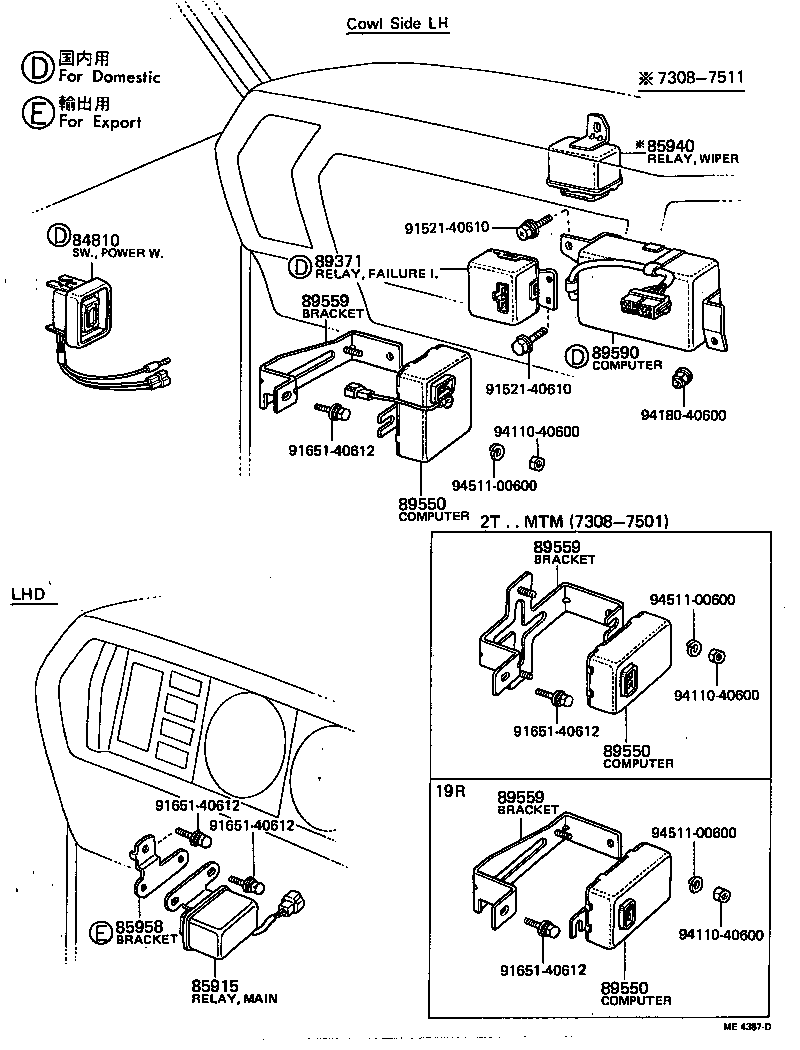

diagram 84810 85915 85940 85958 89371 89550 89550 89550 89559 89559 89559 89590 9152140610 9152140610 9165140612 9165140612 9165140612 9165140612 9165140612 9411040600 9411040600 9411040600 9418040600 9451100600 9451100600 9451100600
Part # Description Qty Price
Common parts
91521-40610
91651-40612
94110-40600
94180-40600
94511-00600

(7308-7701)

Click highlighted areas on diagram

diagram 28371A 81980 82600 82600A 82611 82612 82614 83650 84820 85915 85923 85940 86640 89550 89559 9011906005 9017906158 9152140614 9165140612 9165140612 9165140614 9165640616 9165640616 9331216012
Part # Description Qty Price

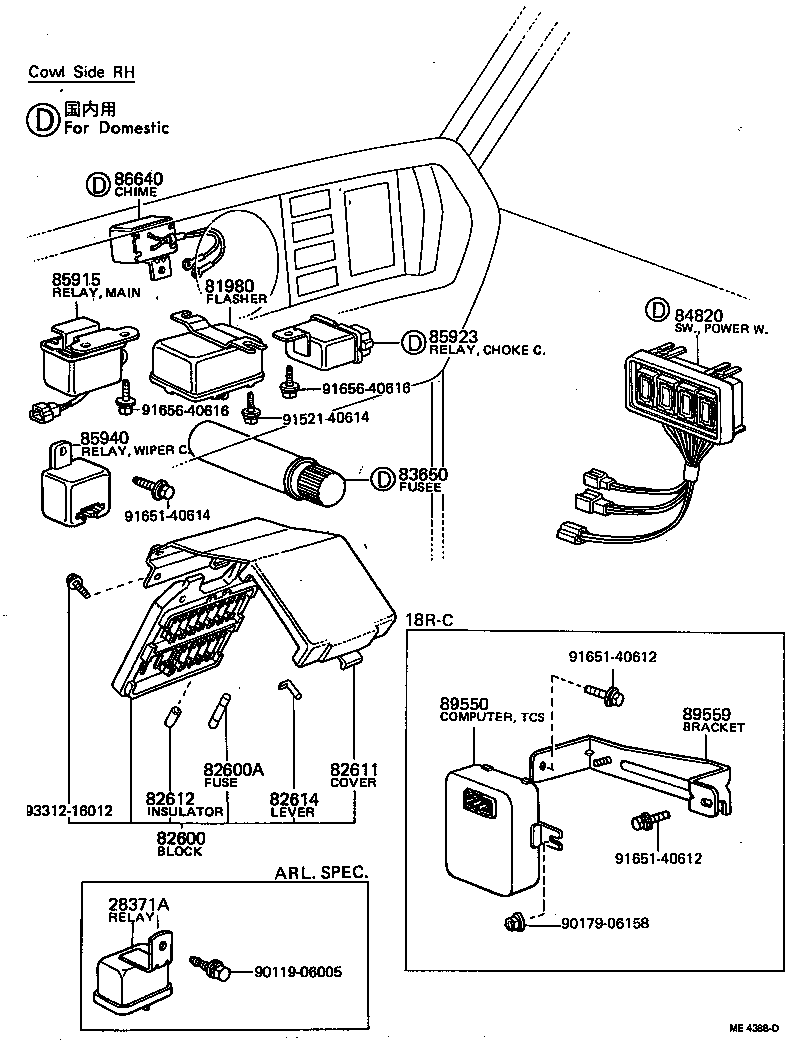

81980 - FLASHER ASSY, TURN SIGNAL
81980-20110

RT10#,11#

 1
82600 - BLOCK ASSY, FUSE
82600-20040

RT10#,11#

 1
82611 - COVER, FUSE BLOCK
82611-20040

RT10#,11#

 1
82612 - INSULATOR, FUSE BLOCK TERMINAL
82612-22020

RT10#,11#

 3
82614 - LEVER, FUSE
82614-30010

RT10#,11#

 1
Common parts
90119-06005
90179-06158
91521-40614
91651-40612
91651-40614
91656-40616
93312-16012

(7308-7701)

Click highlighted areas on diagram

diagram 84118 84119 84310 84310K 84312 84335 84450 84560 84650 84650A 84651 84659 84730 84790 84790B 85500 85500B 85533 85952 89481 89482 89489 9046106008 9046106069 9048013055 9161640616 9165640616 9331514008 9331514012 9331514012 9331913012 9331915012 9353055012 9358055012
Part # Description Qty Price

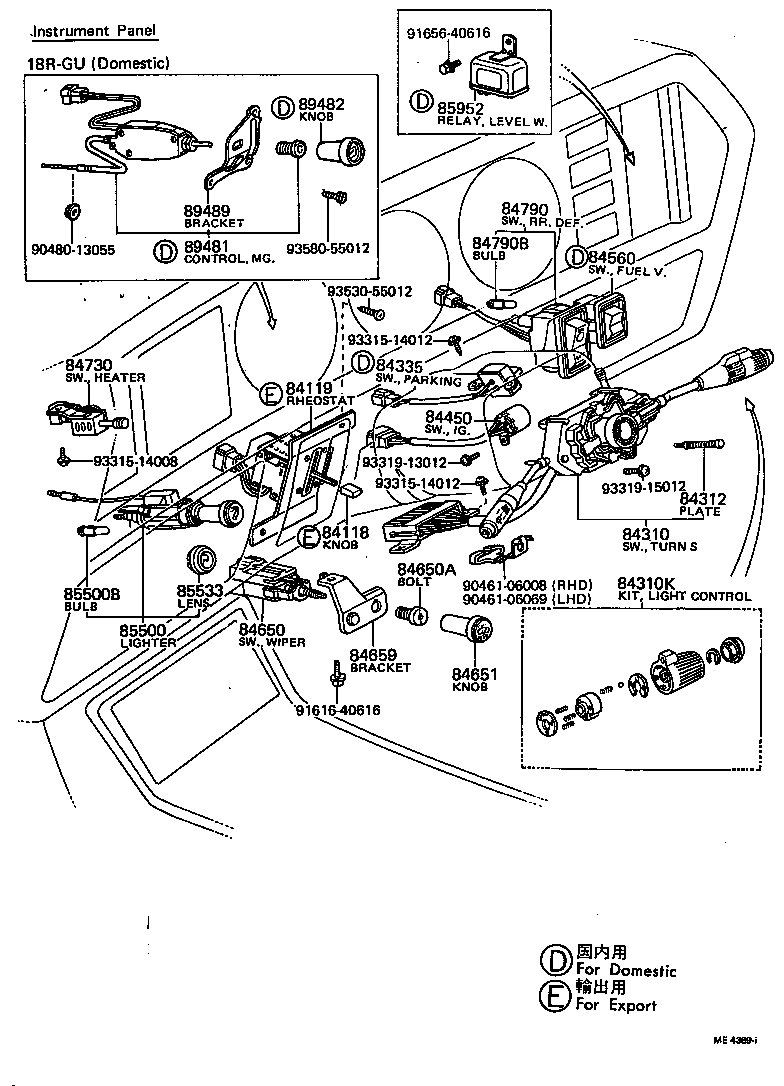

84310 - SWITCH ASSY, TURN SIGNAL
84310-20250

RT100,104,11#..LHD

 1
84310K - SWITCH KIT, LIGHT CONTROL
04841-30131

RT100,104,11#..LHD

TOKAIRIKA

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-20110

RT10#,11#

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-20061

RT100,104,110,114..DLX

 1
85500-20060

RT10#,110,112,114..DLX

 1
85500B - BULB, CIGARETTE LIGHTER
90981-11011

RT10#,110,112,114..DLX

12V 3W

 1
90981-11011

RT100,104,110,114..DLX

12V 3W

 1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-20010

RT10#,110,112,114..DLX

 1
85533-20010

RT100,104,110,114..DLX

 1
Common parts
90461-06008
90461-06069
90480-13055
91616-40616
91656-40616
93315-14008
93315-14012
93319-13012
93319-15012
93530-55012
93580-55012

(7308-7905)

Click highlighted areas on diagram

diagram 83301 83302 83320 83361 83361 84095 84095 84231 84231 84232 84232 84232A 84233 84233B 84234 84234B 84235 8423620010 84340 84380 89425 89437 89443 89444 9017908123 9017908196 9020108131 9020108131 9043008252 9046310338 9056014425 9165140014 9165140612 9165160614 9331914010 9412040800 9412040800 9412040800 9412040800 9412040800 9412041000 9453100800 9453100800
Part # Description Qty Price

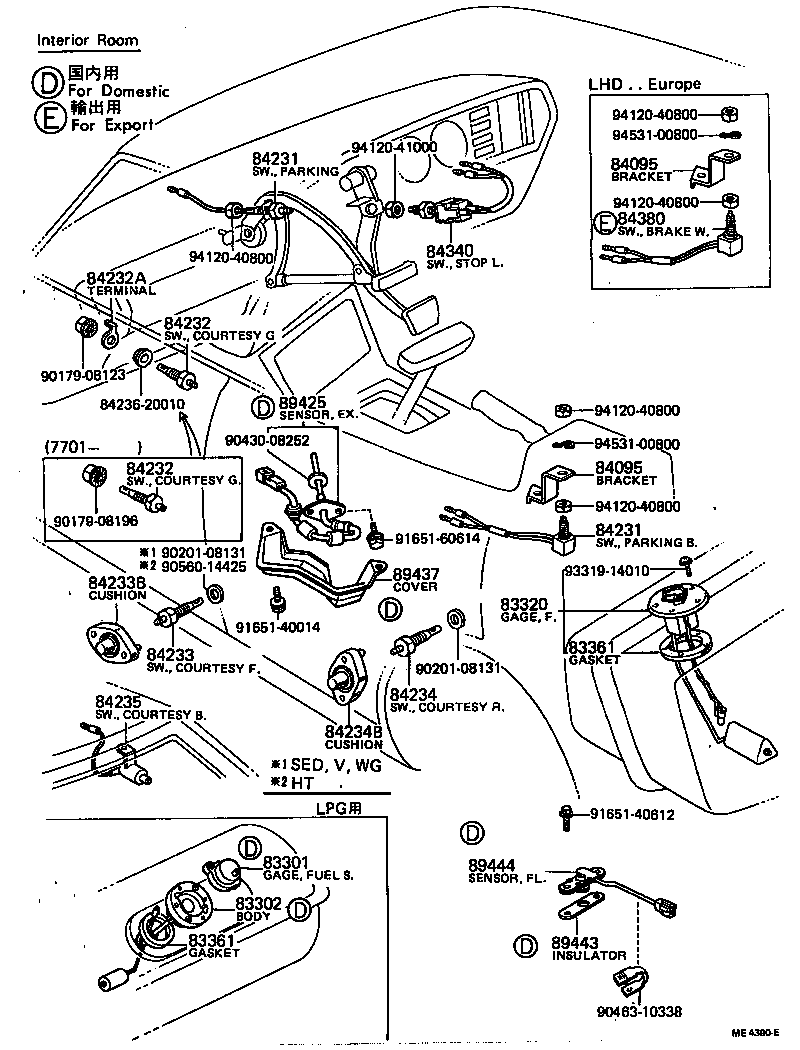

83361 - GASKET, FUEL SENDER GAGE
83361-20030

RT10#,11#

 1
83361 - GASKET, FUEL SENDER GAGE
83361-20030

RT10#,11#

 1
84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH
84956-20030

RT10#,11#..LHD

 1
84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH
84956-20030

RT10#,11#..LHD

 1
84231 - SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE)
84380-30010

RT102,110,116..LHD..4F

 1
84231 - SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE)
84380-30010

RT102,110,116..LHD..4F

 1
84232 - SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX)
84231-20020

RT10#,110,112,114..DLX

 1
84232 - SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX)
84231-20020

RT10#,110,112,114..DLX

 1
84232A - TERMINAL, COURTESY SWITCH (FOR GLOVE BOX)
84235-20010

RT10#,110,112,114..DLX

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84230-20080

RT110,112,114

 2
84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR)
84234-20020

RT110,112,114

 2
84340 - SWITCH ASSY, STOP LAMP
84340-10012

RT10#,11#

 1
Common parts
84236-20010
90179-08123
90179-08196
90201-08131
90430-08252
90463-10338
90560-14425
91651-40014
91651-40612
91651-60614
93319-14010
94120-40800
94120-41000
94531-00800

(7308-7905)

Click highlighted areas on diagram

diagram 83420 83420 83420 83420 83420 83420 83420 83420 83420 83420 89427 89427 89427 89427 89427 89427 89427 89427
Part # Description Qty Price

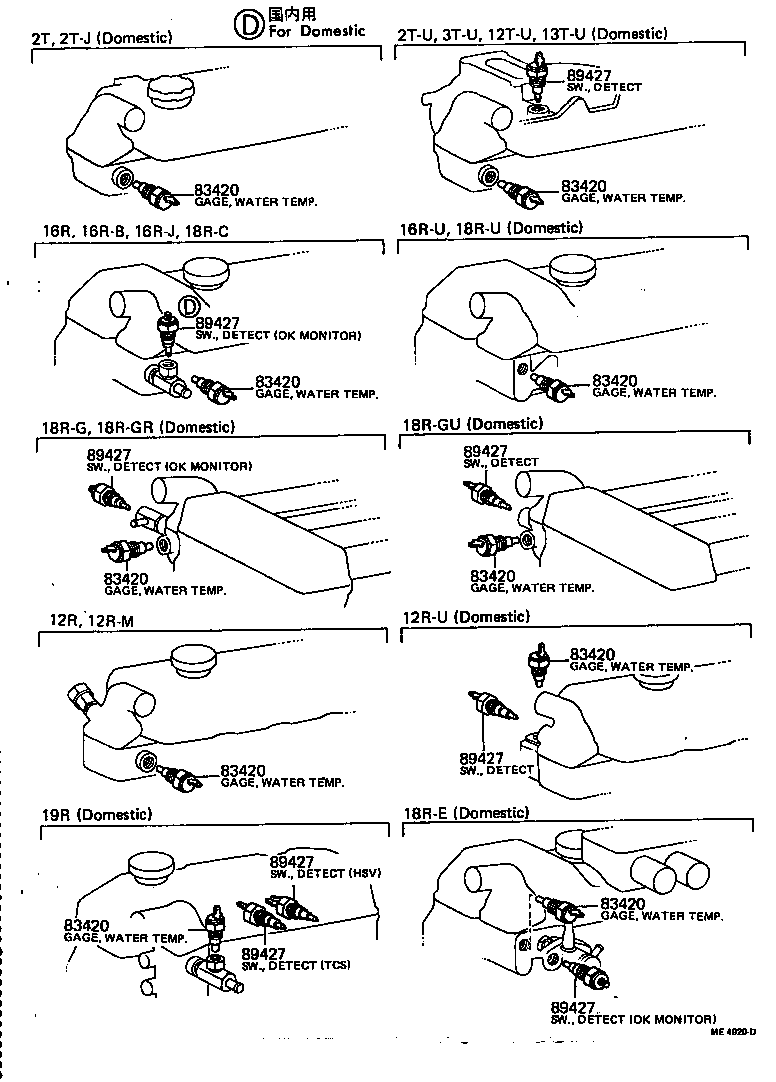

83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20011

RT10#,11#

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20011

RT10#,11#

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20011

RT10#,11#

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20011

RT10#,11#

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20011

RT10#,11#

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20011

RT10#,11#

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20011

RT10#,11#

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20011

RT10#,11#

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20011

RT10#,11#

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20011

RT10#,11#

 1
