RT110L-KDM (1975)
Toyota Corona
Production
Nov 1975
-
Jan 1977
Engine
12RM
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7308-7905)

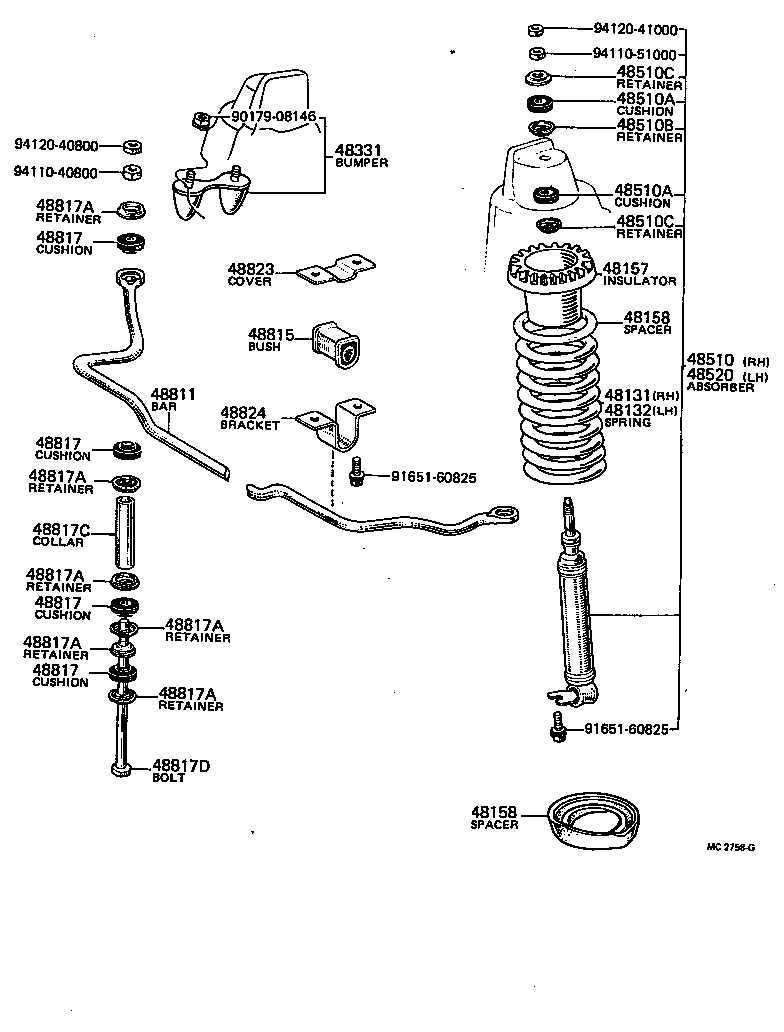

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-20281 |
RT104,110,114 |
1 | ||
| 48131-20272 |
RT110 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-20281 |
RT104,110,114 |
1 | ||
| 48131-20272 |
RT110 |
1 | ||
| 48157 - INSULATOR, FRONT COIL SPRING, UPPER | ||||
| 48157-20020 |
RT10#,11# |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-29025 |
RT10#,11# |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48500-29115 |
RT10#,11# |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01002 |
RT10#,11# |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01002 |
RT10#,11# |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02034 |
RT10#,11# |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02031 |
RT10#,11# |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02031 |
RT10#,11# |
4 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48500-29115 |
RT10#,11# |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-20140 |
RT102,104,11# |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-20100 |
RT102,104,11# |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30010 |
RT10#,11# |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30010 |
RT10#,11# |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30010 |
RT10#,11# |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30010 |
RT10#,11# |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
RT10#,11# ID=17.5 |
4 | ||
| 90948-02032 |
RT10#,11# ID=9 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
RT10#,11# ID=17.5 |
4 | ||
| 90948-02032 |
RT10#,11# ID=9 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
RT10#,11# ID=17.5 |
4 | ||
| 90948-02032 |
RT10#,11# ID=9 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
RT10#,11# ID=17.5 |
4 | ||
| 90948-02032 |
RT10#,11# ID=9 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
RT10#,11# ID=17.5 |
4 | ||
| 90948-02032 |
RT10#,11# ID=9 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
RT10#,11# ID=17.5 |
4 | ||
| 90948-02032 |
RT10#,11# ID=9 |
8 | ||
| 48817C - COLLAR(FOR STABILIZER BAR) | ||||
| 90387-09115 |
RT10#,11# |
2 | ||
| 48817D - BOLT(FOR FRONT STABILIZER) | ||||
| 90101-08458 |
RT10#,11# |
2 | ||
| 48823 - COVER, STABILIZER LINK(FOR FRONT) | ||||
| 48823-20040 |
RT10#,11# |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-20030 |
RT10#,11# |
2 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91651-60825 | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
