RT110L-KD (1974)
Toyota Corona
Production
Jul 1974
-
Nov 1975
Engine
12R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7308-7701)RT110,112,114

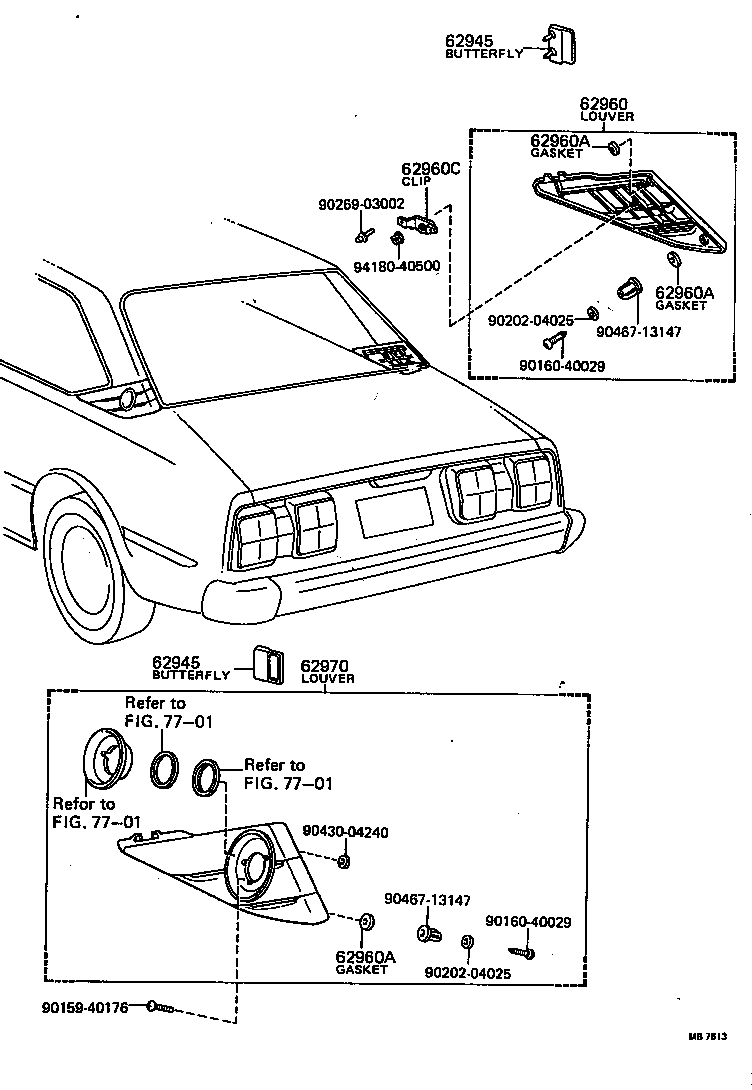

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62945 - BUTTERFLY, ROOF SIDE VENT | ||||
| 62935-20050 |
RT110,112,114 RH. |
1 | ||
| 62936-20010 |
RT110,112,114 LH. |
1 | ||
| 62945 - BUTTERFLY, ROOF SIDE VENT | ||||
| 62935-20050 |
RT110,112,114 RH. |
1 | ||
| 62936-20010 |
RT110,112,114 LH. |
1 | ||
| 62960 - LOUVER ASSY, ROOF SIDE VENT, RH | ||||
| 62905-2001001 |
RT110,112,114 D.GRAY M.,BLACK,TRIM1# |
1 | ||
| 62905-2001003 |
RT110,112,114 L.GRAY M.,GRAY,TRIM1# |
1 | ||
| 62905-2001008 |
RT110,112,114 SILVER M.,IVORY |
1 | ||
| 62960A - GASKET(FOR ROOF SIDE VENT LOUVER) | ||||
| 90430-09241 |
RT110,112,114 T=2.5 |
2 | ||
| 90430-04240 |
RT110,112,114 T=3 |
2 | ||
| 62960A - GASKET(FOR ROOF SIDE VENT LOUVER) | ||||
| 90430-09241 |
RT110,112,114 T=2.5 |
2 | ||
| 90430-04240 |
RT110,112,114 T=3 |
2 | ||
| 62960A - GASKET(FOR ROOF SIDE VENT LOUVER) | ||||
| 90430-09241 |
RT110,112,114 T=2.5 |
2 | ||
| 90430-04240 |
RT110,112,114 T=3 |
2 | ||
| 62960C - CLIP, ROOF SIDE VENT LOUVER | ||||
| 62956-20020 |
RT110,112,114 |
1 | ||
| 62970 - LOUVER ASSY, ROOF SIDE VENT, LH | ||||
| 62906-2001003 |
RT110,112,114 L.GRAY M.,GRAY,TRIM1# |
1 | ||
| 62906-2001001 |
RT110,112,114 D.GRAY M.,BLACK,TRIM1# |
1 | ||
| 62906-2001008 |
RT110,112,114 SILVER M.,IVORY |
1 | ||
| Common parts | ||||
| 90159-40176 | ||||
| 90160-40029 | ||||
| 90202-04025 | ||||
| 90269-03002 | ||||
| 90430-04240 | ||||
| 90467-13147 | ||||
| 94180-40500 | ||||
| Linked diagrams | ||||
| 7701 | ||||
