RT104L-KRF (1975)

Toyota Corona

Production Sep 1975 - May 1979
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7701)

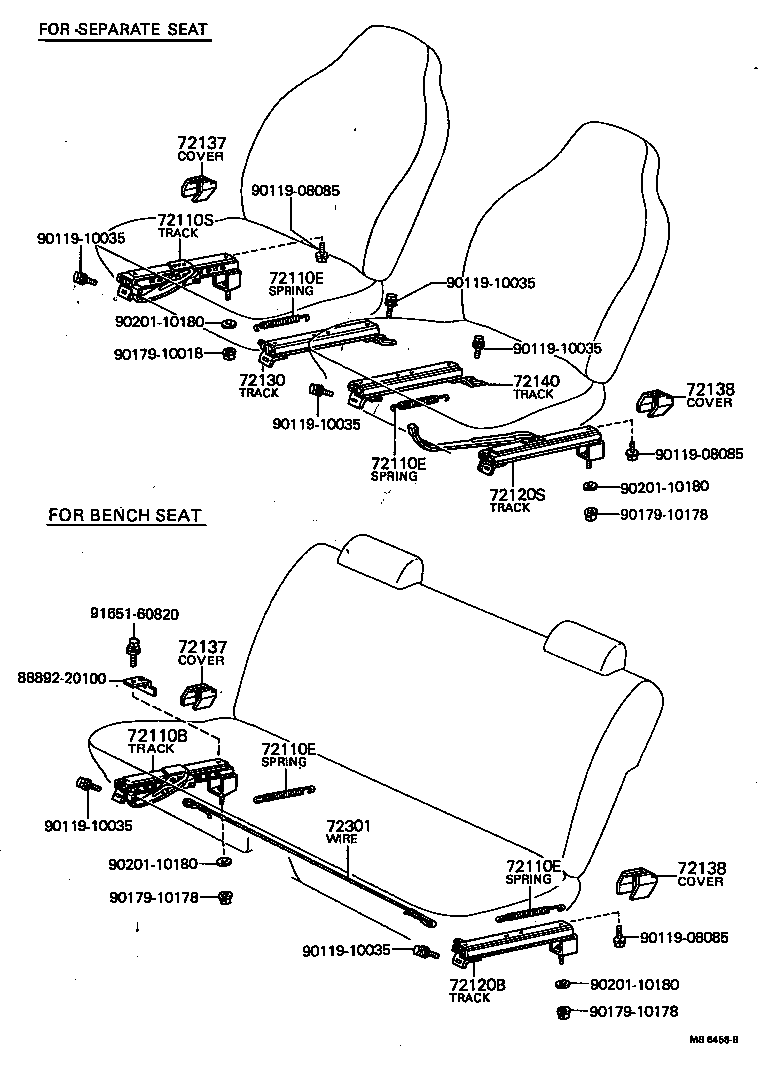

Click highlighted areas on diagram

diagram 7170920010 72110B 72110E 72110E 72110E 72110E 72110S 72120B 72120S 72130 72140 72311 72311 72311 9010511037 9010511055 9011908079 9011908079 9011908086 9011908086 9011910154 9011912151 9011912151 9011912157 9011912157 9011912157 9011912197 9011912197 9020411042 9056012433 9056012433 9161161025
Part # Description Qty Price
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-18008

RT100..LHD;RT102,104,11#;RT100..RHD..4F;RT100..RHD..3H..DLX

 2
90506-20469

RT10#,11#..LHD

 2
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-18008

RT100..LHD;RT102,104,11#;RT100..RHD..4F;RT100..RHD..3H..DLX

 2
90506-20469

RT10#,11#..LHD

 2
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-18008

RT100..LHD;RT102,104,11#;RT100..RHD..4F;RT100..RHD..3H..DLX

 2
90506-20469

RT10#,11#..LHD

 2
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-18008

RT100..LHD;RT102,104,11#;RT100..RHD..4F;RT100..RHD..3H..DLX

 2
90506-20469

RT10#,11#..LHD

 2
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72110-20180

RT10#,116,117,118..LHD

 1
72110-20181

RT100..LHD;RT100..RHD..4F;RT102,104,116,118;RT100..RHD..3H..DLX

 1
72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72120-20140

RT100,104,116,118..LHD

 1
72120-20141

RT100..LHD;RT100..RHD..4F;RT102,104,116,118;RT100..RHD..3H..DLX

 1
72120-20140

RT100..RHD..4F..STD;RT100,104,110,112,116..LHD

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-20040

RT10#,116,117,118..LHD

 1
72130-20041

RT100..LHD;RT102,104,11#;RT100..RHD..4F;RT100..RHD..3H..DLX

 1
72140 - TRACK ASSY, LH SEAT, INNER
72140-20031

RT100..LHD;RT102,104,11#;RT100..RHD..4F;RT100..RHD..3H..DLX

 1
72140-20030

RT100,104,116,118..LHD

 1
72311 - WIRE, FRONT SEAT TRACK CONTROL
72301-20090

RT10#,11#..LHD

FOR L/WALK IN

 2
72311 - WIRE, FRONT SEAT TRACK CONTROL
72301-20090

RT10#,11#..LHD

FOR L/WALK IN

 2
72311 - WIRE, FRONT SEAT TRACK CONTROL
72301-20090

RT10#,11#..LHD

FOR L/WALK IN

 2
Common parts
71709-20010
90105-11037
90105-11055
90119-08079
90119-08086
90119-10154
90119-12151
90119-12157
90119-12197
90204-11042
90560-12433
91611-61025

(7701-7905)

Click highlighted areas on diagram

diagram 72110B 72110E 72110E 72110E 72110E 72110S 72120B 72120S 72130 72137 72137 72138 72138 72140 72301 8889220100 9011908085 9011908085 9011908085 9011910035 9011910035 9011910035 9011910035 9011910035 9011910035 9017910018 9017910178 9017910178 9017910178 9020110180 9020110180 9020110180 9020110180 9165160820
Part # Description Qty Price
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-18008

RT100..LHD;RT102,104,11#;RT100..RHD..4F;RT100..RHD..3H..DLX

 2
90506-20469

RT10#,11#..LHD

 2
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-18008

RT100..LHD;RT102,104,11#;RT100..RHD..4F;RT100..RHD..3H..DLX

 2
90506-20469

RT10#,11#..LHD

 2
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-18008

RT100..LHD;RT102,104,11#;RT100..RHD..4F;RT100..RHD..3H..DLX

 2
90506-20469

RT10#,11#..LHD

 2
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-18008

RT100..LHD;RT102,104,11#;RT100..RHD..4F;RT100..RHD..3H..DLX

 2
90506-20469

RT10#,11#..LHD

 2
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72110-20180

RT10#,116,117,118..LHD

 1
72110-20181

RT100..LHD;RT100..RHD..4F;RT102,104,116,118;RT100..RHD..3H..DLX

 1
72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72120-20140

RT100,104,116,118..LHD

 1
72120-20141

RT100..LHD;RT100..RHD..4F;RT102,104,116,118;RT100..RHD..3H..DLX

 1
72120-20140

RT100..RHD..4F..STD;RT100,104,110,112,116..LHD

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-20040

RT10#,116,117,118..LHD

 1
72130-20041

RT100..LHD;RT102,104,11#;RT100..RHD..4F;RT100..RHD..3H..DLX

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-2001005

RT10#,11#

BEIGE,BEIGE,TRIM4#

 1
72137-2001001

RT10#,11#

BLACK,BLACK,TRIM1#,2#

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-2001005

RT10#,11#

BEIGE,BEIGE,TRIM4#

 1
72137-2001001

RT10#,11#

BLACK,BLACK,TRIM1#,2#

 1
72138 - COVER, SEAT TRACK, OUTER LH
72138-2001001

RT10#,11#

BLACK,BLACK,TRIM1#,2#

 1
72138-2001005

RT10#,11#

BEIGE,BEIGE,TRIM4#

 1
72138 - COVER, SEAT TRACK, OUTER LH
72138-2001001

RT10#,11#

BLACK,BLACK,TRIM1#,2#

 1
72138-2001005

RT10#,11#

BEIGE,BEIGE,TRIM4#

 1
72140 - TRACK ASSY, LH SEAT, INNER
72140-20031

RT100..LHD;RT102,104,11#;RT100..RHD..4F;RT100..RHD..3H..DLX

 1
72140-20030

RT100,104,116,118..LHD

 1
Common parts
88892-20100
90119-08085
90119-10035
90179-10018
90179-10178
90201-10180
91651-60820
