RT104L-KRF (1975)

Toyota Corona

Production Sep 1975 - May 1979
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7701)

Click highlighted areas on diagram

diagram 55805 55806 55810 55810B 55819A 55819A 55820 55862 55862 55887 55887 9351015016 9354015014 9354015014
Part # Description Qty Price
55805 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH
55804-20040

RT10#,11#..LHD

 1
55804-20040

RT100,11#..LHD;RT104..LHD..EUG;RT104..LHD..GEN;RT104..3FC..SDN

 1
55806 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH
55803-20040

RT10#,11#..LHD

 1
55803-20040

RT100,11#..LHD;RT104..LHD..EUG;RT104..LHD..GEN;RT104..3FC..SDN

 1
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55820-20050

RT10#,11#..LHD

 1
55081-20020

RT100,11#..LHD;RT104..LHD..EUG;RT104..LHD..GEN;RT104..3FC..SDN

 1
55084-20020

RT100,104,11#..LHD

FOR W/COOLER

 1
55810B - COVER, SIDE VENTILATOR
55877-20020

RT100,104,11#

FOR W/COOLER

 2
55828-20040

RT10#,11#

FOR W/COOLER

 2
55819A - SPRING, TENSION(FOR SIDE VENTILATOR CONTROL ROD)
90506-07471

RT10#,11#

 2
55819A - SPRING, TENSION(FOR SIDE VENTILATOR CONTROL ROD)
90506-07471

RT10#,11#

 2
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55823-20061

RT100,11#..LHD;RT104..LHD..EUG;RT104..LHD..GEN;RT104..3FC..SDN

 1
55810-20060

RT10#,11#..LHD

 1
55862 - BOOT, SIDE VENTILATOR
55863-20010

RT10#,11#

 2
55862 - BOOT, SIDE VENTILATOR
55863-20010

RT10#,11#

 2
55887 - KNOB, SIDE VENTILATOR BUTTERFLY CONTROL
55887-20020

RT10#,11#

 2
55887 - KNOB, SIDE VENTILATOR BUTTERFLY CONTROL
55887-20020

RT10#,11#

 2
Common parts
93510-15016
93540-15014

(7701-7905)LHD

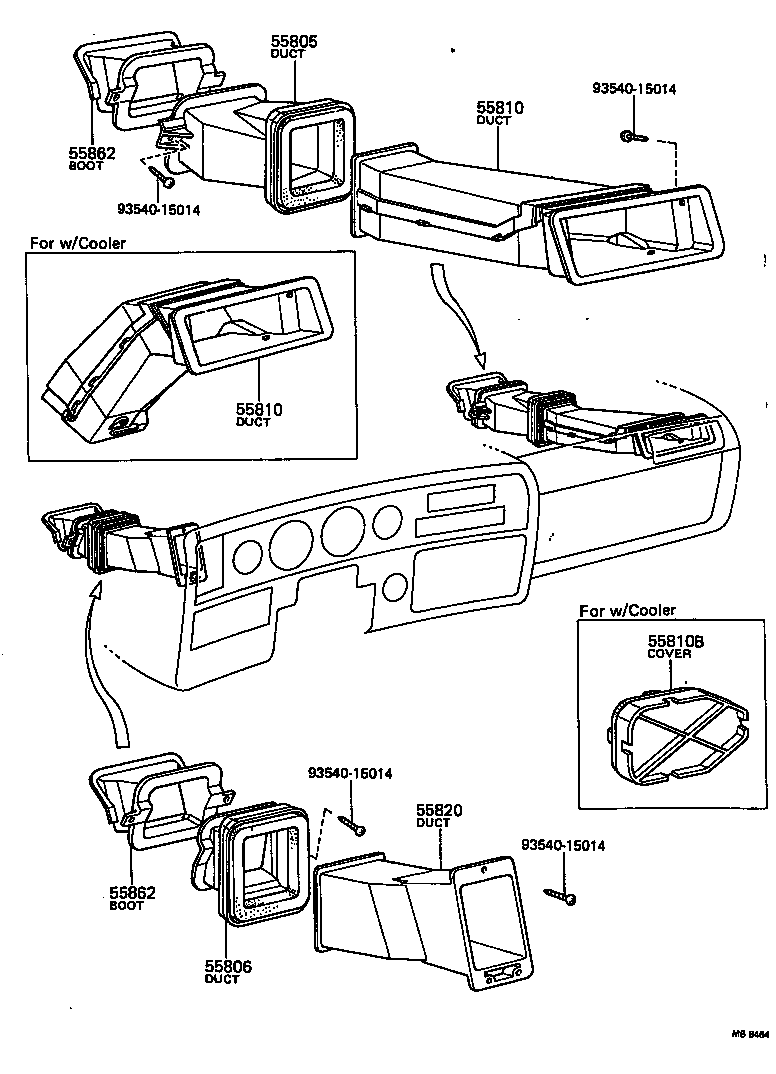

Click highlighted areas on diagram

diagram 55805 55806 55810 55810 55810B 55820 55862 55862 9354015014 9354015014 9354015014 9354015014
Part # Description Qty Price
55805 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH
55804-20040

RT10#,11#..LHD

 1
55804-20040

RT100,11#..LHD;RT104..LHD..EUG;RT104..LHD..GEN;RT104..3FC..SDN

 1
55806 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH
55803-20040

RT10#,11#..LHD

 1
55803-20040

RT100,11#..LHD;RT104..LHD..EUG;RT104..LHD..GEN;RT104..3FC..SDN

 1
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55820-20050

RT10#,11#..LHD

 1
55081-20020

RT100,11#..LHD;RT104..LHD..EUG;RT104..LHD..GEN;RT104..3FC..SDN

 1
55084-20020

RT100,104,11#..LHD

FOR W/COOLER

 1
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55820-20050

RT10#,11#..LHD

 1
55081-20020

RT100,11#..LHD;RT104..LHD..EUG;RT104..LHD..GEN;RT104..3FC..SDN

 1
55084-20020

RT100,104,11#..LHD

FOR W/COOLER

 1
55810B - COVER, SIDE VENTILATOR
55877-20020

RT100,104,11#

FOR W/COOLER

 2
55828-20040

RT10#,11#

FOR W/COOLER

 2
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55823-20061

RT100,11#..LHD;RT104..LHD..EUG;RT104..LHD..GEN;RT104..3FC..SDN

 1
55810-20060

RT10#,11#..LHD

 1
55862 - BOOT, SIDE VENTILATOR
55863-20010

RT10#,11#

 2
55862 - BOOT, SIDE VENTILATOR
55863-20010

RT10#,11#

 2
Common parts
93540-15014
