RT104L-KDFW (1974)

Toyota Corona

Production Sep 1974 - Sep 1975
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)16R,18R#

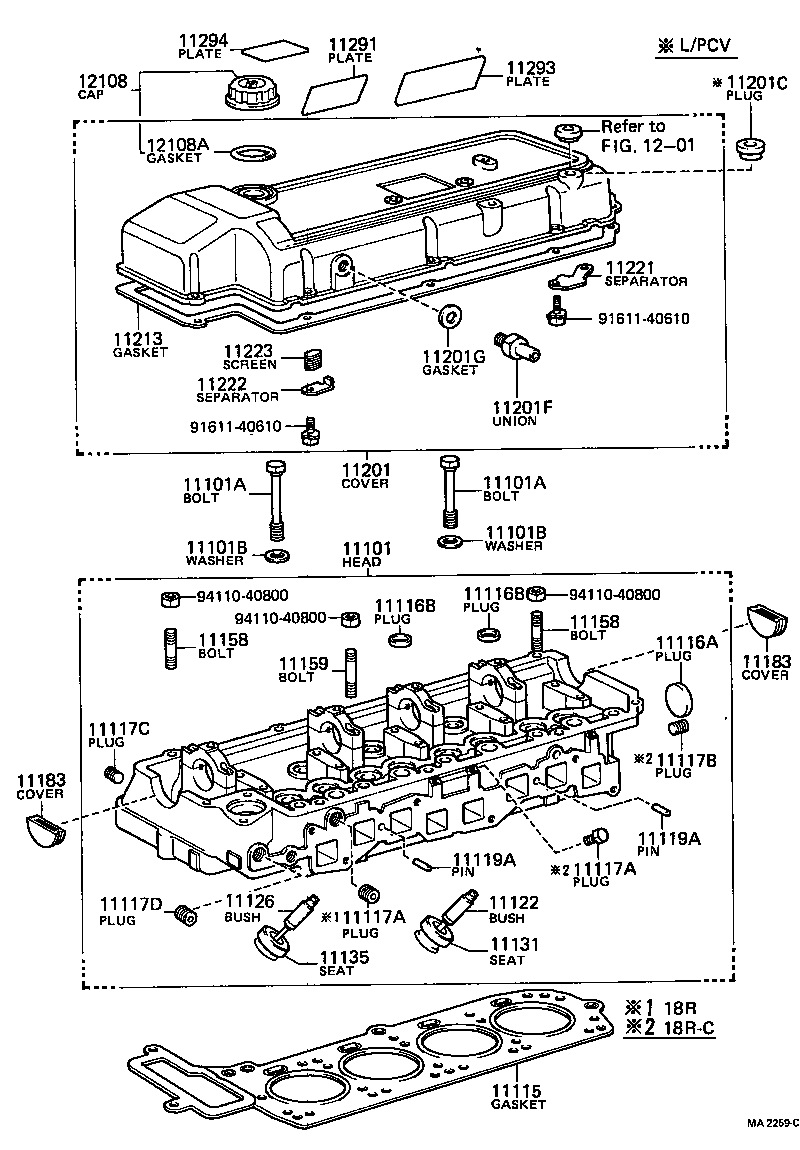

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101B 11101B 11115 11116A 11116B 11116B 11117A 11117A 11117B 11117C 11117D 11119A 11119A 11122 11126 11131 11135 11158 11158 11159 11183 11183 11201 11201C 11201F 11201G 11213 11221 11222 11223 11291 11293 11294 1201 12108 12108A 9161140610 9161140610 9411040800 9411040800 9411040800
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-39165

16R,18R..RT102,104,112,117,118..ARL,EUR,GEN

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02030

16R,18R..RT102,104,112,114,117,118

12-1.25PX114-24

 5
90910-02031

16R,18R..RT102,104,112,114,117,118

12-1.25PX82.5-24

 5
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02030

16R,18R..RT102,104,112,114,117,118

12-1.25PX114-24

 5
90910-02031

16R,18R..RT102,104,112,114,117,118

12-1.25PX82.5-24

 5
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-12118

16R,18R..RT102,104,112,114,117,118

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-12118

16R,18R..RT102,104,112,114,117,118

 10
11115 - GASKET, CYLINDER HEAD
11115-36020

16R,18R..RT102,104,112,114,117,118

 1
11116A - PLUG, TIGHT, NO.1
90331-35014

16R,18R..RT102,104,112,114,117,118

OD=35

 1
11116B - PLUG, TIGHT, NO.2
90331-20037

16R,18R..RT102,104,112,114,117,118

OD=20

 7
11116B - PLUG, TIGHT, NO.2
90331-20037

16R,18R..RT102,104,112,114,117,118

OD=20

 7
11119A - PIN, STRAIGHT, NO.1
90250-08054

12R,16R,18R..RT10#,11#

L=23,OD=8,L=23,OD=8

 2
11119A - PIN, STRAIGHT, NO.1
90250-08054

12R,16R,18R..RT10#,11#

L=23,OD=8,L=23,OD=8

 2
11122 - BUSH, INTAKE VALVE GUIDE
11123-33011

16R,18R..RT102,104,112,114,117,118

O/S 0.05

 4
11122-33011

16R,18R..RT102,104,112,114,117,118

STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11126-33011

16R,18R..RT102,104,112,114,117,118

STD

 4
11127-33011

16R,18R..RT102,104,112,114,117,118

O/S 0.05

 4
11131 - SEAT, INTAKE VALVE
11132-36010

16R,18R..RT102,104,112,114,117,118

O/S 0.03

 4
11131-36010

16R,18R..RT102,104,112,114,117,118

STD

 4
11135 - SEAT, EXHAUST VALVE
11135-34012

16R,18R..RT102,104,112,114,117,118

STD

 4
11136-34020

16R,18R..RT102,104,112,114,117,118

O/S 0.03

 4
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
90116-08009

16R,18R..RT102,104,112,114,117,118

L=33,S=13&13

 9
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
90116-08009

16R,18R..RT102,104,112,114,117,118

L=33,S=13&13

 9
11159 - BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
90116-08201

16R,18R..RT102,104,112,114,117,118

L=38,S=14&14

 8
11183 - PLUG, SEMICIRCULAR
11183-33010

16R,18R..RT102,104,112,114,117,118

 2
11183 - PLUG, SEMICIRCULAR
11183-33010

16R,18R..RT102,104,112,114,117,118

 2
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-39135

16R,18R..RT102,104,112,117,118..ARL,EUR,GEN

W/PCV

 1
11201F - UNION(FOR POSITIVE CRANKCASE VENTILATION)
90404-16108

16R,18R..RT102,104,112,117,118..ARL,EUR,GEN

 1
11201G - GASKET(FOR POSITIVE CRANKCASE VENTILATION)
90430-16175

16R,18R..RT102,104,112,117,118..ARL,EUR,GEN

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-33010

16R,18R..RT102,104,112,114,117,118

 1
11221 - SEPARATOR, CYLINDER HEAD COVER, NO.1
11221-34010

16R,18R..RT102,104,112,117,118..ARL,EUR,GEN

 1
11222 - SEPARATOR, CYLINDER HEAD COVER, NO.2
11222-34010

16R,18R..RT102,104,112,117,118..ARL,EUR,GEN

 1
11223 - SCREEN,CYLINDER HEAD COVER
11223-33010

16R,18R..RT102,104,112,117,118..ARL,EUR,GEN

 1
11293 - PLATE, ENGINE CAUTION & ENGINE NAME
11293-34080

18R..RT104,114..DLX

 1
12108 - CAP SUB-ASSY, OIL FILLER
12108-49015

16R,18R..RT102,104,112,114,117,118

 1
12108A - GASKET(FOR OIL FILLER CAP)
90301-44049

16R,18R..RT102,104,112,114,117,118

 1
Common parts
91611-40610
94110-40800
Linked diagrams
1201
