RT104L-KDF (1975)
Toyota Corona
Production
Sep 1975
-
Aug 1978
Engine
18R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7308-7905)RT10#,110,112,114

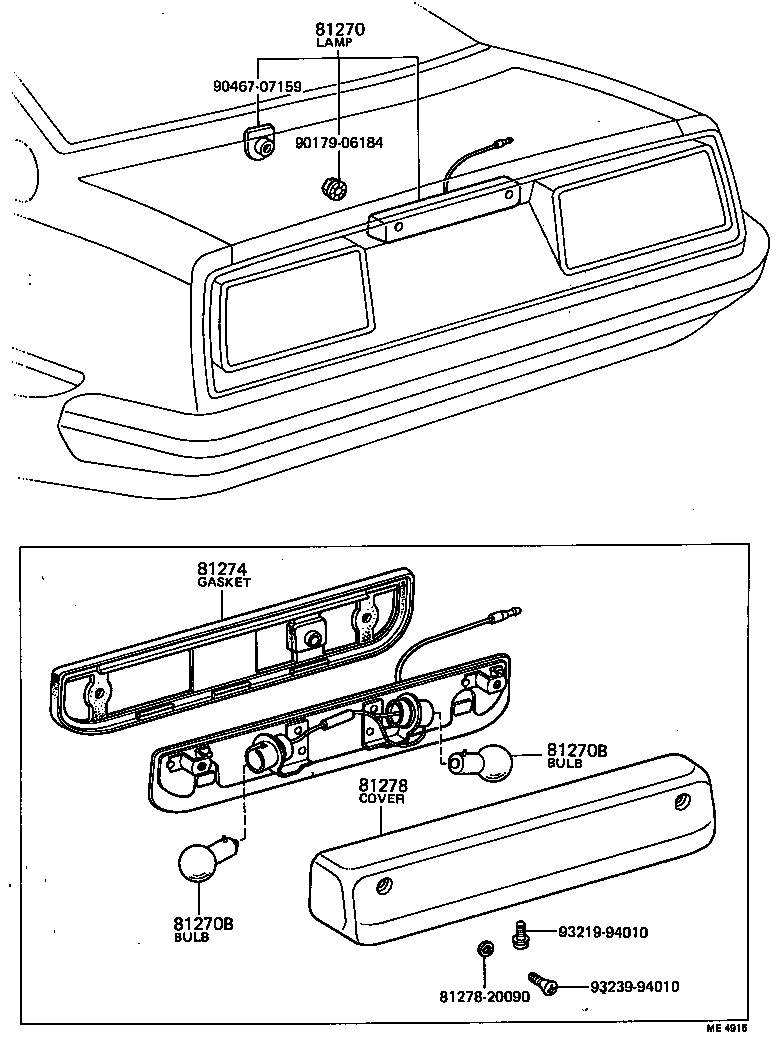

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-29165 |
RT10#,110,112,114 |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-11100 |
RT10#,11# 12V 10W,12V 10W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-11100 |
RT10#,11# 12V 10W,12V 10W |
2 | ||
| 81274 - GASKET, LICENSE PLATE LAMP BODY | ||||
| 81274-20090 |
RT10#,110,112,114 |
1 | ||
| 81278 - COVER, LICENSE PLATE LAMP | ||||
| 81276-20090 |
RT10#,110,112,114 |
1 | ||
| Common parts | ||||
| 81278-20090 | ||||
| 90179-06184 | ||||
| 90467-07159 | ||||
| 93219-94010 | ||||
| 93239-94010 | ||||
