RT104L-KDF (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)4F

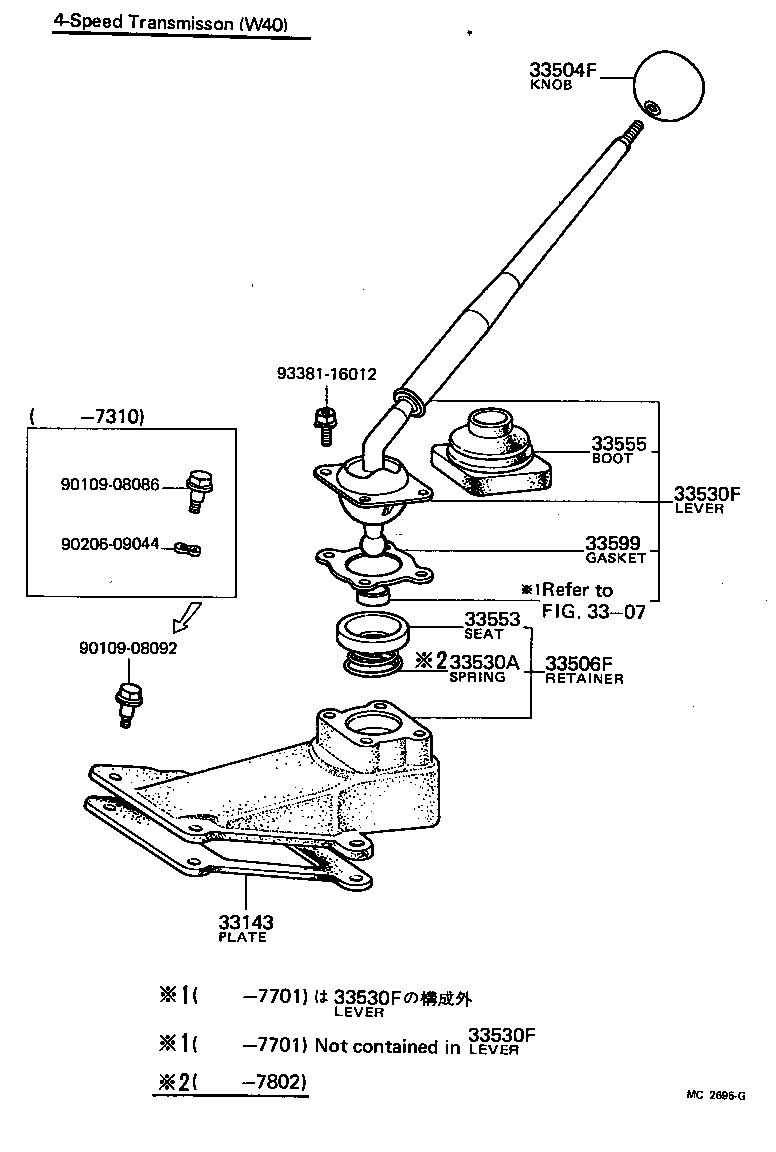

Click highlighted areas on diagram

diagram 3307 33143 33504F 33506F 33530A 33530F 33553 33555 33599 9010908086 9010908092 9020609044 9338116012
Part # Description Qty Price
33143 - PLATE, EXTENSION HOUSING OIL BAFFLE
33143-20030

RT10#,11#..4F,5F

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-31010

RT10#,110,112,116,117,118..4F

 1
33504-31010

RT100,102,11#;RT104..3FC..SA;RT104..ARL,EUR,GEN

 1
33504-31011

RT100,102,11#..4F;RT104..4F..(ARL,EUR,GEN)

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-20010

RT10#,11#..4F

 1
33530A - SPRING, COMPRESSION (FOR SHIFT LEVER)
90502-18057

RT10#,11#..4F,5F

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-20140

RT10#,11#..LHD..4F

 1
33553 - SEAT, SHIFT LEVER SPRING
33556-22010

RT10#,11#..4F,5F

 1
33555 - BOOT, SHIFT LEVER
33555-31011

RT10#,11#..4F,5F

 1
33599 - GASKET, CONTROL SHIFT LEVER RETAINER, NO.2
33584-31020

RT10#,11#..4F,5F

 1
Common parts
90109-08086
90109-08092
90206-09044
93381-16012
Linked diagrams
3307
