RT104L-HRF (1975)
Toyota Corona
(7308-7905)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

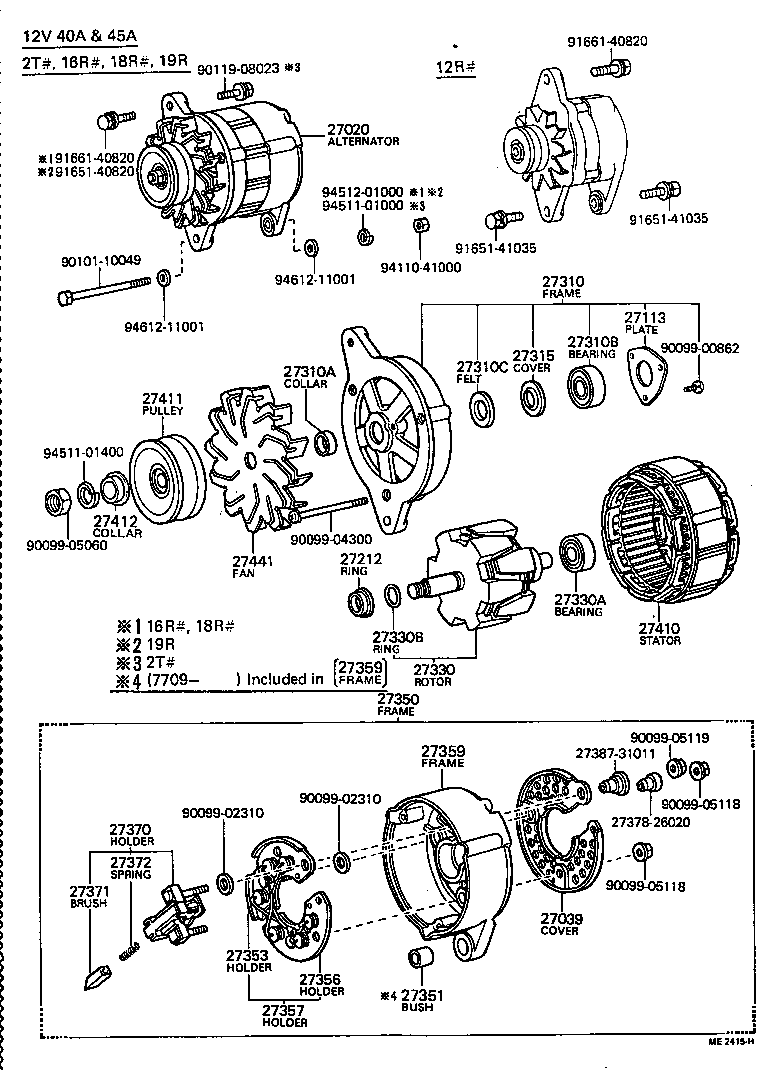

| 27020 - ALTERNATOR ASSY | ||||
| 27020-36021 |
16R,18R..RT102,104,112,114,117,118..ARL,GEN,SA 12V 40A |
1 | ||
| 27020-36041 |
16R,18R..RT102,104,118..EUR,GEN 12V 45A |
1 | ||
| 27020-36043 |
18R#..RT104,114,118..ARL,EUR,GEN 12V 45A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-26020 |
12R#,16R,18R..RT10#,11# 12V 40 & 45A |
1 | ||
| 27039-26020 |
16R,18R..RT102,104,114,118 12V 40 & 45A |
1 | ||
| 27039-26020 |
16R,18R..RT102,104,114,118 12V 45A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-31011 |
12R#,16R,18R..RT10#,11# 12V 40 & 45A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
12R,16R,18R..RT10#,11# 12V 40 & 45A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-31011 |
12RM,16R,18R..RT10#,11# 12V 40 & 45A |
1 | ||
| 27310-31011 |
16R,18R..RT102,104,114,118 12V 45A |
1 | ||
| 27310-31011 |
12R#,16R,18R..RT10#,11# 12V 40 & 45A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-19075 |
16R,18R..RT102,104,112,114,117,118 12V 40 & 45A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10013 |
16R,18R..RT102,104,114,118 6203Z |
1 | ||
| 90099-10013 |
12R#,16R,18R..RT10#,11# 6203Z |
1 | ||
| 90099-10013 |
16R,18R..RT102,104,114,118 6203Z |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02004 |
12R#,16R,18R..RT10#,11# 12V 40 & 45A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27313-31011 |
12R#,16R,18R..RT10#,11# 12V 40 & 45A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-33010 |
12R,16R,18R..RT10#,11#..ARL,GEN,PHL,SA 12V 40A |
1 | ||
| 27330-43012 |
16R,18R..RT102,104,118..EUR,GEN 12V 45A |
1 | ||
| 27330-43012 |
16R,18R..RT102,104,114,118 12V 45A |
1 | ||
| 27330-43012 |
18R#..RT104,114,118..ARL,EUR,GEN 12V 45A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 97110-06201 |
12R#,16R,18R..RT10#,11# 6201Z |
1 | ||
| 97110-06201 |
16R,18R..RT102,104,114,118 6201Z |
1 | ||
| 97110-06201 |
16R,18R..RT102,104,114,118 6201ZZ |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-26022 |
16R,18R..RT102,104,114,118 12V 45A |
1 | ||
| 27350-26022 |
16R,18R..RT102,104,114,118 12V 40 & 45A |
1 | ||
| 27350-26020 |
12R#,16R,18R..RT10#,11# 12V 40 & 45A |
1 | ||
| 27350-36071 |
12R,16R,18R..RT10#,11# 12V 40 & 45A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-25010 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-26020 |
16R,18R..RT102,104,114,118 12V 40 & 45A |
1 | ||
| 27353-26020 |
12R#,16R,18R..RT10#,11# 12V 40 & 45A |
1 | ||
| 27353-26020 |
16R,18R..RT102,104,114,118 12V 45A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-26020 |
16R,18R..RT102,104,114,118 12V 40 & 45A |
1 | ||
| 27356-26020 |
12R#,16R,18R..RT10#,11# 12V 40 & 45A |
1 | ||
| 27356-26020 |
16R,18R..RT102,104,114,118 12V 45A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-26020 |
16R,18R..RT102,104,114,118 12V 45A |
1 | ||
| 27357-26020 |
12R#,16R,18R..RT10#,11# 12V 40 & 45A |
1 | ||
| 27357-26020 |
16R,18R..RT102,104,114,118 12V 40 & 45A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-41041 |
16R,18R..RT102,104,114,118 12V 45A |
1 | ||
| 27359-26020 |
12R,16R,18R..RT10#,11# 12V 40 & 45A |
1 | ||
| 27359-41041 |
16R,18R..RT102,104,114,118 12V 40 & 45A |
1 | ||
| 27359-44032 |
12R,16R,18R..RT10#,11# 12V 40 & 45A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-26020 |
12R,16R,18R..RT10#,11# 12V 40 & 45A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
12R#,16R,18R#..RT10#,11# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
12R#,16R,18R#..RT10#,11# |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-26020 |
12R,16R,18R..RT10#,11#..ARL,GEN,PHL,SA 12V 40A |
1 | ||
| 27410-26030 |
16R,18R..RT102,104,118..EUR,GEN 12V 45A |
1 | ||
| 27410-26030 |
18R#..RT104,114,118..ARL,EUR,GEN 12V 45A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31012 |
16R,18R..RT102,104,112,114,117,118 12V 40 & 45A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44030 |
16R,18R..RT102,104,114,118 12V 45A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-31011 |
16R,18R..RT102,104,112,114,117,118 12V 40 & 45A |
1 | ||
| Common parts | ||||
| 27378-26020 | ||||
| 27387-31011 | ||||
| 90099-00862 | ||||
| 90099-02310 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90119-08023 | ||||
| 91651-40820 | ||||
| 91651-41035 | ||||
| 91661-40820 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
| 94612-11001 | ||||
