RT104L-HRF (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7701)16R,18R# ; (7701-7704)18RC ; (7701-7905)16R,18R..RT102,104,114..SA

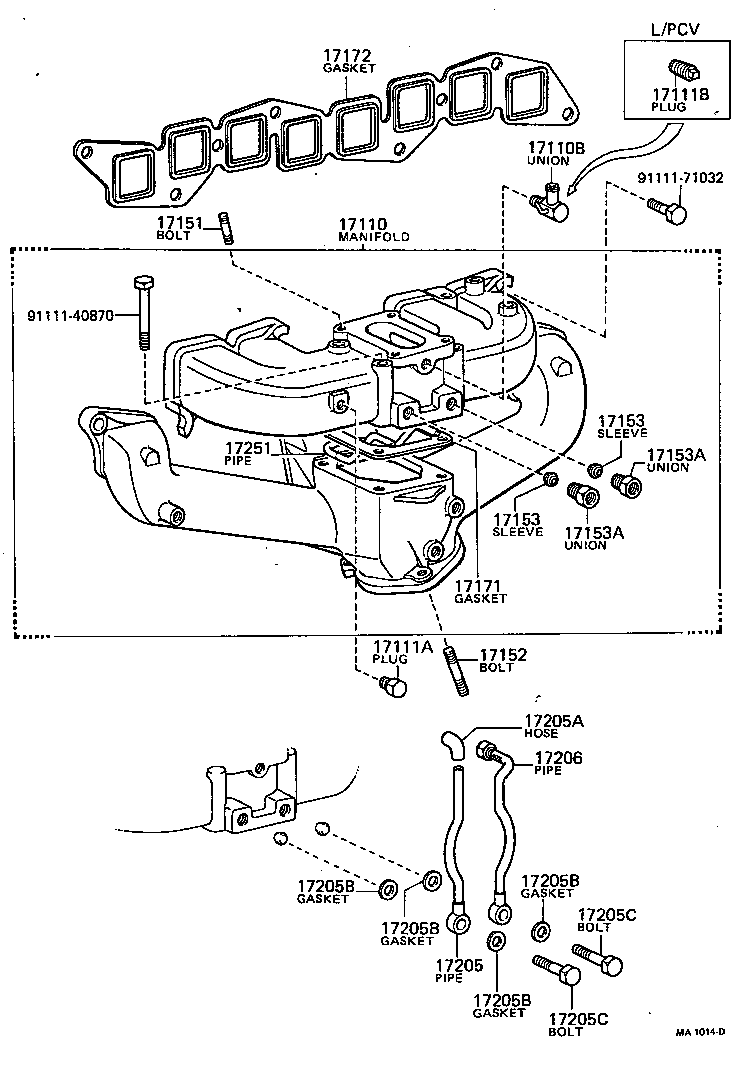

Click highlighted areas on diagram

diagram 17110 17110B 17111A 17111B 17151 17152 17153 17153 17153A 17153A 17171 17172 17205 17205A 17205B 17205B 17205B 17205B 17205C 17205C 17206 17251 9111140870 9111171032
Part # Description Qty Price
17110 - MANIFOLD ASSY
17110-34050

18R#..RT104,114,118..ARL,EUR,GEN

 1
17110-34050

16R,18R..RT102,104,112,117,118..ARL,EUR,GEN

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90407-10040

16R,18R..RT102,104,112,117,118..ARL,EUR,GEN

 1
90407-10040

16R,18R..RT102,104,114,118

 1
90407-10040

18R..RT104,114,118..ARL,EUR,GEN

 1
17111A - PLUG, NO.1
90072-34107

16R,18R..RT102,104,112,114,117,118

 2
17111B - PLUG, NO.2
90345-52002

18R#..RT104,114,118

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92132-40828

16R,18R#..RT102,104,114,118

 4
92132-40835

16R,18R..RT102,104,114,118

 4
92132-40828

16R,18R..RT102,104,112,114,117,118

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
92122-41022

16R,18R#..RT102,104,114,118

 3
92122-41022

16R,18R..RT102,104,112,114,117,118

 3
90116-10007

16R,18R#..RT102,104,114,118

L=39,S=14&19

 3
90116-10007

16R,18R..RT102,104,114,118

L=39,S=14&19

 3
17153 - SLEEVE, BALL(FOR AUTOMATIC CHOKE STOVE PIPE)
90410-06003

12R,16R,18R..RT10#,11#

 2
90410-06003

12R,16R,18R#..RT10#,11#

 2
90410-06003

16R,18R#..RT102,104,114,118

 2
17153 - SLEEVE, BALL(FOR AUTOMATIC CHOKE STOVE PIPE)
90410-06003

12R,16R,18R..RT10#,11#

 2
90410-06003

12R,16R,18R#..RT10#,11#

 2
90410-06003

16R,18R#..RT102,104,114,118

 2
17153A - UNION(FOR AUTOMATIC CHOKE STOVE PIPE)
90404-14022

12R,16R,18R#..RT10#,11#

 2
90404-14022

16R,18R#..RT102,104,114,118

 2
90404-14022

12R,16R,18R..RT10#,11#

 2
17153A - UNION(FOR AUTOMATIC CHOKE STOVE PIPE)
90404-14022

12R,16R,18R#..RT10#,11#

 2
90404-14022

16R,18R#..RT102,104,114,118

 2
90404-14022

12R,16R,18R..RT10#,11#

 2
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-40010

16R,18R#..RT102,104,114,118

 1
17171-34020

18R..RT104,114,118..ARL,EUR,GEN

 1
17171-40010

16R,18R..RT102,104,112,114,117,118

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-33010

16R,18R#..RT102,104,114,118

 1
17172-33010

16R,18R..RT102,104,114,118

 1
17172-33010

16R,18R..RT102,104,112,114,117,118

 1
17205 - PIPE, AUTOMATIC CHOKE STOVE INLET
17205-34010

16R,18R#..RT102,104,114,118

 1
17205-33010

16R,18R..RT102,104,112,114,117,118

 1
17205A - HOSE(FOR AUTOMATIC CHOKE STOVE PIPE)
90910-05017

12R,16R,18R..RT10#,11#

 1
90910-05017

12R,16R,18R#..RT10#,11#

 1
90910-05017

16R,18R#..RT102,104,114,118

 1
17205B - GASKET(FOR AUTOMATIC CHOKE STOVE PIPE)
90430-08033

12R,16R,18R#..RT10#,11#

 4
90430-08033

16R,18R#..RT102,104,114,118

 4
90430-08033

12R,16R,18R..RT10#,11#

 4
17205B - GASKET(FOR AUTOMATIC CHOKE STOVE PIPE)
90430-08033

12R,16R,18R#..RT10#,11#

 4
90430-08033

16R,18R#..RT102,104,114,118

 4
90430-08033

12R,16R,18R..RT10#,11#

 4
17205B - GASKET(FOR AUTOMATIC CHOKE STOVE PIPE)
90430-08033

12R,16R,18R#..RT10#,11#

 4
90430-08033

16R,18R#..RT102,104,114,118

 4
90430-08033

12R,16R,18R..RT10#,11#

 4
17205B - GASKET(FOR AUTOMATIC CHOKE STOVE PIPE)
90430-08033

12R,16R,18R#..RT10#,11#

 4
90430-08033

16R,18R#..RT102,104,114,118

 4
90430-08033

12R,16R,18R..RT10#,11#

 4
17205C - BOLT, UNION(FOR AUTOMATIC CHOKE STOVE PIPE)
90401-08012

12R,16R,18R..RT10#,11#

 2
90401-08012

16R,18R#..RT102,104,114,118

 2
90401-08012

12R,16R,18R#..RT10#,11#

 2
17205C - BOLT, UNION(FOR AUTOMATIC CHOKE STOVE PIPE)
90401-08012

12R,16R,18R..RT10#,11#

 2
90401-08012

16R,18R#..RT102,104,114,118

 2
90401-08012

12R,16R,18R#..RT10#,11#

 2
17206 - PIPE, AUTOMATIC CHOKE STOVE OUTLET
17206-34020

16R,18R#..RT102,104,114,118

 1
17206-34010

16R,18R..RT102,104,112,114,117,118

 1
17251 - PIPE,AUTOMATIC CHOKE STOVE
17251-33020

12R,16R,18R..RT10#,11#

 1
17251-33021

16R,18R#..RT102,104,114,118

 1
17251-33021

12R,16R,18R#..RT10#,11#

 1
Common parts
91111-40870
91111-71032
