RT104L-HDFW (1974)

Toyota Corona

Production Sep 1974 - Sep 1975
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7701)

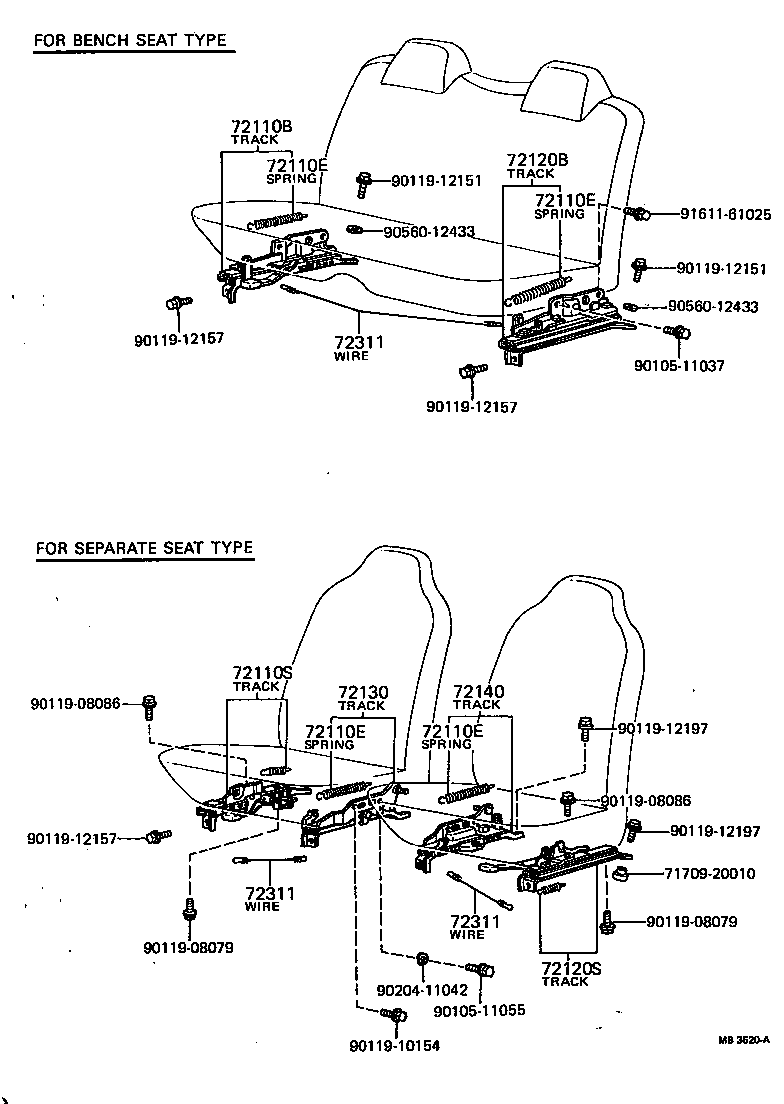

Click highlighted areas on diagram

diagram 7170920010 72110B 72110E 72110E 72110E 72110E 72110S 72120B 72120S 72130 72140 72311 72311 72311 9010511037 9010511055 9011908079 9011908079 9011908086 9011908086 9011910154 9011912151 9011912151 9011912157 9011912157 9011912157 9011912197 9011912197 9020411042 9056012433 9056012433 9161161025
Part # Description Qty Price
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-20469

RT10#,11#..LHD

 2
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-20469

RT10#,11#..LHD

 2
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-20469

RT10#,11#..LHD

 2
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-20469

RT10#,11#..LHD

 2
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72110-20180

RT10#,116,117,118..LHD

 1
72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72120-20140

RT100..RHD..4F..STD;RT100,104,110,112,116..LHD

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-20040

RT10#,116,117,118..LHD

 1
72311 - WIRE, FRONT SEAT TRACK CONTROL
72301-20090

RT10#,11#..LHD

FOR L/WALK IN

 2
72311 - WIRE, FRONT SEAT TRACK CONTROL
72301-20090

RT10#,11#..LHD

FOR L/WALK IN

 2
72311 - WIRE, FRONT SEAT TRACK CONTROL
72301-20090

RT10#,11#..LHD

FOR L/WALK IN

 2
Common parts
71709-20010
90105-11037
90105-11055
90119-08079
90119-08086
90119-10154
90119-12151
90119-12157
90119-12197
90204-11042
90560-12433
91611-61025
