RT104L-HDFW (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)RT102,104 ; (7308-7905)RT100,110,114,116,118..ARL,PHL,SA

Click highlighted areas on diagram

diagram 37101A 37101A 37110 37110A 37302 37315 37331 37401 37401A 37401A 37402 37402 9411050800 9451200800
Part # Description Qty Price
37110 - SHAFT ASSY, PROPELLER
37110-20160

RT102,104..EUR

L=764.5,OD=65

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90101-08214

RT10#,11#

*8-1.25PX25-12

 4
37401 - SPIDER KIT, UNIVERSAL JOINT
04371-22010

RT10#,11#

 3
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90521-29072

RT10#,11#

T=2.475-2.525,T=2.475-2.525

 8
90521-29070

RT10#,11#

T=2.375-2.425,T=2.375-2.425

 8
90521-29073

RT10#,11#

T=2.525-2.575,T=2.525-2.575

 8
90521-29071

RT10#,11#

T=2.425-2.475,T=2.425-2.475

 8
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90521-29072

RT10#,11#

T=2.475-2.525,T=2.475-2.525

 8
90521-29070

RT10#,11#

T=2.375-2.425,T=2.375-2.425

 8
90521-29073

RT10#,11#

T=2.525-2.575,T=2.525-2.575

 8
90521-29071

RT10#,11#

T=2.425-2.475,T=2.425-2.475

 8
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-22020

RT10#,11#

 12
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-22020

RT10#,11#

 12
Common parts
94110-50800
94512-00800

(7308-7701)RT102,104..EUR

Click highlighted areas on diagram

diagram 37100 37110 37110A 37110A 37120 37120A 37120B 37230 37401 37401A 37401A 37401A 37401A 37402 37402 37402 37402 9017910178 9020110082 9020110159 9411050800 9411050800 9451200800 9451200800
Part # Description Qty Price
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-20060

RT104..3FC..EUR

L=1371,OD=65

 1
37100-20020

RT102,104..EUR

L=1371,OD=65

 1
37110 - SHAFT ASSY, PROPELLER
37110-20160

RT102,104..EUR

L=764.5,OD=65

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90101-08214

RT10#,11#

*8-1.25PX25-12

 4
37110A - BOLT (FOR PROPELLER SHAFT)
90101-08214

RT10#,11#

*8-1.25PX25-12

 4
37120 - SHAFT ASSY, PROPELLER INTERMEDIATE
37120-20050

RT104..3FC..EUR

L=501.5,OD=65

 1
37120-20020

RT102,104..EUR

L=606.5,OD=65

 1
37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
90201-18182

RT102,104..EUR

OD=33.5,T=4.0

 1
37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
90179-18060

RT102,104..EUR

 1
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-20020

RT102,104..EUR

 1
37230-20031

RT104..3FC..EUR

 1
37230-20032

RT104..3FC..EUR

 1
37401 - SPIDER KIT, UNIVERSAL JOINT
04371-22010

RT10#,11#

 3
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90521-29072

RT10#,11#

T=2.475-2.525,T=2.475-2.525

 8
90521-29070

RT10#,11#

T=2.375-2.425,T=2.375-2.425

 8
90521-29073

RT10#,11#

T=2.525-2.575,T=2.525-2.575

 8
90521-29071

RT10#,11#

T=2.425-2.475,T=2.425-2.475

 8
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90521-29072

RT10#,11#

T=2.475-2.525,T=2.475-2.525

 8
90521-29070

RT10#,11#

T=2.375-2.425,T=2.375-2.425

 8
90521-29073

RT10#,11#

T=2.525-2.575,T=2.525-2.575

 8
90521-29071

RT10#,11#

T=2.425-2.475,T=2.425-2.475

 8
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90521-29072

RT10#,11#

T=2.475-2.525,T=2.475-2.525

 8
90521-29070

RT10#,11#

T=2.375-2.425,T=2.375-2.425

 8
90521-29073

RT10#,11#

T=2.525-2.575,T=2.525-2.575

 8
90521-29071

RT10#,11#

T=2.425-2.475,T=2.425-2.475

 8
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90521-29072

RT10#,11#

T=2.475-2.525,T=2.475-2.525

 8
90521-29070

RT10#,11#

T=2.375-2.425,T=2.375-2.425

 8
90521-29073

RT10#,11#

T=2.525-2.575,T=2.525-2.575

 8
90521-29071

RT10#,11#

T=2.425-2.475,T=2.425-2.475

 8
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-22020

RT10#,11#

 12
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-22020

RT10#,11#

 12
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-22020

RT10#,11#

 12
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-22020

RT10#,11#

 12
Common parts
90179-10178
90201-10082
90201-10159
94110-50800
94512-00800

(7701-7801)RT104..EUR

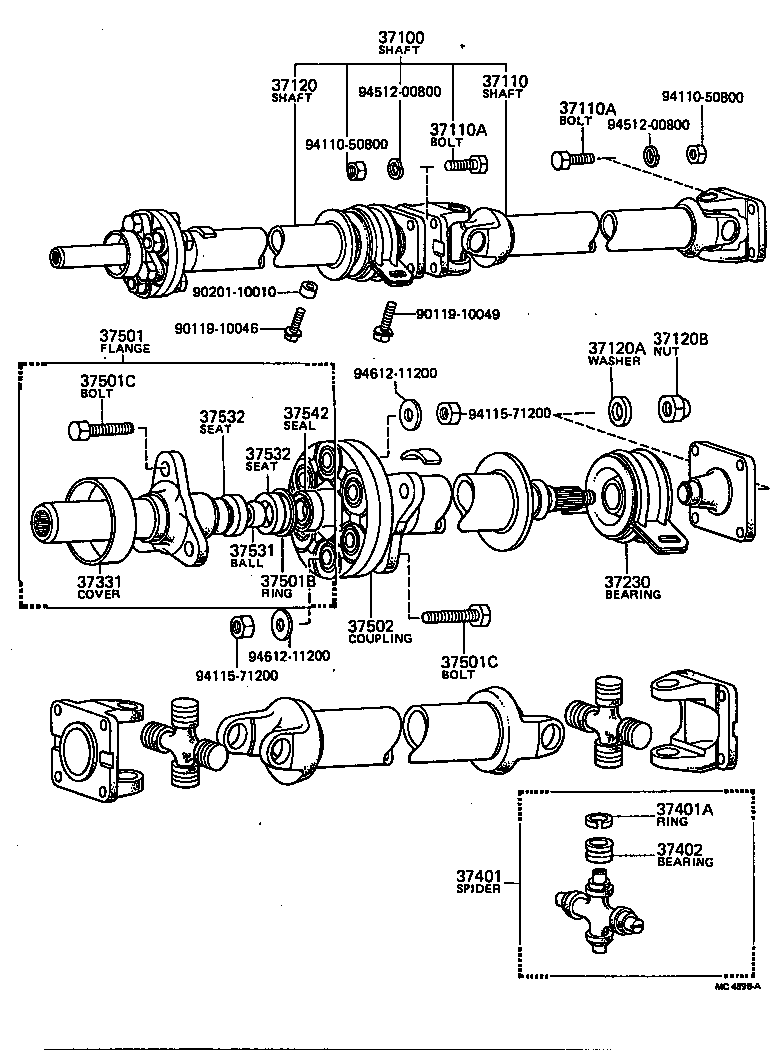

Click highlighted areas on diagram

diagram 37100 37110 37110A 37110A 37120 37120A 37120B 37230 37331 37401 37401A 37402 37501 37501B 37501C 37501C 37502 37531 37532 37532 37542 9011910046 9011910049 9020110010 9411050800 9411050800 9411571200 9411571200 9451200800 9451200800 9461211200 9461211200
Part # Description Qty Price
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-20060

RT104..3FC..EUR

L=1371,OD=65

 1
37100-20020

RT102,104..EUR

L=1371,OD=65

 1
37110 - SHAFT ASSY, PROPELLER
37110-20160

RT102,104..EUR

L=764.5,OD=65

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90101-08214

RT10#,11#

*8-1.25PX25-12

 4
37110A - BOLT (FOR PROPELLER SHAFT)
90101-08214

RT10#,11#

*8-1.25PX25-12

 4
37120 - SHAFT ASSY, PROPELLER INTERMEDIATE
37120-20050

RT104..3FC..EUR

L=501.5,OD=65

 1
37120-20020

RT102,104..EUR

L=606.5,OD=65

 1
37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
90201-18182

RT102,104..EUR

OD=33.5,T=4.0

 1
37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
90179-18060

RT102,104..EUR

 1
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-20020

RT102,104..EUR

 1
37230-20031

RT104..3FC..EUR

 1
37230-20032

RT104..3FC..EUR

 1
37401 - SPIDER KIT, UNIVERSAL JOINT
04371-22010

RT10#,11#

 3
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90521-29072

RT10#,11#

T=2.475-2.525,T=2.475-2.525

 8
90521-29070

RT10#,11#

T=2.375-2.425,T=2.375-2.425

 8
90521-29073

RT10#,11#

T=2.525-2.575,T=2.525-2.575

 8
90521-29071

RT10#,11#

T=2.425-2.475,T=2.425-2.475

 8
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-22020

RT10#,11#

 12
Common parts
90119-10046
90119-10049
90201-10010
94110-50800
94115-71200
94512-00800
94612-11200
